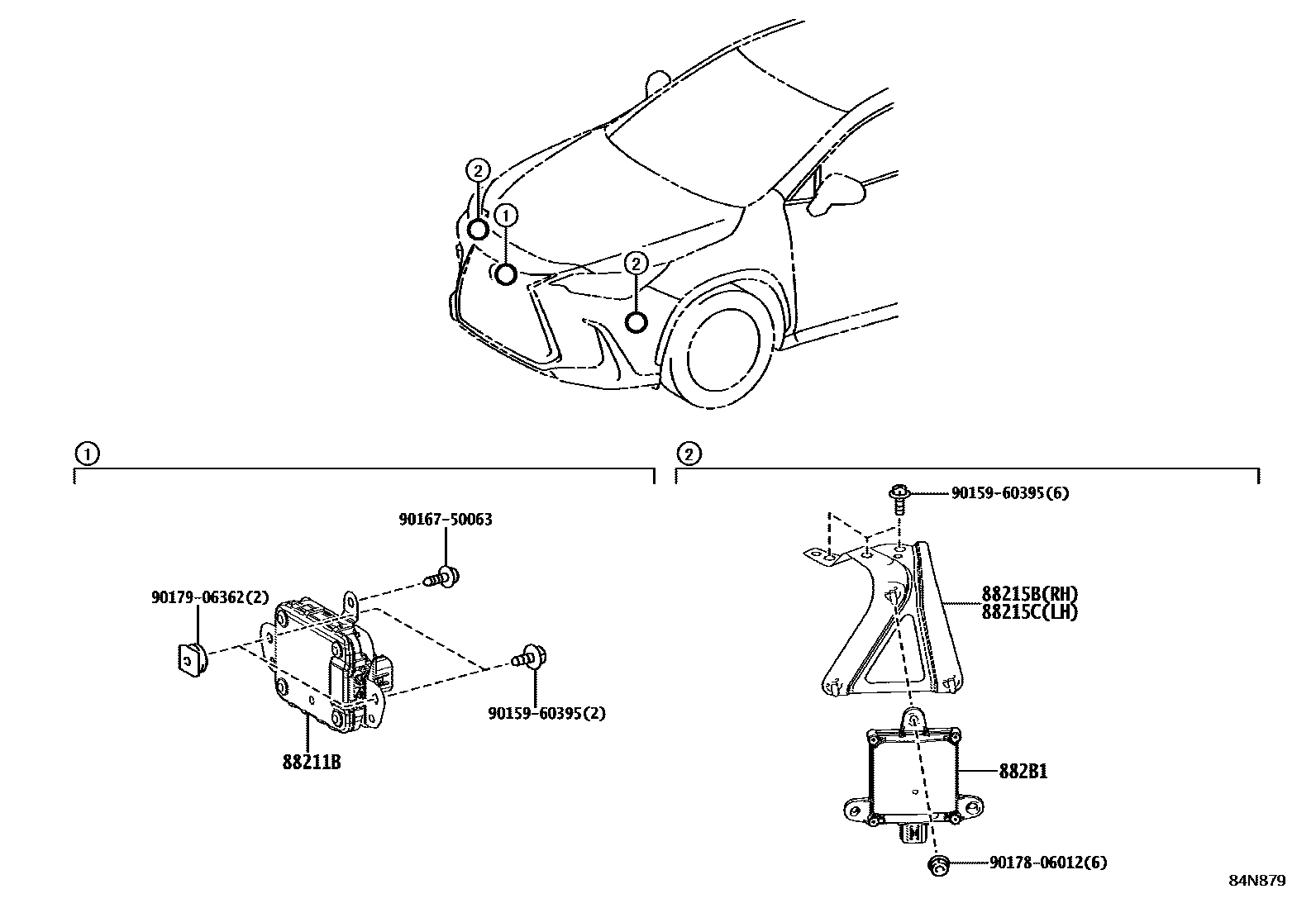

CRUISE CONTROL (AUTO DRIVE)

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-48161iAAZA20..GEN202403-202506

INDONESIA SPEC

main88210-48170iAAZH2#,MAZA20,TAZA25202403-202404

INDONESIA SPEC

main88210-48170iAAZA2#202403-202506

main88210-78020iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202405

main88210-78040iAAZA20,AAZH20..GEN202111-202307

INDONESIA SPEC

sub88210-78041

main88210-78041iAAZA20,AAZH20..GEN202308-202403

INDONESIA SPEC

88215BBRACKET, FRONT SIDE RADAR SENSOR, RH

main88215-78010iAAZH2#,TAZA25..CHI,EUR202111-202506

LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)

88215CBRACKET, FRONT SIDE RADAR SENSOR, LH

main88215-78020iAAZH2#,TAZA25..CHI,EUR202111-202506

LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)

882B1SENSOR, FRONT SIDE RADAR

main882B1-78010iAAZA20,AAZH21..CHI;AAZA25,AAZH20,25,26,TAZA25..CHI,EUR202111-202403

LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)

main882B1-78020iAAZA20..CHI;AAZA25..EUR202403-202506

LANE CHANGE ASSIST-WITH(*ARFHL & LCA & SAFE EXIT ASSIST)

9015960395

main90159-60395

9016750063

main90167-50063

9017806012

main90178-06012

9017906362

main90179-06362

8 parts on this diagram · 1 diagram in section
