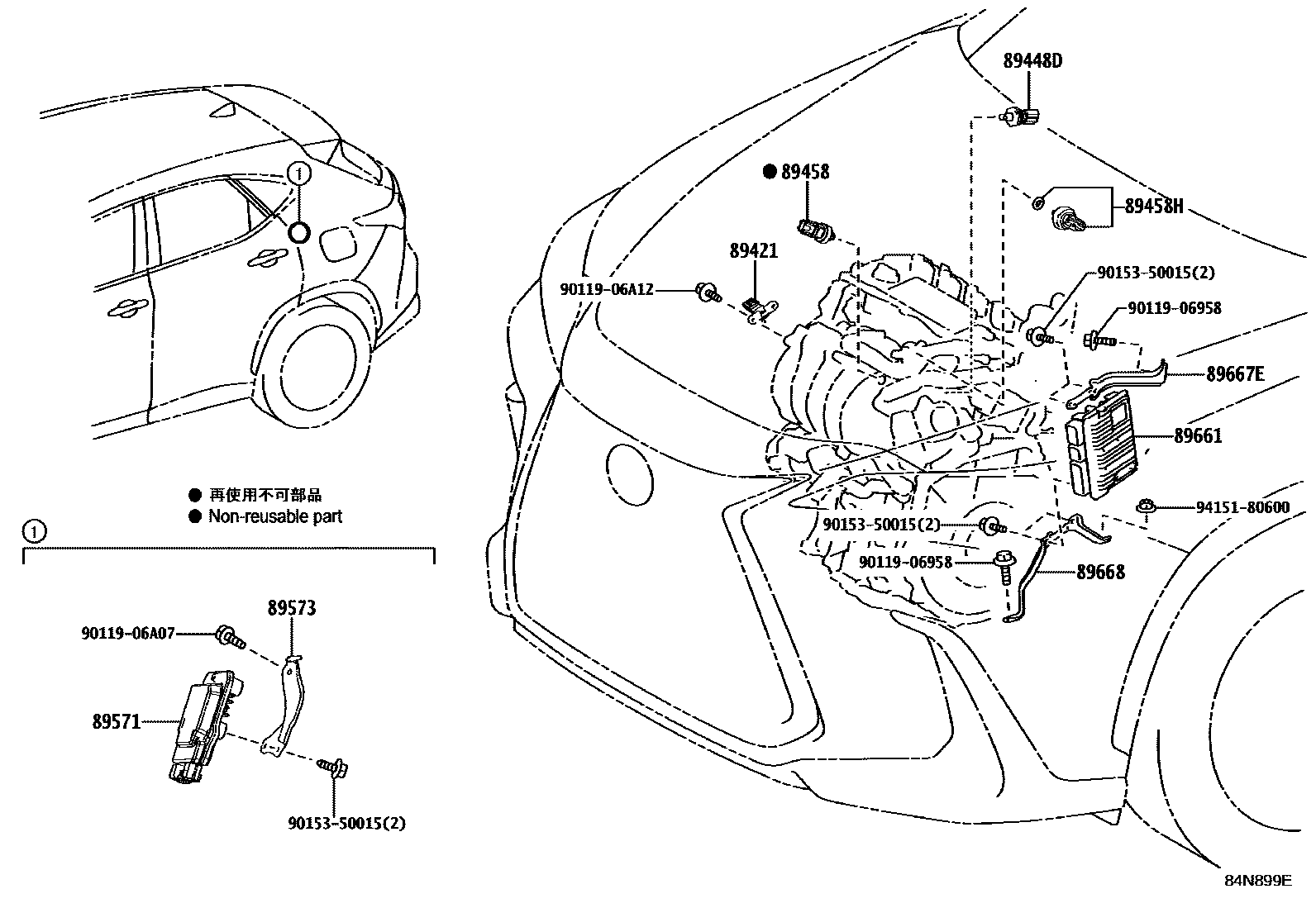

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAAZA2#202111-202506

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAAZH2#,MAZA20202111-202506

89458SENSOR, FUEL PRESSURE

main89458-33030iAAZA2#202111-202506

main89458-78030iTAZA25..EUR,GEN202111-202405

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202206

main89458-33042iAAZA2#202207-202506

89571COMPUTER, FUEL PUMP CONTROL

main89571-10010iAAZH25..GCC202111-202405

main89571-42010iAAZH25..LHD..GEN202111-202403

BRAZIL SPEC

main89571-58020iAAZA2#202111-202506

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-78020iAAZA2#202111-202506

89661COMPUTER, ENGINE CONTROL

main89661-78850iAAZH21202303-202403

DENSO,*614

main89661-78C70iAAZH26..EUR202111-202308

DENSO,*614

sub89661-78C71

main89661-78C71iAAZH26..EUR202309-202403

DENSO,*614

main89661-78C80iAAZH26..LHD202111-202308

DENSO,TAIWAN SPEC,*614

sub89661-78C81

main89661-78C80iAAZH26..GEN202111-202308

DENSO,*614

sub89661-78C81

main89661-78C81iAAZH26..GEN202309-202403

DENSO,*614

main89661-78C81iAAZH26..LHD202309-202403

DENSO,TAIWAN SPEC,*614

main89661-78C90iAAZH21202111-202303

DENSO,*614

main89661-78D20iAAZH20,25..EUR202111-202403

DENSO,*614

main89661-78D30iAAZH25..LHD..GEN202111-202303

DENSO,UKRAINE SPEC,*614

main89661-78D30iAAZH20,25..RHD..GEN202111-202303

DENSO,*614

main89661-78D30iAAZH20,25..RHD..GEN202111-202303

DENSO,AZB,GRZ SPEC,*614

main89661-78D30iAAZH20,25..RHD..GEN202111-202303

DENSO,MOROCCO SPEC,*614

main89661-78D30iAAZH20,25..RHD..GEN202111-202303

DENSO,VIETNAM SPEC,*614

main89661-78D30iAAZH20,25..RHD..GEN202111-202303

DENSO,ARGENTINA SPEC,*614

main89661-78D50iAAZH20,25..LHD..EUR202111-202303

DENSO,BRUNEI SPEC,*614

main89661-78D50iAAZH25..RHD..GEN202111-202303

DENSO,SOUTH AFRICA SPEC,*614

main89661-78D50iAAZH25..RHD..GEN202111-202303

DENSO,INDONESIA SPEC,*614

main89661-78D50iAAZH25..RHD..GEN202111-202303

DENSO,MOLDOVA SPEC,*614

main89661-78D50iAAZH25..RHD..GEN202111-202303

DENSO,CHILE SPEC,*614

main89661-78D50iAAZH25..RHD..GEN202111-202303

DENSO,*614

main89661-78D60iAAZH20,25..CHI202111-202303

DENSO,*614

main89661-78D80iTAZA25202111-202303

DENSO,*614

main89661-78E20iAAZA20..EUR,GEN202111-202403

DENSO,*614

main89661-78E30iAAZA25..RHD202111-202303

DENSO,*614

main89661-78E50iAAZA25..EUR202111-202403

DENSO,MOLDOVA SPEC,*614

main89661-78E50iAAZA25..EUR202111-202403

DENSO,CHILE SPEC,*614

main89661-78E50iAAZA25..EUR202111-202403

DENSO,*614

main89661-78E60iAAZA20..CHI202111-202303

DENSO,*614

main89661-78E80iAAZA25..EUR202111-202403

DENSO,*614

main89661-78G70iMAZA20202201-202302

DENSO,*614

sub89661-78G71

main89661-78G71iMAZA20202302-202303

DENSO

main89661-78J50iAAZH20,25..RHD..GEN202303-202405

DENSO,*614

main89661-78J60iAAZH25..LHD..GEN202303-202403

DENSO,CHILE SPEC,*614

main89661-78J60iAAZH25..LHD..GEN202303-202403

DENSO,MOLDOVA SPEC,*614

main89661-78J60iAAZH25..LHD..GEN202303-202403

DENSO,BRUNEI SPEC,*614

main89661-78J60iAAZH25..LHD..GEN202303-202403

DENSO,INDONESIA SPEC,*614

main89661-78J60iAAZH25..GCC202303-202403

DENSO,*614

main89661-78J60iAAZH25..RHD..GEN202303-202403

DENSO,SOUTH AFRICA SPEC,*614

main89661-78J70iAAZH20,25..CHI202303-202403

DENSO,*614

main89661-78J90iAAZA20..CHI202303-202403

DENSO,*614

main89661-78K10iTAZA25202303-202405

DENSO,*614

main89661-78K70iMAZA20202303-202403

DENSO,*614

main89661-78L20iAAZA20..EUR,GEN202403-202506

DENSO,*614

main89661-78L40iAAZA25..GEN202403-202506

DENSO,MOLDOVA SPEC,*614

main89661-78L40iAAZA25..EUR202403-202506

DENSO,*614

main89661-78L40iAAZA25..EUR202403-202506

DENSO,CHILE SPEC,*614

main89661-78L50iAAZA25..EUR202403-202506

DENSO,*614

main89661-78L70iAAZA20..CHI202403-202506

DENSO,*614

main89661-78M00iAAZH26..EUR202403-202507

DENSO,*614

main89661-78M10iAAZH26..LHD..EUR202403

DENSO,UKRAINE SPEC,*614

main89661-78M10iAAZH26..LHD..EUR202403

DENSO,AZB,GRZ SPEC,*614

main89661-78M10iAAZH26..LHD..EUR202403

DENSO,TAIWAN SPEC,*614

main89661-78M10iAAZH26..LHD..EUR202403

DENSO,ARGENTINA SPEC,*614

main89661-78M10iAAZH26..LHD..EUR202403

DENSO,*614

main89661-78M20iAAZH21202403

DENSO,*614

main89661-78M50iAAZH26..RHD..GEN202403

DENSO,*614

main89661-78M50iAAZH26..RHD..GEN202403

DENSO,SOUTH AFRICA SPEC,*614

main89661-78M50iAAZH26..RHD..GEN202403

DENSO,INDONESIA SPEC,*614

main89661-78M50iAAZH26..RHD..GEN202403

DENSO,CHILE SPEC,*614

main89661-78M80iAAZH20,25..EUR202403-202507

DENSO,*614

main89661-78M90iAAZH20,25..RHD..GEN202403

DENSO,VIETNAM SPEC,*614

main89661-78M90iAAZH25..LHD..GEN202403

DENSO,ARGENTINA SPEC,*614

main89661-78M90iAAZH25..LHD..GEN202403

DENSO,MOROCCO SPEC,*614

main89661-78M90iAAZH25..LHD..GEN202403

DENSO,AZB,GRZ SPEC,*614

main89661-78M90iAAZH25..LHD..GEN202403

DENSO,UKRAINE SPEC,*614

main89661-78M90iAAZH25..LHD..GEN202403

DENSO,*614

main89661-78N00iAAZH25..LHD..EUR202403

DENSO,BRUNEI SPEC,*614

main89661-78N00iAAZH25..LHD..GEN202403-202507

DENSO,*614

main89661-78N00iAAZH25..LHD..GEN202403

DENSO,CHILE SPEC,*614

main89661-78N00iAAZH25..LHD..GEN202403

DENSO,MOLDOVA SPEC,*614

main89661-78N00iAAZH25..LHD..GEN202403

DENSO,INDONESIA SPEC,*614

main89661-78N00iAAZH25..LHD..GEN202403

DENSO,MALAYSIA SPEC,*614

main89661-78N00iAAZH25..LHD..GEN202403

DENSO,SOUTH AFRICA SPEC,*614

main89661-78N10iAAZH20,25..CHI202403

DENSO,*614

main89661-78N40iTAZA25202403-202507

DENSO,*614

main89661-78N50iMAZA20202403

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33190iAAZA2#,MAZA20202111-202506

main89667-42080iAAZH25..GCC202111-202406

main89667-42081iAAZH2#202406

main89667-78020iTAZA25..EUR,GEN202111-202405

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42080iAAZA2#202111-202506

main89668-42100iAAZH25..GCC202111-202405

main89668-78030iTAZA25..GCC202111-202405

9011906958

main90119-06958

9011906A07

main90119-06A07

9011906A12

main90119-06A12

9015350015

main90153-50015

9415180600

main94151-80600

14 parts on this diagram · 4 diagrams in section
