BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 1/2 0004 1HV BATTERY 2/2 0005 1HV BATTERY 1/5 0006 1HV BATTERY 2/5 0007 1HV BATTERY 3/5 0008 1HV BATTERY 4/5 0009 1HV BATTERY 5/5

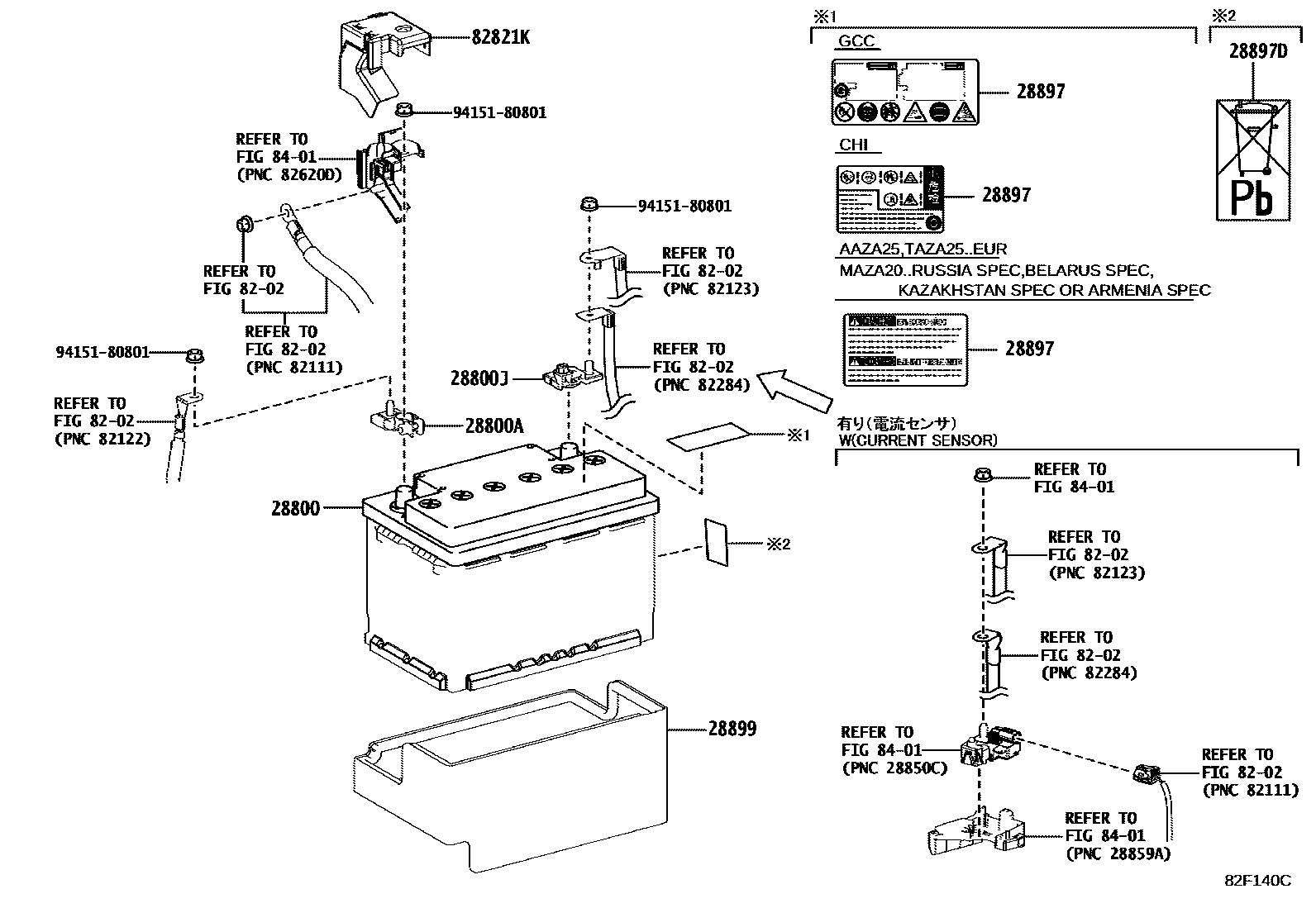

28800BATTERY

main28800-25050iA25AFKS,T24AFTS..AAZA2#,TAZA25202111-202206

LN3

sub28800-25051

main28800-25051iA25AFKS,T24AFTS..AAZA2#,TAZA25202207-202403

LN3

sub28800-25052

main28800-25052iT24AFTS..TAZA25202403-202506

LN3

main28800-31570iA25AFXS..AAZH2#202111-202206

LN2

sub28800-31571

main28800-31571iA25AFXS..AAZH2#202207-202302

LN2

sub28800-31572

main28800-31572iA25AFXS..AAZH2#202303-202403

LN2

sub28800-31573

main28800-31573iA25AFXS..AAZH25..GCC202403-202405

LN2

main28800-38160iM20AFKS..MAZA20202201-202206

LN3

sub28800-38161

main28800-38161iM20AFKS..MAZA20202207-202403

LN3

sub28800-38162

main28800-38162iM20AFKS..MAZA20202403

LN3

28800ATERMINAL, BATTERY POSITIVE

main82671-78010iA25AFKS..AAZA2#202111-202506

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061iM20AFKS..MAZA20202201-202403

28897PLATE, BATTERY CAUTION

main28897-36040iA25AFXS,T24AFTS..AAZH25,TAZA25..GCC202111-202405

main28897-38060iA25#..AAZA20,AAZH20,21,25..CHI202111-202506

main28897-38070iM20AFKS..MAZA20202403

BELARUS SPEC

main28897-38070iM20AFKS..MAZA20202403

KAZAKHSTAN SPEC

main28897-38070iM20AFKS..MAZA20202111-202403

UKRAINE SPEC

main28897-38070iM20AFKS..MAZA20202111-202403

AZB,GRZ SPEC

main28897-38070iM20AFKS..MAZA20202111-202403

TAIWAN SPEC

main28897-38070iM20AFKS..MAZA20202111-202403

VIETNAM SPEC

main28897-38070iM20AFKS..MAZA20202111-202403

MOLDOVA SPEC

main28897-38070iM20AFKS..MAZA20202403

ARMENIA SPEC

main28897-38070iT24AFTS..TAZA25..EUR202403

RUSSIA SPEC

main28897-38070iA25AFKS,T24AFTS..AAZA25,TAZA25..EUR202111-202403

CHILE SPEC

main28897-38070iA25AFKS..AAZA25..EUR202403-202506

28897DLABEL, BATTERY CAUTION

main28897-38040iA25AFXS..AAZH20,25,26..EUR202111-202403

28899INSULATOR, BATTERY

main28899-25050iA25AFKS..AAZA2#202111-202506

8202

82821KCOVER, CONNECTOR

main82821-78120iAAZA2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

main82821-78140iAAZH2#..CHI,EUR,GEN202111-202405

9415180801

main94151-80801

9 parts on this diagram · 9 diagrams in section
