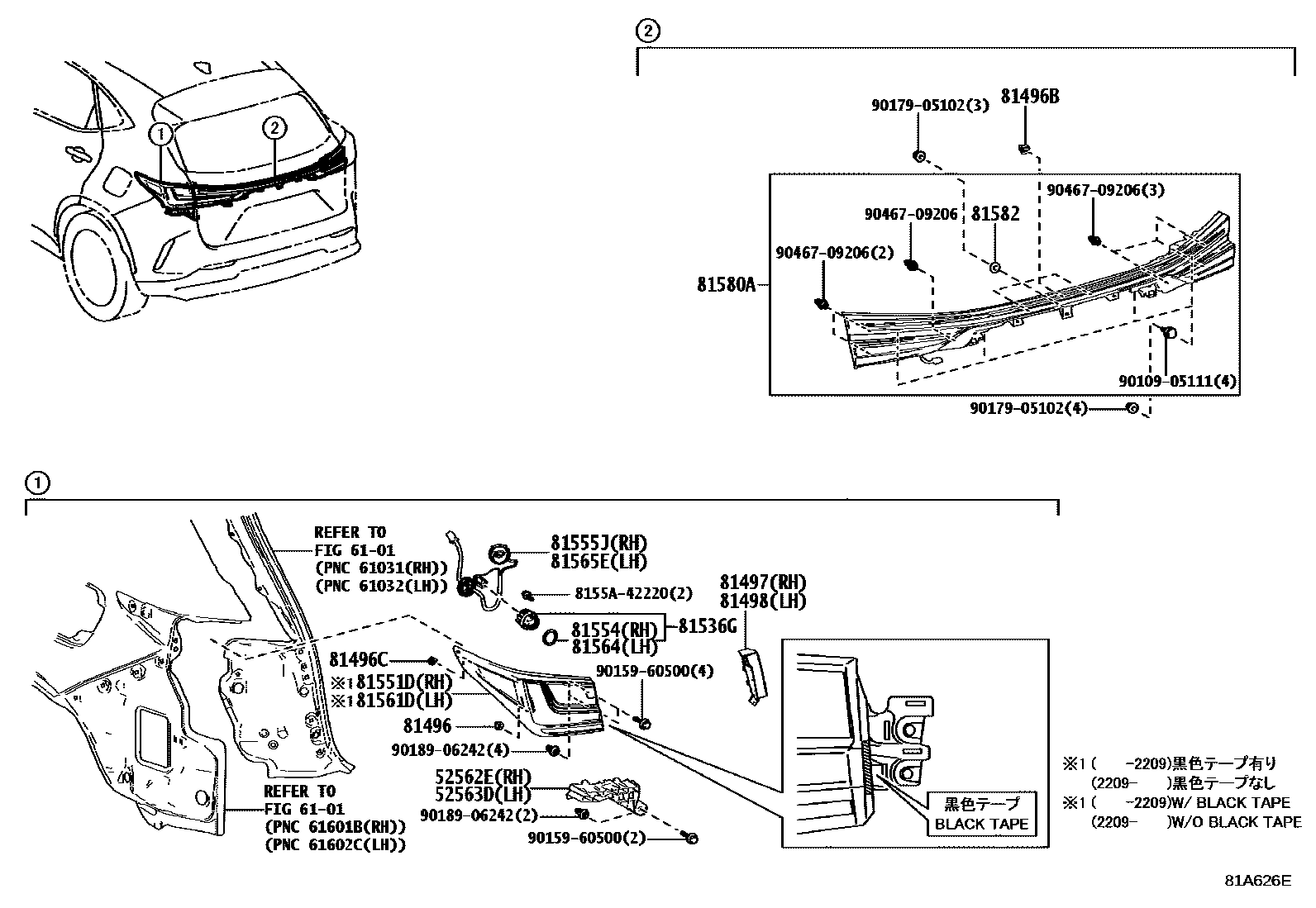

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-78020iAAZA2#202111-202506

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-78020iAAZH2#,MAZA20,TAZA25202111-202506

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAAZA2#202111-202506

81496BGUIDE, REAR LAMP

main81496-78010iAAZA2#202111-202506

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

81497COVER, REAR COMBINATION LAMP, RH

main81497-78020iAAZH2#,MAZA20,TAZA25202111-202506

81498COVER, REAR COMBINATION LAMP, LH

main81498-78020iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

81536GLED, BACK-UP LAMP

main8159A-52420iAAZA2#202111-202506

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-78190iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202209

W/BLACK TAPE

main81551-78191iAAZH2#,MAZA20,TAZA25202209-202506

W/O BLACK TAPE

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81538-42200iAAZA2#202111-202506

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-78180iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-78150iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202209

W/BLACK TAPE

main81561-78151iAAZA2#202209-202506

W/O BLACK TAPE

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81538-42200iAAZH2#,MAZA20,TAZA25202111-202506

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-78180iAAZA2#202111-202506

81580ALAMP ASSY, REAR

main81580-78090iAAZA2#202111-202506

81582GASKET, REAR LAMP

main81584-22040iAAZA2#202111-202506

8155A42220

main8155A-42220

9010905111

main90109-05111

9015960500

main90159-60500

9017905102

main90179-05102

9018906242

main90189-06242

9046709206

main90467-09206

23 parts on this diagram · 1 diagram in section
