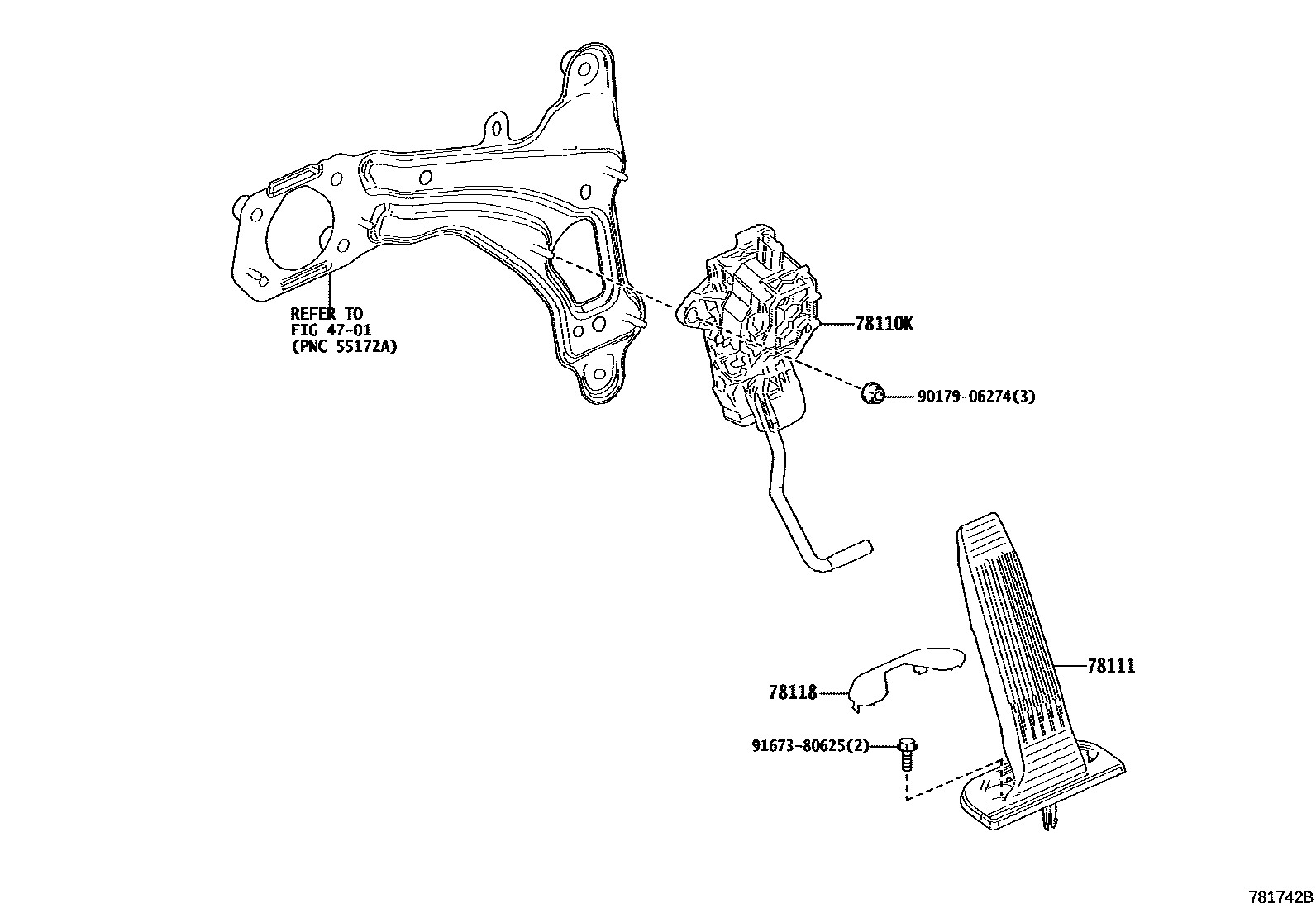

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-33131iAAZH20,25,26..LHD..EUR202111-202403

SPEED LIMITER CONTROL-WITHOUT

main78110-33131iAAZH20,25,26..LHD..EUR202111-202403

"F SPORT"*(F)&SPEED LIMITER CONTROL-WITHOUT

main78110-33131iAAZH25..GCC202111-202405

main78110-33141iTAZA25..GCC202111-202506

main78110-42061iAAZH25..RHD..EUR202111-202403

PREMIUM PACKAGE&SPEED LIMITER CONTROL-SPEED WARNING

main78110-42061iAAZH25..RHD..EUR202111-202403

"F SPORT"*(F)&SPEED LIMITER CONTROL-SPEED WARNING

main78110-42061iAAZH25..RHD..EUR202403

OVERTRAIL PACKAGE&SPEED LIMITER CONTROL-SPEED WARNING

main78110-42061iAAZH25..RHD..EUR202111-202403

COMFORT PACKAGE&SPEED LIMITER CONTROL-SPEED WARNING

main78110-42061iAAZH25..RHD..EUR202111-202403

"VERSION L"*(L)&SPEED LIMITER CONTROL-SPEED WARNING

main78110-42071iAAZA2#,TAZA25..RHD;AAZH20,25,26..RHD..EUR202111-202506

78111PEDAL, ACCELERATOR

main78101-33061iTAZA25..GCC;AAZH2#,MAZA20202403

OVERTRAIL PACKAGE

main78101-33061iAAZH25,TAZA25..GCC202111-202506

main78101-33070iAAZH25..RHD..EUR202111-202403

"F SPORT"*(F)&SPEED LIMITER CONTROL-SPEED WARNING

main78101-33070iAAZH25..RHD..EUR202111-202403

"F SPORT"*(F)&SPEED LIMITER CONTROL-WITHOUT

main78101-33070iAAZH20,25,26..LHD..EUR202111-202403

"F SPORT"*(F)

78118PAD, ACCELERATOR PEDAL

main78117-33020iAAZA2#202111-202506

9017906274

main90179-06274

9167380625

main91673-80625

6 parts on this diagram · 2 diagrams in section
