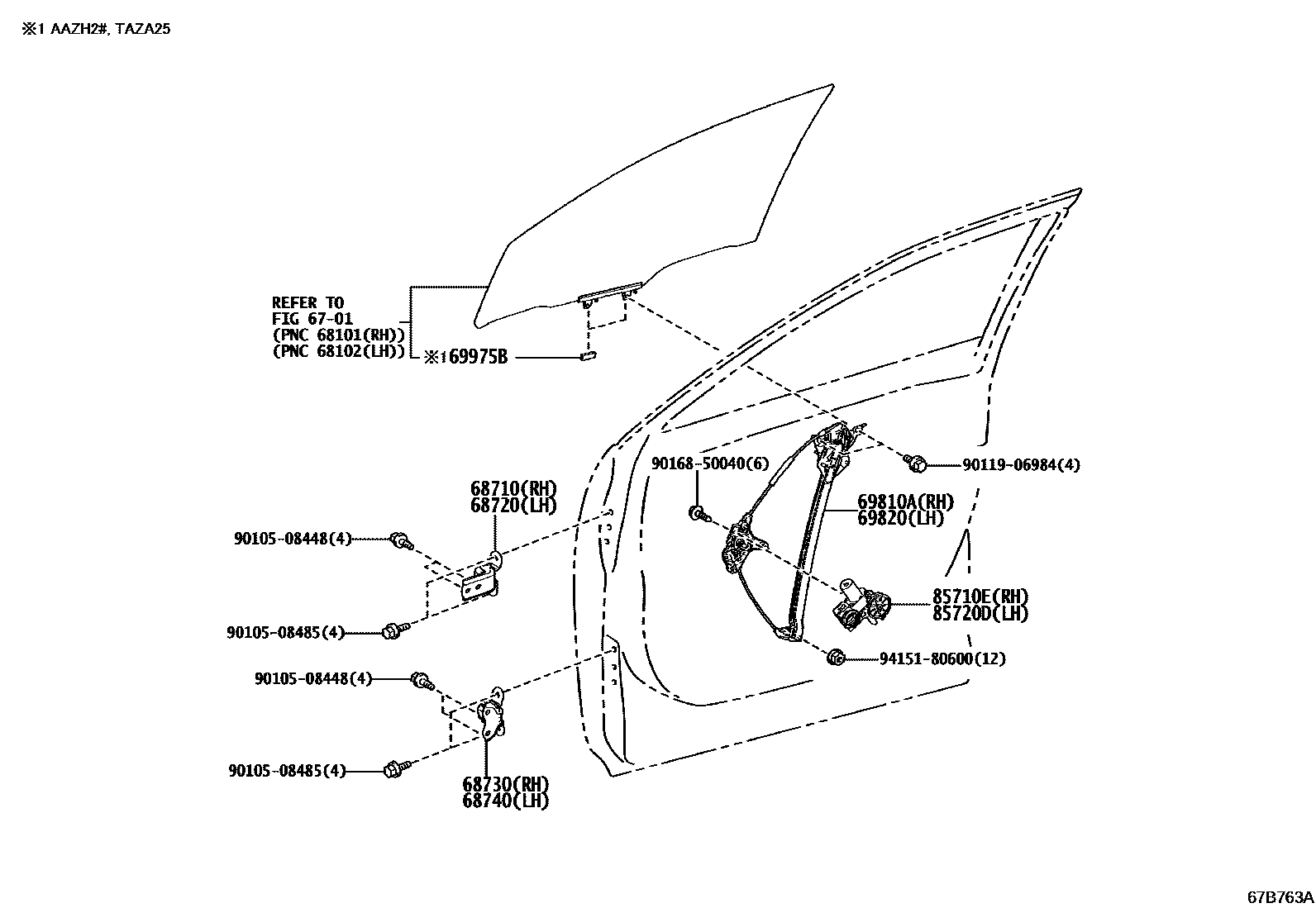

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iAAZA2#202111-202506

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iAAZH2#,MAZA20,TAZA25202111-202506

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAAZA2#202111-202506

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-78030iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202306

TMK PLANT

sub69801-78040

main69801-78040iAAZH2#,MAZA20,TAZA25202403-202506

main69801-78040iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202306-202405

TMK PLANT

main69801-78040iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202308-202405

TAHARA PLANT

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-78030iAAZA2#,AAZH2#,MAZA20,TAZA25202111-202306

TMK PLANT

sub69802-78040

main69802-78040iAAZA2#202403-202506

main69802-78040iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202306-202405

TMK PLANT

main69802-78040iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202308-202405

TAHARA PLANT

69975BFILLER, FRONT DOOR GLASS CHANNEL

main69975-50030iAAZH2#,TAZA25202111-202405

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-78030iAAZH2#,MAZA20,TAZA25202403-202506

main85710-78030iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202405

TMK PLANT

main85710-78030iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202308-202405

TAHARA PLANT

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-78030iAAZA2#202403-202506

main85720-78030iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202405

TMK PLANT

main85720-78030iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN202308-202405

TAHARA PLANT

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
