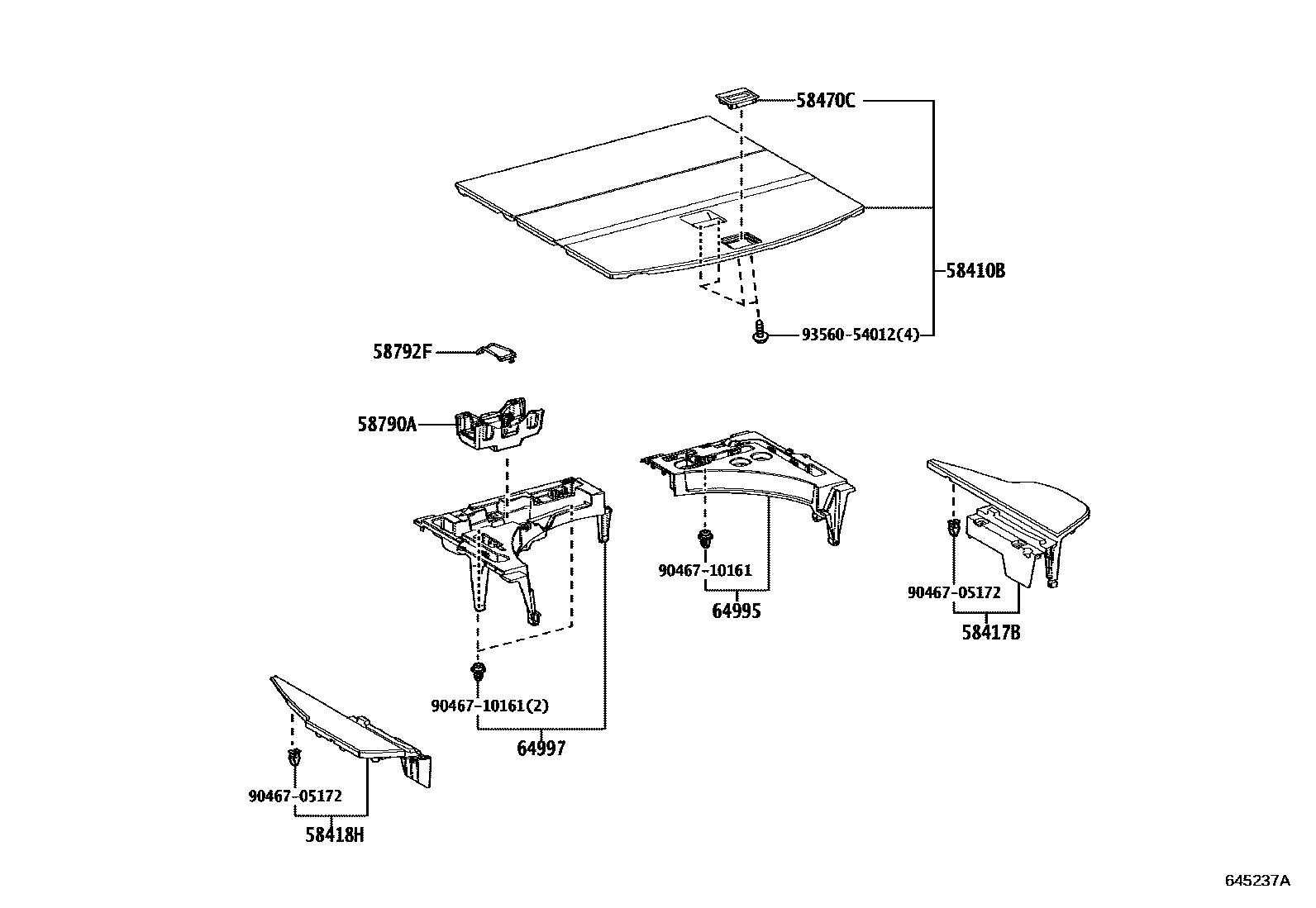

DECK BOARD & DECK TRIM COVER

0001 1DECK BOARD, W(TEMPORARY TIRE)0002 1DECK BOARD 0003 1DECK BOARD 0004 1DECK BOARD 0005 1DECK SIDE TRIM COVER

58410BBOARD ASSY, DECK

main58410-78030-C0iAAZH25,TAZA25..GCC202111-202506

BLACK,TRIM0#,2#,3#,4#

main58410-78030-C0iTAZA25..EUR,GEN202111-202403

BLACK,TRIM0#,2#,3#

58417BBOARD, REAR FLOOR, REAR RH

main58417-78010-C0iAAZA2#,MAZA20202111-202506

BLACK,TRIM0#,2#,3#,4#

main58417-78010-C0iAAZA2#,MAZA20202111-202403

BLACK,TRIM0#,2#,3#

main58417-78020-C0iAAZH2#202111-202405

BLACK,TRIM0#,2#,3#,4#

58418HBOARD, REAR FLOOR, REAR LH

main58418-78010-C0iMAZA20202201-202403

BLACK,TRIM0#,2#,3#,4#

main58418-78020-C0iAAZA2#,AAZH20,25,26..EUR,GEN202111-202403

BLACK,TRIM0#,2#,3#

main58418-78020-C0iAAZA2#,AAZH20,25,26..EUR,GEN202111-202506

BLACK,TRIM0#,2#,3#,4#

main58418-78030-C0iAAZA20..CHI202111-202506

BLACK,TRIM0#,2#,3#,4#

58470CHANDLE ASSY, DECK BOARD

main58470-78030-C0iTAZA25..EUR,GEN202111-202403

BLACK,TRIM0#,2#,3#

main58470-78030-C0iAAZA2#202111-202506

BLACK,TRIM0#,2#,3#,4#

58790ACARRIER ASSY, JACK

main58790-78040iAAZA20;AAZA25..GEN¥670202111-202506

JACK-WITH(DOP)&INDONESIA SPEC

main58790-78040iAAZA25..EUR¥670202111-202403

TIRE & DISC WHEEL-235/50R20 SUMMER TIRE EMT, 7.5J&SPARE TIRE-WITHOUT

main58790-78040iAAZA25..EUR¥670202111-202403

TIRE & DISC WHEEL-235/60R18 SUMMER TIRE EMT, 7.5J&SPARE TIRE-WITHOUT

main58790-78040iAAZA25..EUR¥670202111-202403

JACK-WITH(DOP)&BRUNEI SPEC

main58790-78040iAAZA25..EUR¥670202111-202403

JACK-WITH(DOP)&SOUTH AFRICA SPEC

main58790-78040iAAZA25..EUR¥670202111-202506

JACK-WITH(DOP)&SINGAPOLE SPEC

main58790-78040iAAZA25..EUR¥670202111-202403

JACK-WITH(DOP)&THAILAND SPEC

main58790-78040iAAZA25..EUR¥670202111-202403

JACK-WITH(DOP)&MALAYSIA SPEC

main58790-78040iAAZA25..EUR¥670202111-202506

JACK-WITH(DOP)&HONG KONG SPEC

main58790-78040iAAZA25..EUR¥670202111-202506

JACK-WITH(DOP)&MACAU SPEC

main58790-78040iAAZA25..EUR¥670202403-202506

JACK-WITH(DOP)

58792FSUPPORT, JACK CARRIER

main58792-48010iAAZA25..EUR¥570202403-202506

main58792-48010iAAZA25..EUR¥570202111-202403

TIRE & DISC WHEEL-235/50R20 SUMMER TIRE EMT, 7.5J&SPARE TIRE-WITHOUT

main58792-48010iAAZA25..EUR¥570202111-202403

TIRE & DISC WHEEL-235/60R18 SUMMER TIRE EMT, 7.5J&SPARE TIRE-WITHOUT

64995BOX, DECK FLOOR, RH

main64995-78050iAAZA25..EUR202111-202506

main64995-78060iAAZA20;AAZA25..GEN¥10,000202111-202506

TIRE & DISC WHEEL-235/50R20 SUMMER TIRE EMT, 7.5J&SPARE TIRE-WITHOUT

main64995-78060iAAZA25..EUR¥10,000202111-202506

TIRE & DISC WHEEL-235/60R18 SUMMER TIRE EMT, 7.5J&SPARE TIRE-WITHOUT

main64995-78060iAAZH20,25,MAZA20,TAZA25¥10,000202111-202405

64997BOX, DECK FLOOR, LH

main64997-78050iAAZA25..EUR202111-202506

main64997-78060iAAZA25..EUR¥12,000202111-202506

TIRE & DISC WHEEL-235/50R20 SUMMER TIRE EMT, 7.5J&SPARE TIRE-WITHOUT

main64997-78060iAAZA20;AAZA25..GEN¥12,000202111-202506

TIRE & DISC WHEEL-235/60R18 SUMMER TIRE EMT, 7.5J&SPARE TIRE-WITHOUT

main64997-78060iAAZH20,25,MAZA20,TAZA25¥12,000202111-202405

9046705172

main90467-05172¥60

9046710161

main90467-10161¥90

9356054012

main93560-54012¥60

11 parts on this diagram · 5 diagrams in section
