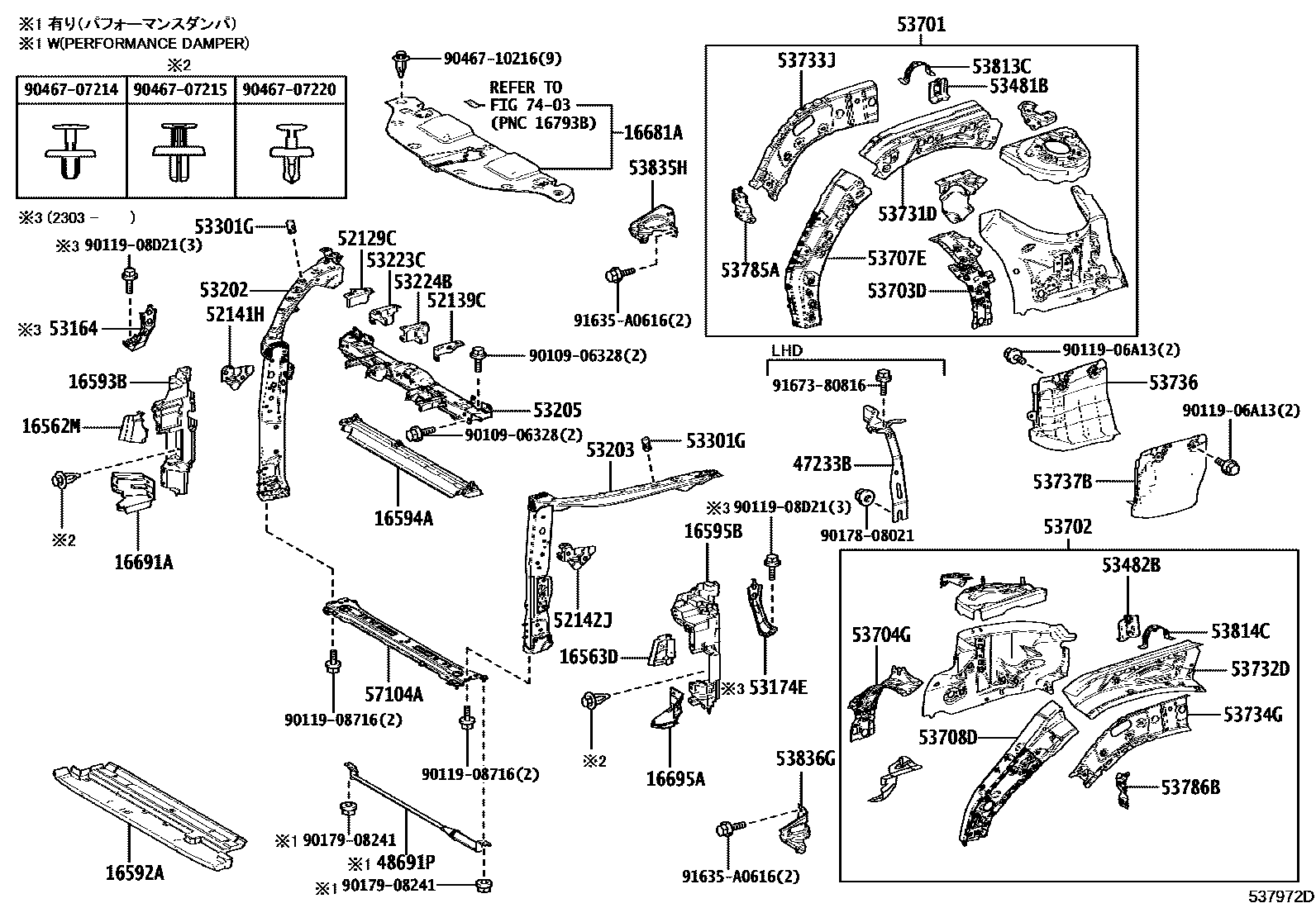

FRONT FENDER APRON & DASH PANEL

0001 1RADIATOR SUPPORT & FENDER APR0002 1DASH PANEL 0003 1DASH PANEL

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-25010iA25AFXS,M20AFKS,T24AFTS..AAZH2#,MAZA20,TAZA25¥1,130202111-202506

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-25010iA25AFKS..AAZA2#¥1,040202111-202506

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25040iA25AFKS..AAZA2#¥3,610202111-202506

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-24100iA25AFKS,M20AFKS..AAZA2#,MAZA20¥3,850202111-202506

main16593-25160iT24AFTS..TAZA25¥3,850202111-202405

main16593-25170iA25AFXS..AAZH21,26¥3,850202111-202403

main16593-25200iA25AFXS..AAZH20,25..EUR¥3,850202111-202403

TOWING PACKAGE-1500KG

main16593-25200iA25AFXS..AAZH20,25¥3,850202111-202405

main16593-25210iA25AFXS..AAZH20,25..EUR¥4,240202111-202403

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iA25AFXS,T24AFTS..AAZH25,TAZA25..GCC¥2,380202111-202501

main16594-25040iA25AFKS..AAZA2#¥1,540202501-202506

main16594-25050iA25AFXS,T24AFTS..AAZH2#,TAZA25202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-24100iM20AFKS,T24AFTS..MAZA20,TAZA25¥3,850202111-202506

main16595-25170iA25AFXS..AAZH20,25..EUR¥3,850202111-202403

TOWING PACKAGE-1500KG

main16595-25170iA25AFXS..AAZH2#¥3,850202111-202405

16681APLATE, RADIATOR UPPER AIR GUIDE

main16681-25040iA25AFKS,M20AFKS..AAZA2#,MAZA20¥7,400202111-202506

main16681-25060iA25AFXS,T24AFTS..AAZH2#,TAZA25¥7,400202111-202405

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25090iA25AFKS..AAZA2#¥1,570202111-202506

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25090iA25AFKS..AAZA2#¥1,540202111-202506

47233BBRACKET, RESERVOIR TANK, NO.1

main47233-78010iAAZA2#..LHD202111-202506

48691PDAMPER, SUSPENSION TOWER

main48691-78060iTAZA25..EUR,GEN¥26,200202403

"F SPORT"*(F)

main48691-78060iTAZA25..EUR,GEN¥26,200202403

OVERTRAIL PACKAGE

main48691-78060iTAZA25..EUR,GEN¥26,200202111-202403

52129CARM, FRONT BUMPER, UPPER NO.2 RH

main52129-48030iAAZH25,TAZA25..GCC¥930202111-202506

52139CARM, FRONT BUMPER, UPPER NO.2 LH

main52139-78020iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN¥730202111-202506

52141HARM, FRONT BUMPER, UPPER RH

main52141-42030iAAZA2#¥750202111-202506

52142JARM, FRONT BUMPER, UPPER LH

main52142-78010iAAZA2#¥930202111-202506

53164BRACKET, RADIATOR SUPPORT SIDE

main53164-78010iAAZH25,TAZA25..GCC¥1,260202303-202506

53174EBRACKET, RADIATOR SUPPORT SIDE

main53174-78010iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN¥1,260202303-202506

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-78022iAAZA2#,AAZH2#,MAZA20,TAZA25¥9,100202111-202303

main53202-78023iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN¥9,200202303-202506

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-78022iAAZA2#,AAZH2#,MAZA20,TAZA25¥9,100202111-202303

main53203-78023iAAZA2#¥9,200202303-202506

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-78030iAAZH25,TAZA25..GCC¥12,700202111-202506

53223CBRACKET, RADIATOR GRILLE MOUNTING, RH

main53223-78020iAAZA2#¥820202111-202506

53224BBRACKET, RADIATOR GRILLE MOUNTING, LH

main53224-78020iAAZA2#¥820202111-202506

53301GCUSHION, HOOD BUMPER

main90541-15037iAAZA2#¥200202111-202506

53481BBRACKET, HOOD SUPPORT, RH

main53481-78020iAAZA2#¥820202111-202506

53482BBRACKET, HOOD SUPPORT LH

main53481-78020iAAZA2#¥820202111-202506

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-78900iAAZA2#¥35,400202111-202506

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-78900iAAZA2#¥35,400202111-202506

53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH

main53703-42030iAAZA2#¥3,220202111-202506

53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH

main53704-42040iAAZA2#¥3,220202111-202506

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-42020iAAZH2#,MAZA20,TAZA25¥5,600202111-202506

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-42020iAAZA2#¥5,600202111-202506

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-42070iAAZA2#¥4,460202111-202506

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-42060iAAZA2#¥4,460202111-202506

53733JMEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH

main53733-42030iAAZA2#¥2,470202111-202506

53734GMEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH

main53734-42030iAAZA2#¥2,470202111-202506

53736SEAL, FRONT FENDER APRON, RH

main53736-42050iAAZA2#¥1,820202111-202506

53737BSEAL, FRONT FENDER APRON, LH

main53737-42010iAAZA2#¥1,820202111-202506

53785AGUSSET, FRONT FENDER APRON, UPPER RH

main53785-42010iAAZA2#¥860202111-202506

53786BGUSSET, FRONT FENDER APRON, UPPER LH

main53786-42010iAAZH2#,MAZA20,TAZA25¥860202111-202506

53813CEXTENSION, FRONT FENDER, RH

main53813-78011iAAZA2#¥340202111-202506

53814CEXTENSION, FRONT FENDER, LH

main53814-78011iAAZA2#¥340202111-202506

53835HBRACE, FRONT FENDER TO EXTENSION, RH

main53835-78010iAAZA2#,AAZH2#,MAZA20,TAZA25..CHI,EUR,GEN¥1,540202111-202506

53836GBRACE, FRONT FENDER TO EXTENSION, LH

main53836-78010iAAZH2#,MAZA20,TAZA25¥1,540202111-202506

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-42090iAAZA2#¥6,500202111-202506

7403

9010906328

main90109-06328¥60

9011906A13

main90119-06A13¥60

9011908716

main90119-08716¥100

9011908D21

main90119-08D21¥80

9017808021

main90178-08021¥100

9017908241

main90179-08241¥80

9046707214

main90467-07214¥70

9046707215

main90467-07215¥80

9046707220

main90467-07220¥80

9046710216

main90467-10216¥100

91635A0616

main91635-A0616¥60

9167380816

main91673-80816¥80

57 parts on this diagram · 3 diagrams in section
