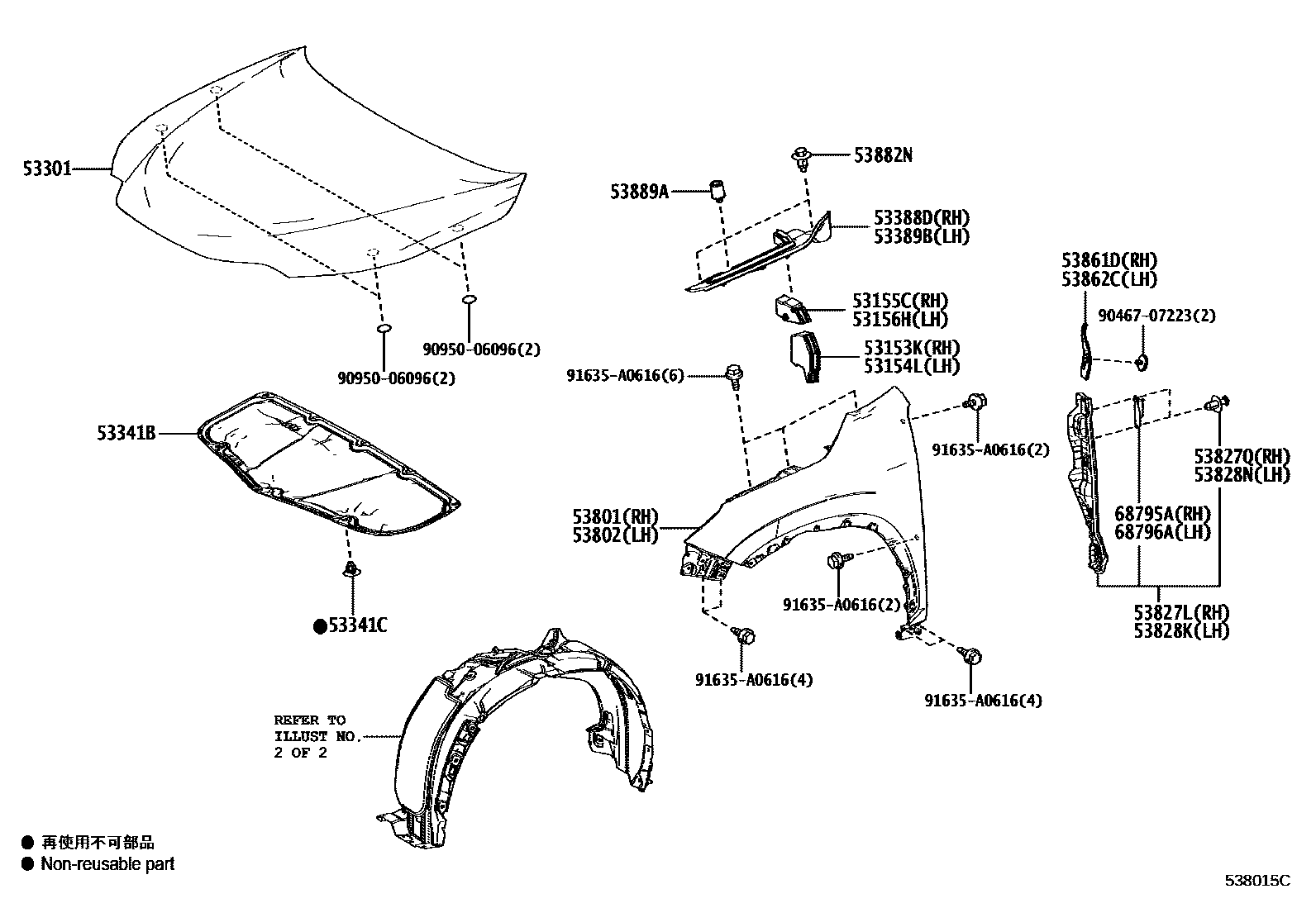

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53155CSEAL, RADIATOR GRILLE, NO.1
53156HSEAL, RADIATOR GRILLE, NO.2
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
53861DSEAL, FRONT FENDER TO DOOR HINGE, UPPER RH
53862CSEAL, FRONT FENDER TO DOOR HINGE, UPPER LH
53882NCLIP(FOR FRONT FENDER SEAL)
53889ACUSHION, FRONT FENDER PANEL
68795ACOVER, DOOR HINGE, NO.1 RH
68796ACOVER, DOOR HINGE, NO.1 LH
9046707223
main90467-07223
9095006096
main90950-06096
91635A0616
main91635-A0616
24 parts on this diagram · 2 diagrams in section
