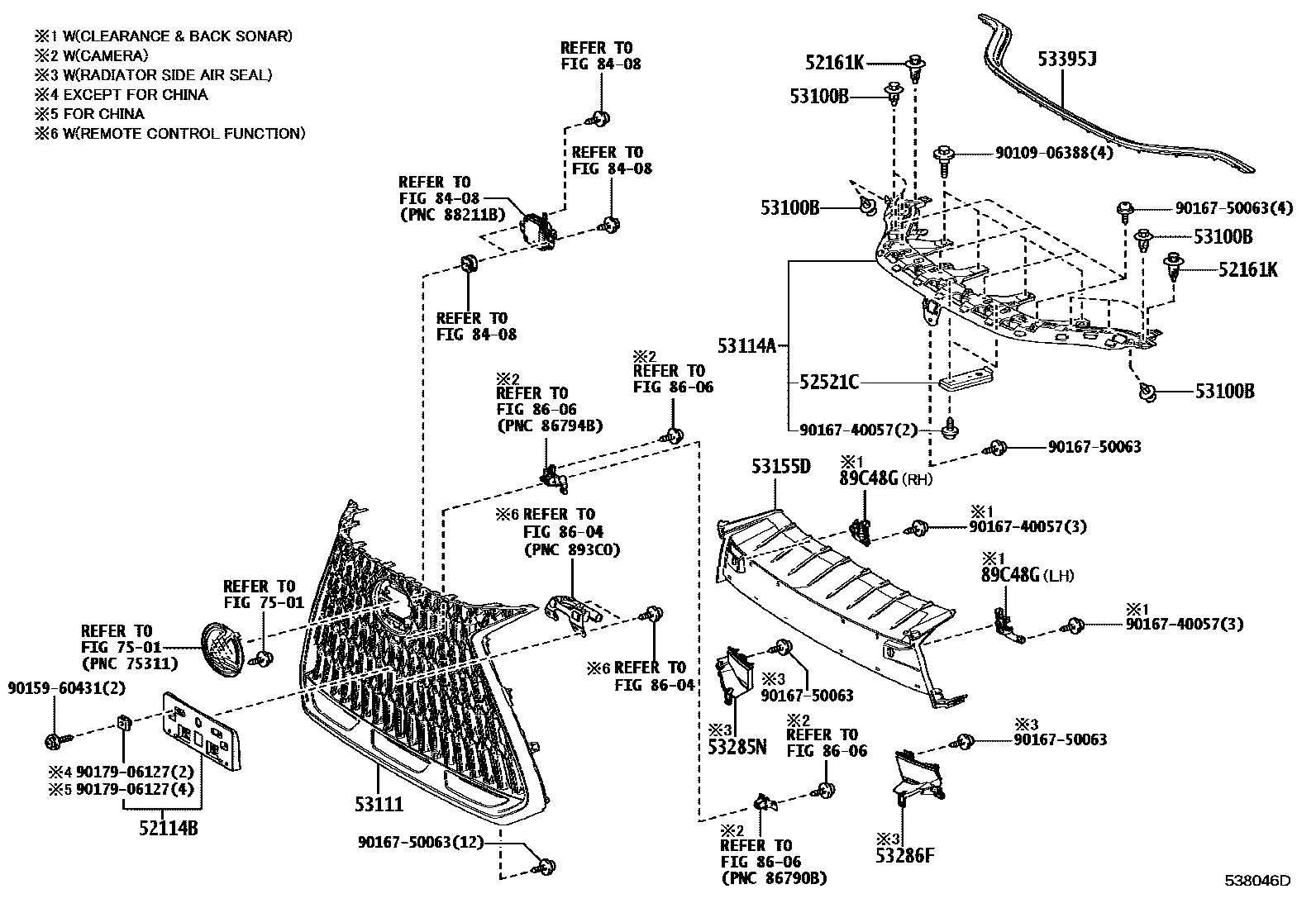

RADIATOR GRILLE
52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING
TAIWAN SPEC
"F SPORT"*(F)
"F SPORT"*(F)
"F SPORT"*(F)
"F SPORT"*(F)
TAIWAN SPEC
52161KPIECE, FRONT BUMPER
sub52161-0K040
52521CRETAINER, FRONT BUMPER, UPPER
53100BCLIP, RADIATOR GRILLE
BLACK
53111GRILLE, RADIATOR
NO PAINT REQ.
main53111-78181iTAZA25..GCC;AAZH26..RHD;AAZH26..LHD..EUR;AAZH25..EUR,GCC,GEN;AAZA2#,AAZH20,MAZA20202303-202405
NO PAINT REQ.
NO PAINT REQ.,VIETNAM SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)
NO PAINT REQ.,INDIA SPEC&PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
NO PAINT REQ.,INDIA SPEC&"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA)
NO PAINT REQ.,"F SPORT"*(F)&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)&AUDIO-*EMV & 10SPEAKER&C
NO PAINT REQ.,TOWING PACKAGE-1500KG&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&ADVANCED PARK-WITH(REM
NO PAINT REQ.,COMFORT PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER & PASSENGER)&AUDIO-*EMV & 10SPEAKER&CLEAR
NO PAINT REQ.,OVERTRAIL PACKAGE&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&FRONT SEAT ADJUSTER-POWER SEAT(DRIVER:*DPMS & PASSENGER)&CLEARANCE & BACK SON
NO PAINT REQ.,OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE& *RCTB)
NO PAINT REQ.,INDIA SPEC&OVERTRAIL PACKAGE&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
53114AGRILLE, RADIATOR, INNER
53155DSEAL, RADIATOR GRILLE, NO.1
CLEARANCE & BACK SONAR-WITH(REAR CROSS-TRAFFIC ALERT)
INDIA SPEC&"VERSION L"*(L)&CLEARANCE & BACK SONAR-WITH(8SENSOR & *RCTA & *RCDE)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
53285NSEAL, RADIATOR SIDE AIR, RH
53286FSEAL, RADIATOR SIDE AIR, LH
53395JSEAL, HOOD TO FRONT END PANEL
7501
8408
8604
8606
89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *PVM),RH
"F SPORT"*(F)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),LH
9010906388
main90109-06388
9015960431
main90159-60431
9016740057
main90167-40057
9016750063
main90167-50063
9017906127
main90179-06127
20 parts on this diagram · 2 diagrams in section
