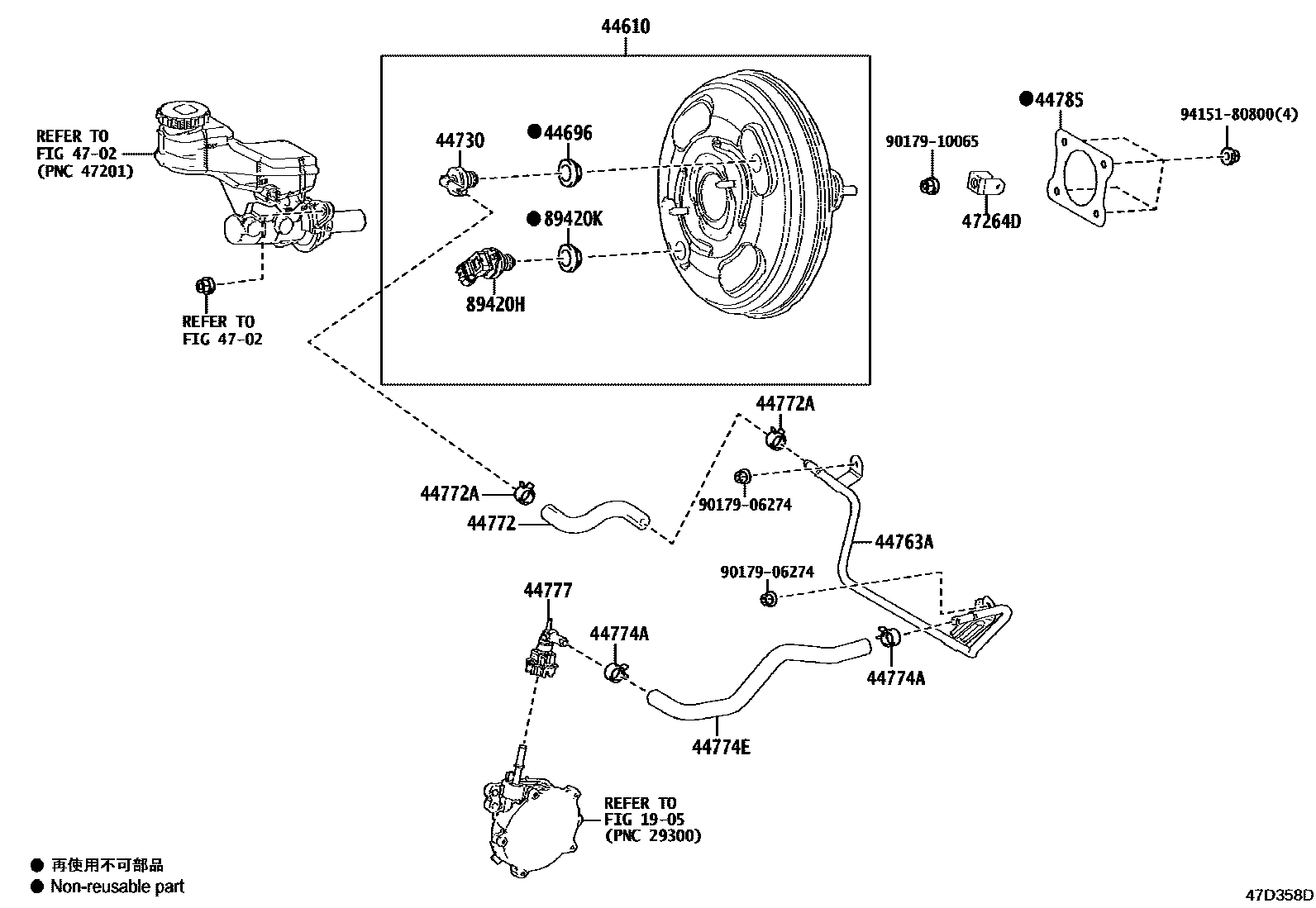

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1905

44610BOOSTER ASSY, BRAKE

main44610-78130iMAZA20202201-202403

main44610-78140iTAZA25..GCC202111-202405

main44610-78160iAAZA2#,TAZA25..RHD202111-202403

main44610-78170iTAZA25..LHD202403-202506

main44610-78180iTAZA25..RHD202403-202506

44696GROMMET, CHECK VALVE

main90480-24439iAAZA2#202111-202506

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iAAZA2#..LHD202111-202506

main44730-52010iAAZA2#,TAZA25..RHD202111-202506

44763ATUBE, HOSE TO HOSE, NO.1

main44763-42090iAAZA2#..RHD202111-202506

main44763-78020iTAZA25..RHD202111-202403

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42100iAAZA2#..RHD202111-202506

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iAAZA2#..RHD202111-202506

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iTAZA25..RHD202111-202506

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-42120iAAZA2#..RHD202111-202506

main44774-78020iTAZA25..RHD202111-202403

44777CONNECTOR, VACUUM HOSE, NO.1

main29612-25010iTAZA25202111-202405

main44777-33010iAAZA2#,MAZA20202111-202506

44785GASKET, BRAKE BOOSTER

main44785-12040iAAZA2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202506

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-42020iMAZA20,TAZA25202111-202506

89420HSENSOR ASSY, VACUUM

main89421-52020iAAZA2#,TAZA25..CHI,EUR,GEN202111-202405

main89421-71040iAAZA2#202403-202507

89420KGROMMET, VACUUM SENSOR

main90480-24439iAAZA2#202111-202506

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

18 parts on this diagram · 5 diagrams in section
