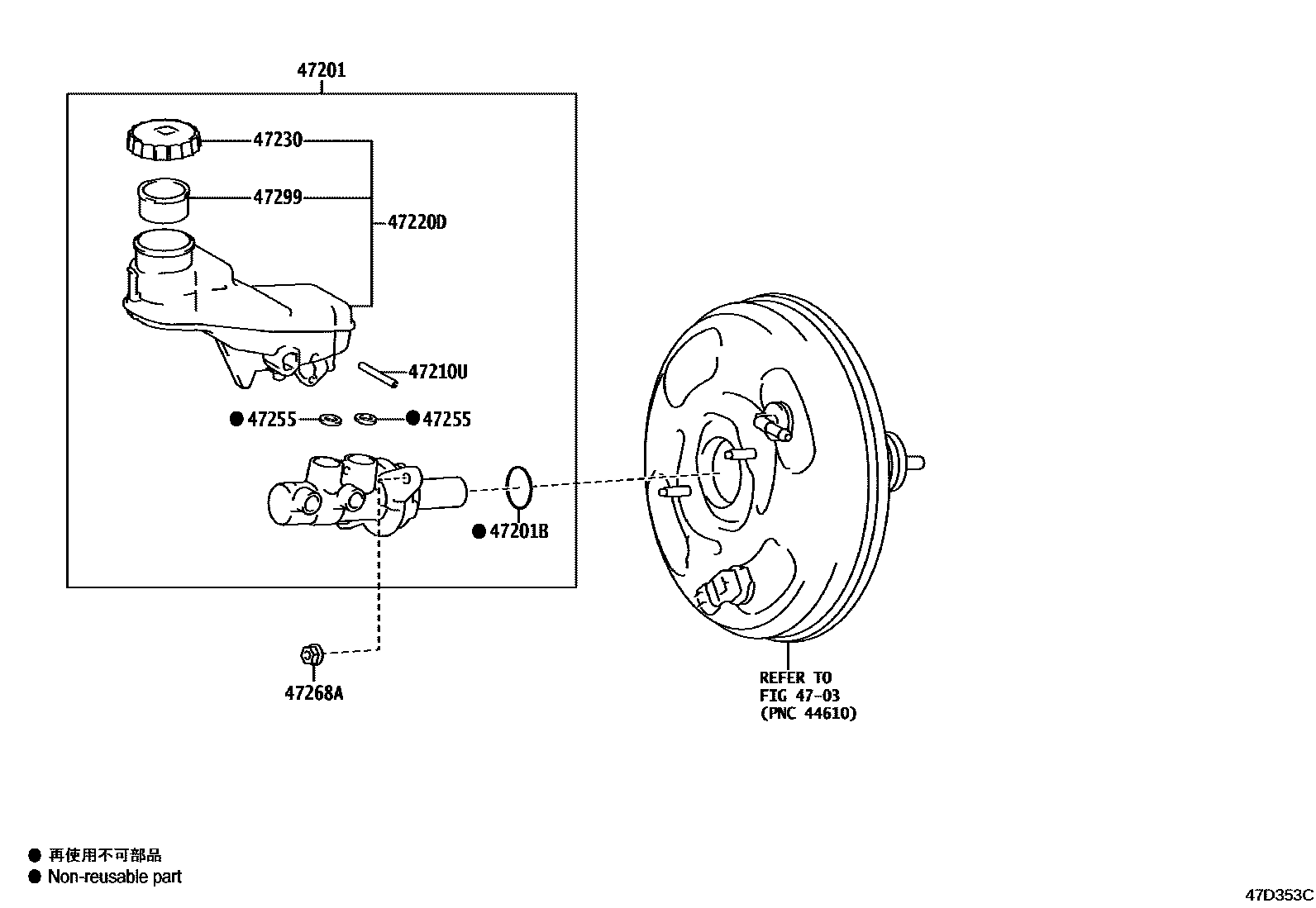

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-78010iAAZA2#..LHD202111-202506

main47201-78020iAAZA2#..RHD202111-202506

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAAZA2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202405

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iMAZA20202111-202405

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-42150iAAZA2#,TAZA25..RHD202111-202506

main47220-42170iTAZA25..GCC202111-202506

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMAZA20202111-202405

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAAZH2#202111-202405

main90029-48001iAAZA2#,MAZA20,TAZA25..CHI,EUR,GEN202111-202405

sub90016-AT001

47268ANUT, BRAKE MASTER CYLINDER

main90179-08204iAAZA2#202111-202506

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iTAZA25..GCC202111-202405

9 parts on this diagram · 5 diagrams in section
