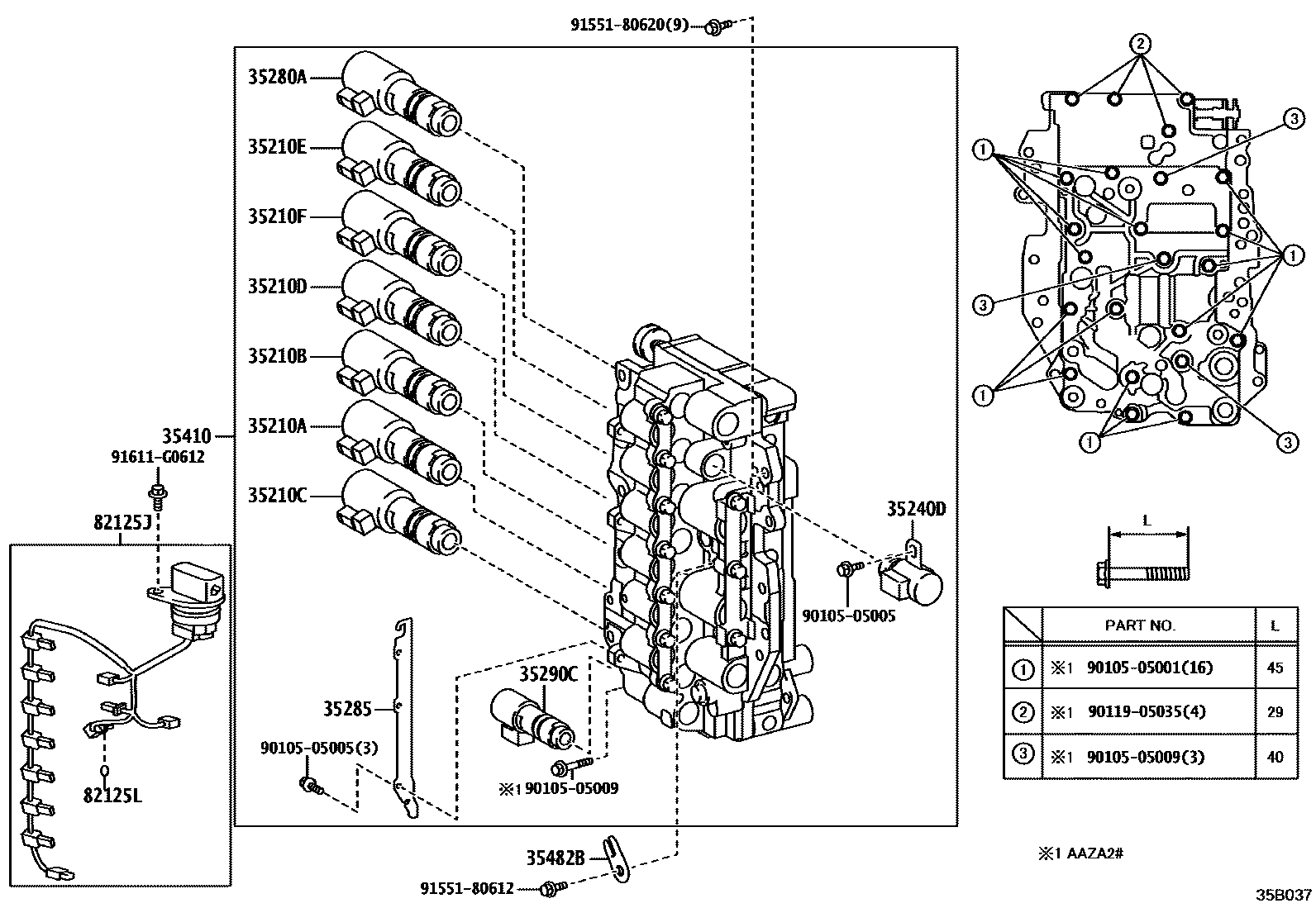

VALVE BODY & OIL STRAINER (ATM)
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240DVALVE, SOLENOID(SL)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
35290CVALVE, SOLENOID(SLT)
35410BODY ASSY, TRANSMISSION VALVE
35482BCLAMP, TEMPERATURE SENSOR
82125JWIRE, TRANSMISSION
82125LRING, O(FOR TRANSMISSION WIRE)
9010505001
main90105-05001
9010505005
main90105-05005
9010505009
main90105-05009
9011905035
main90119-05035
9155180612
main91551-80612
9155180620
main91551-80620
91611G0612
main91611-G0612
21 parts on this diagram · 1 diagram in section
