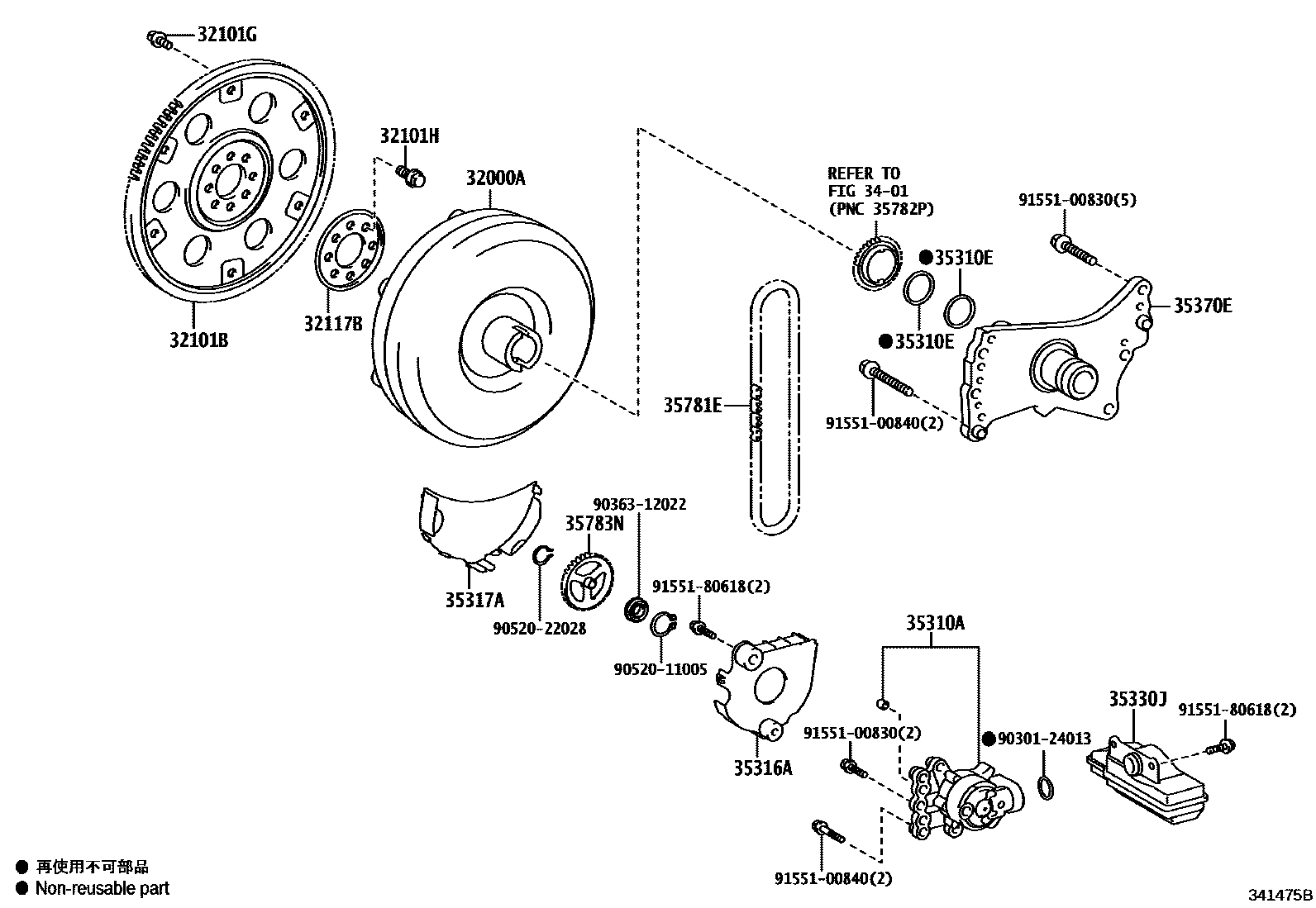

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12460iMAZA20¥74,000202201-202403

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12120iMAZA20¥13,400202201-202403

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMAZA20¥80202201-202403

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMAZA20¥80202201-202403

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMAZA20¥100202201-202403

32117BSPACER, DRIVE PLATE, REAR

main32117-33010iMAZA20¥920202201-202403

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMAZA20¥16,000202201-202403

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12070iMAZA20¥160202201-202403

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12020iMAZA20¥980202201-202403

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12020iMAZA20¥590202201-202403

35330JSTRAINER ASSY, OIL

main35330-12090iMAZA20¥3,580202201-202403

35370ESHAFT ASSY, STATOR (CVT)

main35370-12130iMAZA20¥14,900202201-202403

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMAZA20¥5,100202201-202205

main35781-33010iMAZA20¥1,570202206-202209

sub35781-42010¥1,420

main35781-42010iMAZA20¥1,420202209-202403

35783NSPROCKET, DRIVEN

main35783-12060iMAZA20¥1,310202201-202403

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

21 parts on this diagram · 1 diagram in section
