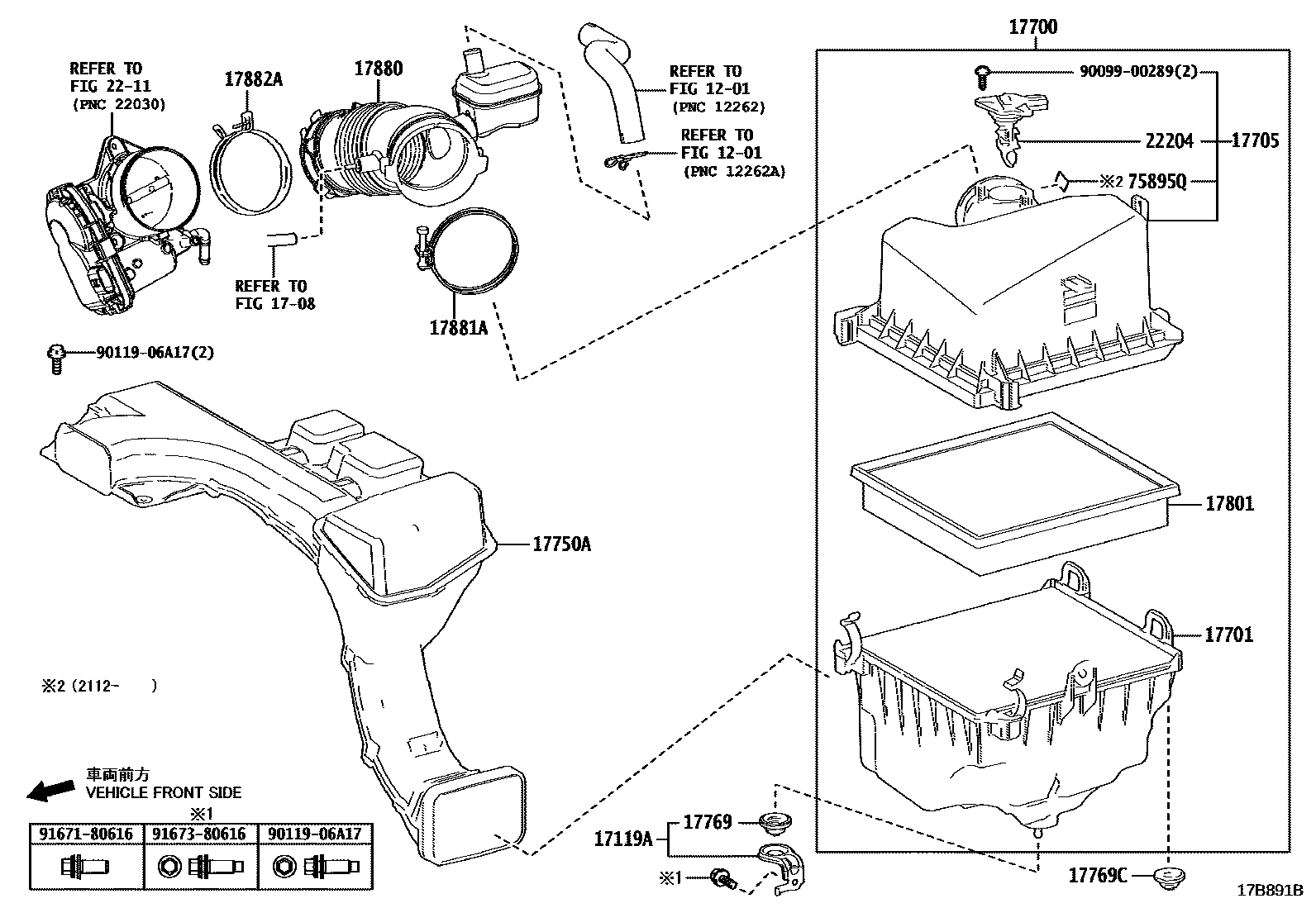

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1201

1708

17119ABRACKET, AIR CLEANER

main17119-25010iT24AFTS..TAZA25202111-202506

17700CLEANER ASSY, AIR

main17700-25151iM20AFKS..MAZA20202111-202506

main17700-25171iA25AFXS..AAZH2#..CHI,EUR,GEN202111-202405

main17700-F0350iT24AFTS..TAZA25..EUR,GEN202111-202405

17701CASE SUB-ASSY, AIR CLEANER

main17701-25101iM20AFKS..MAZA20202111-202506

main17701-25111iA25AFXS..AAZH2#202111-202405

main17701-F0200iT24AFTS..TAZA25202111-202405

17705CAP SUB-ASSY, AIR CLEANER

main17705-25050iM20AFKS..MAZA20202111-202506

main17705-25070iA25AFXS..AAZH2#202111-202405

main17705-F0270iT24AFTS..TAZA25202111-202405

17750AINLET ASSY, AIR CLEANER

main17750-24010iM20AFKS..MAZA20202111-202411

main17750-24031iA25AFKS..AAZA2#202412-202506

main17750-25080iA25AFXS..AAZH26..RHD;A25AFXS..AAZH20,21,25;A25AFXS..AAZH26..LHD..EUR202111-202405

main17750-25090iT24AFTS..TAZA25202111-202405

17769SUPPORT, AIR CLEANER

main17769-25020iA25AFXS..AAZH25..GCC202111-202506

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iT24AFTS..TAZA25202111-202506

main17769-25030iA25AFXS..AAZH2#..CHI,EUR,GEN202111-202405

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iA25AFKS..AAZA2#202201-202506

main17801-25020iM20AFKS..MAZA20202111-202405

(J)

main17801-77050iA25AFXS..AAZH2#202111-202405

main17801-F0050iT24AFTS..TAZA25202111-202405

(L)

17880HOSE ASSY, AIR CLEANER

main17880-24020iM20AFKS..MAZA20202201-202403

main17880-25040iA25AFXS..AAZH2#202111-202405

main17880-25050iA25AFKS..AAZA2#202111-202506

main17880-25060iT24AFTS..TAZA25..EUR,GEN202111-202405

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AAZH25..GCC202111-202405

main96111-10880iT24AFTS..TAZA25202111-202506

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AAZH2#202111-202405

main90466-71001iA25AFKS..AAZA2#202111-202506

main96111-10800iM20AFKS..MAZA20202201-202403

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25AFXS..AAZH2#202111-202506

75895QTAPE, MOULDING, NO.1

main75895-52050iAAZA2#202111-202506

9009900289

main90099-00289

9011906A17

main90119-06A17

9167180616

main91671-80616

9167380616

main91673-80616

20 parts on this diagram · 5 diagrams in section
