PRE-COLLISION SYSTEM

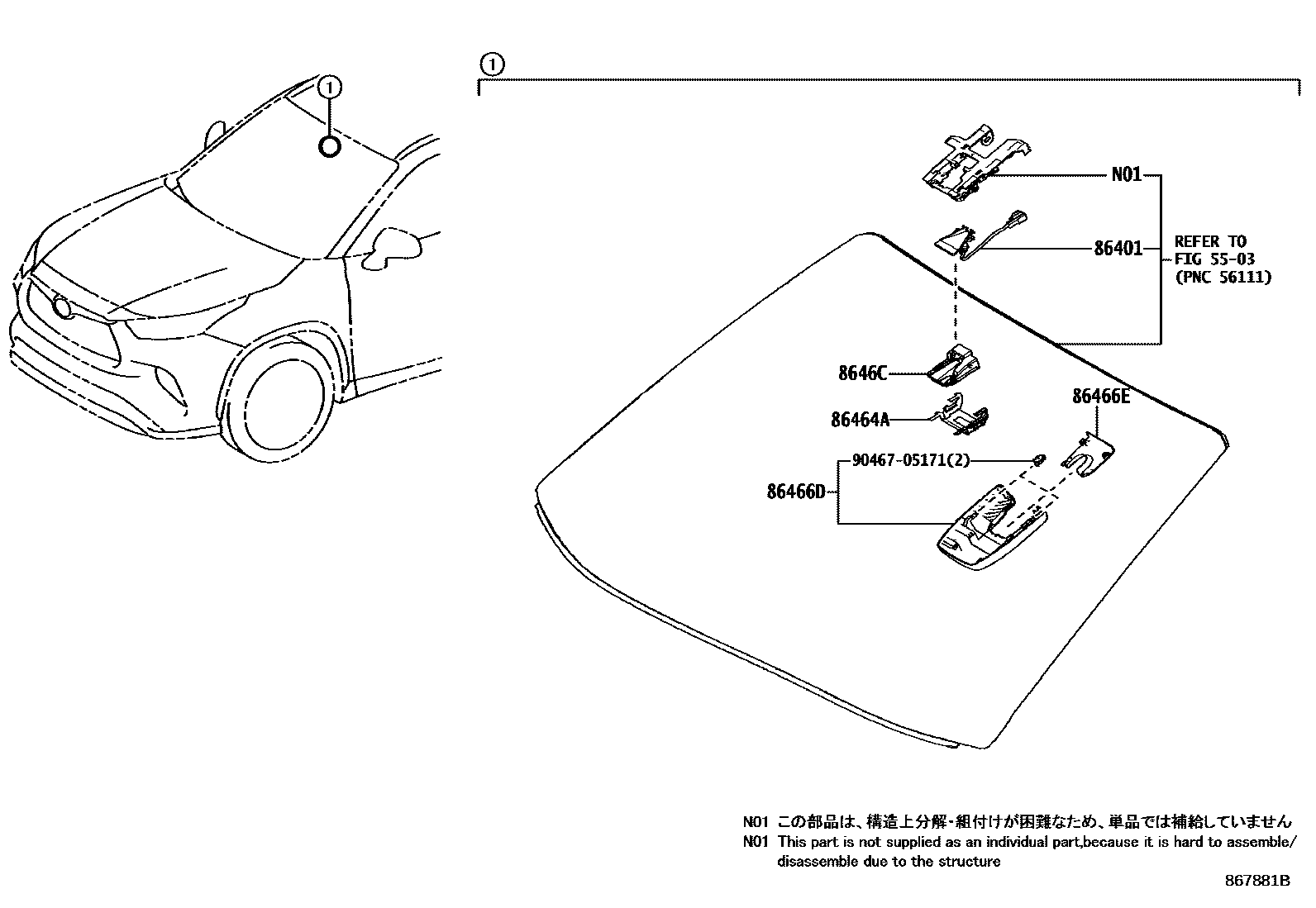

Parts diagram

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-0E010i202002-202311

IRAQ SPEC

main86401-0E010i202210-202410

86464ALATCH, FORWARD RECOGNITION

main86464-08010i202105-202311

IRAQ SPEC

main86464-08010i202210-202410

main86464-26010i202002-202104

IRAQ SPEC

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0E030i202002-202311

IRAQ SPEC

main86466-0E030i202210-202410

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-0E020i202011-202210

PLATINUM PACKAGE

main86466-0E020i202210-202312

INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main86466-0E020i202210-202311

HYBRID SPECIAL EDITION&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR

main86466-0E040i202002-202311

IRAQ SPEC

main86466-0E040i202210-202410

8646CCAMERA, FORWARD RECOGNITION

main8646C-0E040i202002-202011

IRAQ SPEC

main8646C-0E070i202011-202210

IRAQ SPEC

main8646C-0E071i202210-202311

IRAQ SPEC

main8646C-0E071i202210-202312

main8646C-0E250i202311-202411

*614

main8646C-0E250i202311-202411

IRAQ SPEC,*614

main8646C-0E251i202411

*614

main8646C-0E251i202411

IRAQ SPEC,*614

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
