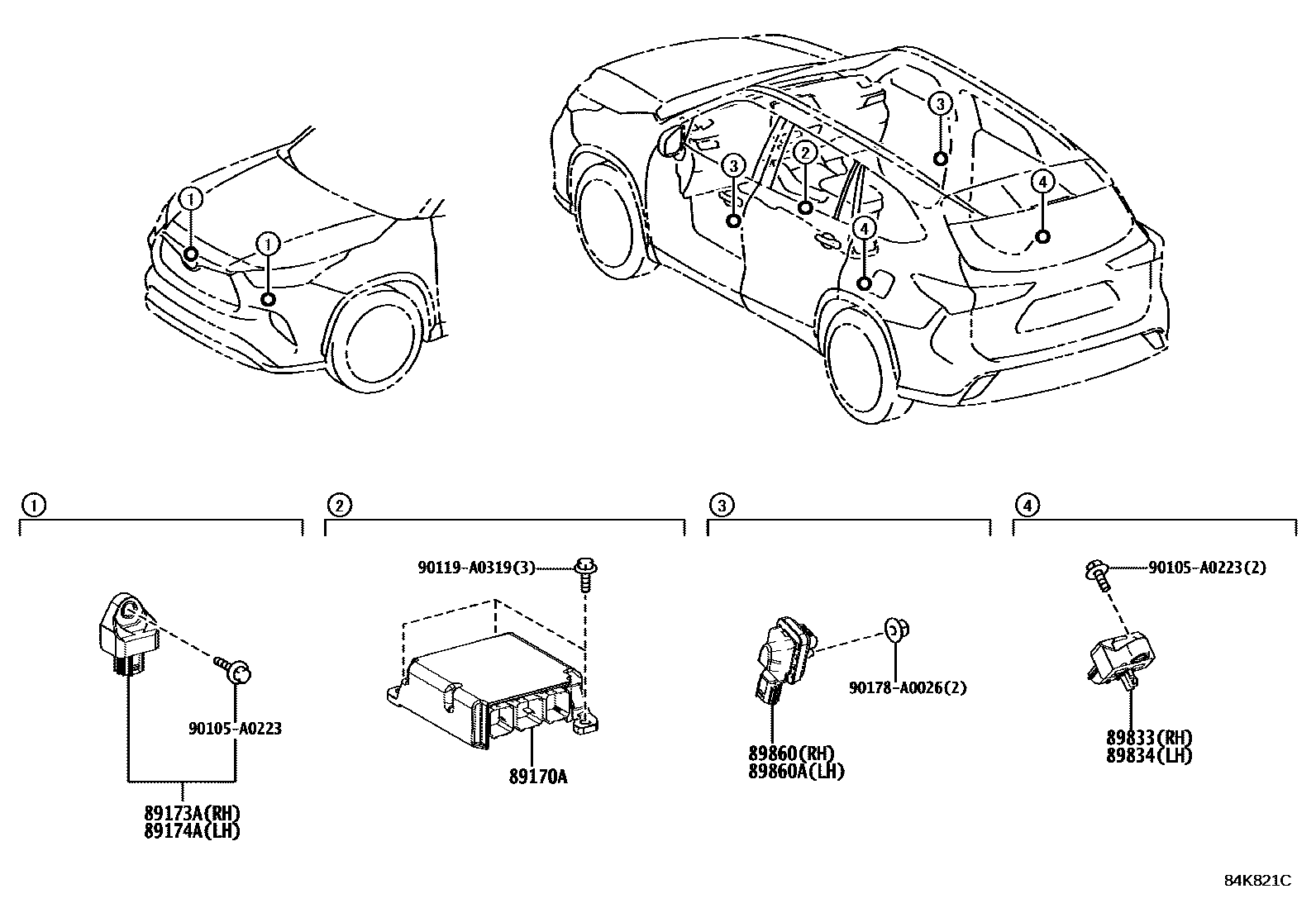

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-0E220iAXUH78..ARL202012-202312

main89170-0E260iGSU75..RUS202003-202311

main89170-0E280iAXUH7#..GCC202002-202311

main89170-0E380iGSU7#..ARL202012-202312

main89170-0E400iAXUH78..EUR202011-202312

main89170-0E590iTXUA7#..ARL202401

*614

main89170-0E600iAXUH78..ARL202401

*614

main89170-0E610iTXUA75..RUS202311

*614

main89170-0E620iAXUH70..LIMD202311-202410

*614

main89170-0E630iAXUH78..LHD..EUR202311

*614

main89170-0E640iAXUH78..RHD..EUR202401

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-09D40iAXUH7#,GSU7#202002-202312

main89173-09D60iAXUH70..LIMD202311-202410

89174ASENSOR, AIRBAG, FRONT LH

main89173-09D40iAXUH78,TXUA7#..RHD202002-202312

main89173-09D60iAXUH70..LIMD202311-202410

89833SENSOR, AIRBAG, REAR RH

main89831-08120iAXUH78,TXUA7#;AXUH70..LE,XLE202311-202410

main89831-0E160iAXUH78,TXUA7#..RHD202002-202312

89834SENSOR, AIRBAG, REAR LH

main89831-08120iAXUH78,TXUA7#;AXUH70..LE,XLE202311-202410

main89831-0E160iAXUH7#,GSU7#202002-202312

89860SENSOR ASSY, SIDE AIRBAG, RH

main8983A-02050iAXUH78,TXUA7#;AXUH70..LE,XLE202311-202410

main8983A-0E020iAXUH7#,GSU75202002-202009

sub8983A-0E021

main8983A-0E021iAXUH78,TXUA7#..RHD202010-202312

89860ASENSOR ASSY, SIDE AIRBAG, LH

main8983A-02050iAXUH78,TXUA7#;AXUH70..LE,XLE202311-202410

main8983A-0E020iAXUH7#,GSU75202002-202009

sub8983A-0E021

main8983A-0E021iAXUH7#,TXUA75..LHD202010-202312

90105A0223

main90105-A0223

90119A0319

main90119-A0319

90178A0026

main90178-A0026

10 parts on this diagram · 1 diagram in section
