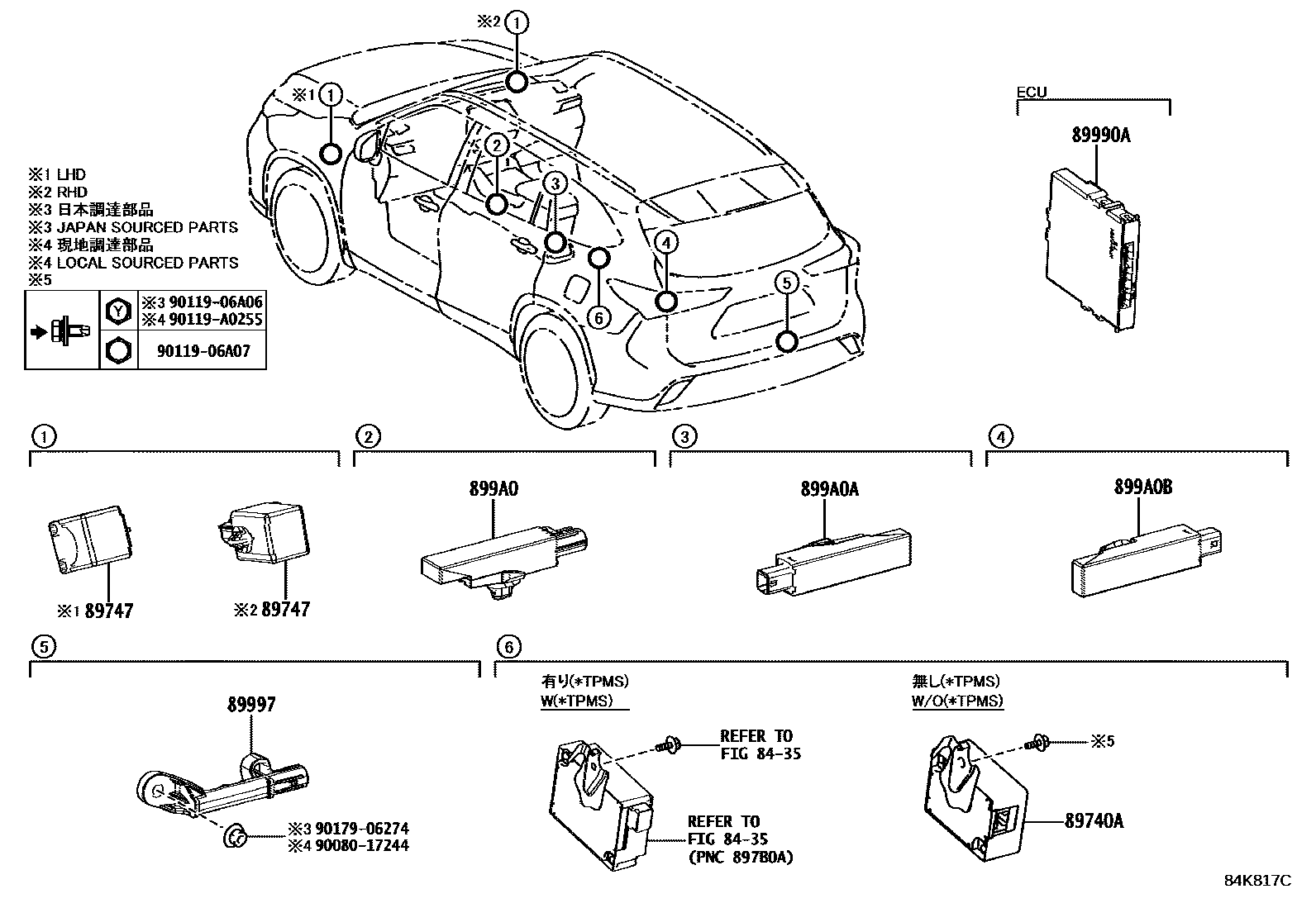

WIRELESS DOOR LOCK

8435

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-0E080iAXUH78,GSU7#..ARL202012-202210

main89740-0E090iAXUH78,TXUA7#..ARL202401-202411

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iAXUH7#,GSU7#202002-202210

89990ACOMPUTER ASSY, SMART KEY

main899H0-0E011iGSU7#202003-202210

main899H0-0E021iAXUH7#202002-202011

main899H0-0E050iAXUH7#202011-202208

main899H0-0E180iAXUH7#202209-202210

main899H0-0E190iAXUH78..RHD202210-202312

main899H0-0E210iTXUA75..RUS202210-202311

main899H0-0E260iAXUH70..LIMD202311-202410

main899H0-0E270iTXUA7#202311-202411

main899H0-0E460iTXUA7#202411

main899H0-0E470iAXUH78;AXUH70..LE,XLE202411

89997ANTENNA, ELECTRICAL KEY

main89997-0E050iAXUH78,TXUA7#..RHD202210-202312

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-08010iAXUH78,TXUA7#..RHD202210-202312

main899A0-0E150iAXUH70..LIMD202311-202410

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-0E160iAXUH70..LIMD202311-202410

main899A0-0R010iAXUH7#,GSU7#202002-202210

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-06030iAXUH7#,GSU7#202002-202210

main899A0-0A020iAXUH70..LIMD202311-202410

9008017244

main90080-17244

9011906A06

main90119-06A06

9011906A07

main90119-06A07

90119A0255

main90119-A0255

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
