OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-06021iGSU7#202003-202210

(L)

main89413-33041iTXUA75202311

AISIN AW:REFER 35-01

89413SSENSOR, TRANSMISSION REVOLUTION (NC)

main89413-06031iGSU7#202003-202210

(L)

main89413-33051iTXUA75202311

AISIN AW:REFER 35-01

9008010238

main90080-10238

90105A0079

main90105-A0079

9151180614

main91511-80614

9155180620

main91551-80620

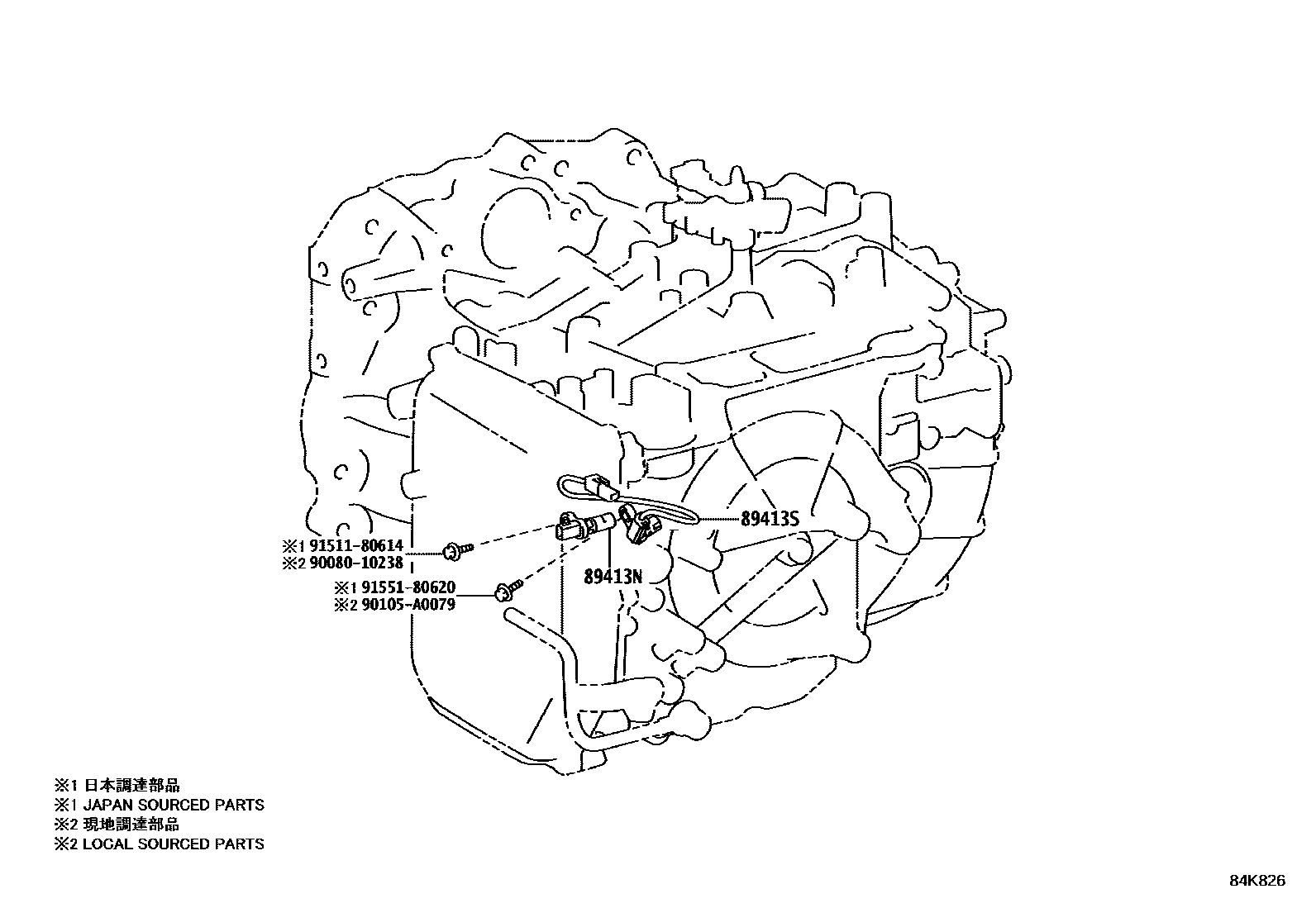

6 parts on this diagram · 1 diagram in section
