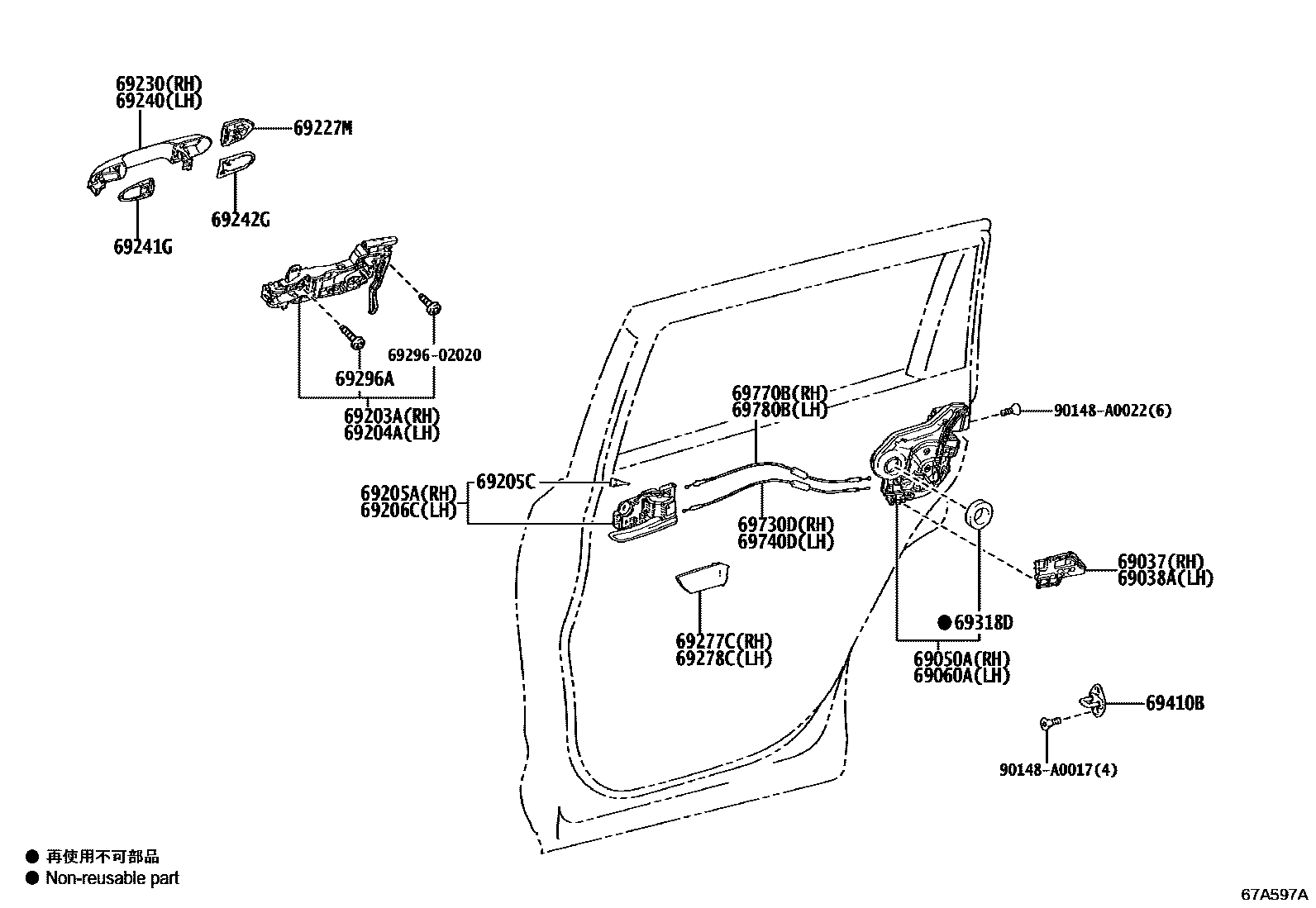

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
69227MCOVER, REAR DOOR OUTSIDE HANDLE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
PRECIOUS GALENA,1K5
CEMENT GRAY ME.,1H5
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,089 ,1H5 ,218 ,3T3
RED MC.,3T3
BLACKISH BROWN MC.,4X9
GREEN M.M.,6X5
DK. BLUE MC.,8X8
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
PRECIOUS GALENA,1K5
CEMENT GRAY ME.,1H5
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,089 ,1H5 ,218 ,3T3
RED MC.,3T3
BLACKISH BROWN MC.,4X9
GREEN M.M.,6X5
DK. BLUE MC.,8X8
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
90148A0017
main90148-A0017
90148A0022
main90148-A0022
26 parts on this diagram · 1 diagram in section
