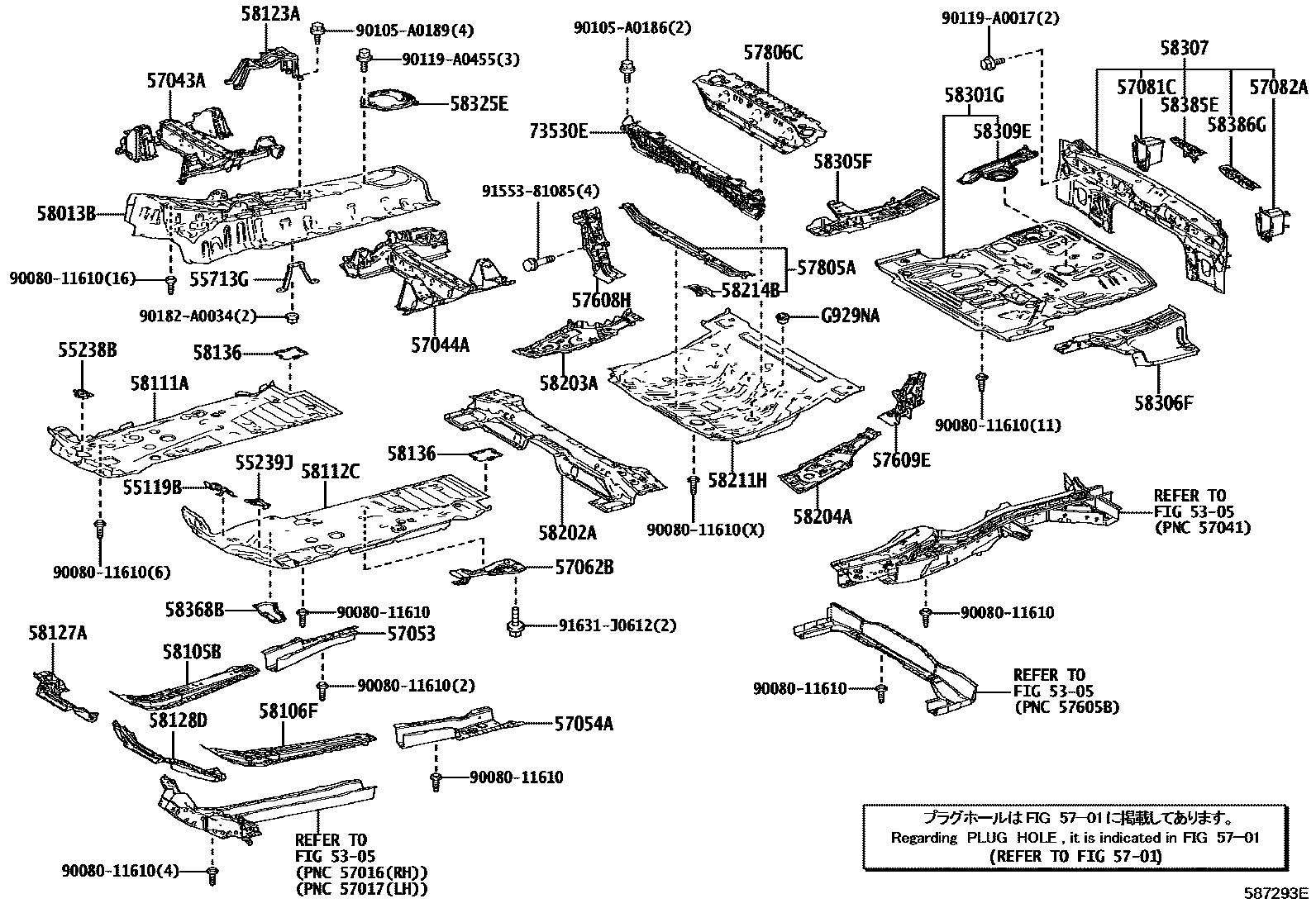

FLOOR PAN & LOWER BACK PANEL
5305
55119BEXTENSION, DASH PANEL, LH
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
55713GBRACKET, FRONT LOWER PANEL
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57081CBRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
57082ABRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57608HREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, RH
57609EREINFORCE SUB-ASSY, SIDE MEMBER TO FLOOR, LH
57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57806CREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58123ASUPPORT, SHIFT & SELECT LEVER
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58136COVER, FRONT FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
58214BPANEL, SEAT FLOOR SIDE, LH
58301GPAN SUB-ASSY, REAR FLOOR
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58325ECOVER, REAR FLOOR SERVICE HOLE
58368BBRACKET, FUEL TUBE, NO.2
58385EBRACKET, REAR BUMPER COVER, RH
58386GBRACKET, REAR BUMPER COVER, LH
73530EPANEL ASSY, REAR SEAT SUB FLOOR
G929NAPLUG, BATTERY DRAIN
9008011610
main90080-11610
90105A0186
main90105-A0186
90105A0189
main90105-A0189
90119A0017
main90119-A0017
90119A0455
main90119-A0455
90182A0034
main90182-A0034
9155381085
main91553-81085
91631J0612
main91631-J0612
50 parts on this diagram · 8 diagrams in section
