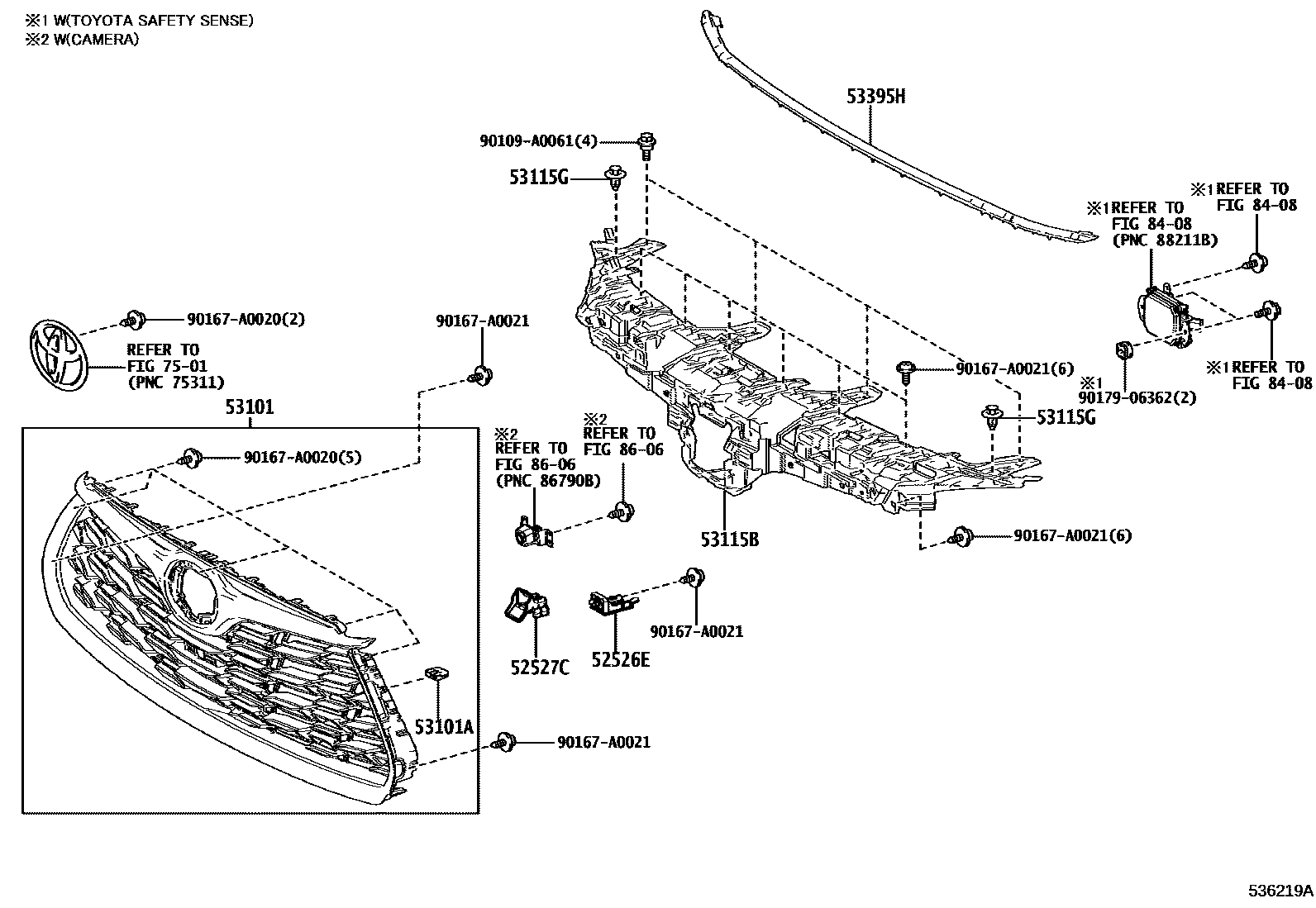

RADIATOR GRILLE

0001 1 0002 1HYBRID SPECIAL EDITION

52526ERETAINER, FRONT BUMPER, LOWER NO.1

main52526-02030iAXUH7#,TXUA75..LHD202210-202311

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02020iAXUH7#,GSU7#202002-202210

53101GRILLE SUB-ASSY, RADIATOR

main53101-0E330supersedes 53101-0E371iAXUH78,TXUA7#..LIMD..ARL202210-202312

PLATED,PLATINUM PACKAGE

main53101-0E340iTXUA75..LIMD..RUS202311

PLATED

main53101-0E360iAXUH7#,GSU7#..LE,XLE202002-202210

NO PAINT REQ.

main53101-0E361iAXUH7#,TXUA7#..LE,XLE202402

NO PAINT REQ.

main53101-0E500iAXUH78..XLE..GCC202311-202401

NO PAINT REQ.,HYBRID SPECIAL EDITION

main53101-0E501iAXUH78..XLE..GCC202402

NO PAINT REQ.,HYBRID SPECIAL EDITION

53101ACLIP, RADIATOR GRILLE

main90467-08229×38iAXUH7#,TXUA75..LHD202210-202311

53115BBRACKET, RADIATOR GRILLE

main53115-0E010iAXUH78,TXUA7#;AXUH70..LE,XLE202311

53115GCLIP, RADIATOR GRILLE BRACKET

main90467-05063-C0×2iAXUH7#,TXUA75..LHD202210-202311

BLACK

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-0E080iAXUH78,TXUA7#..RHD202210-202312

7501

8408

8606

90109A0061

main90109-A0061

90167A0020

main90167-A0020

90167A0021

main90167-A0021

9017906362

main90179-06362

14 parts on this diagram · 2 diagrams in section
