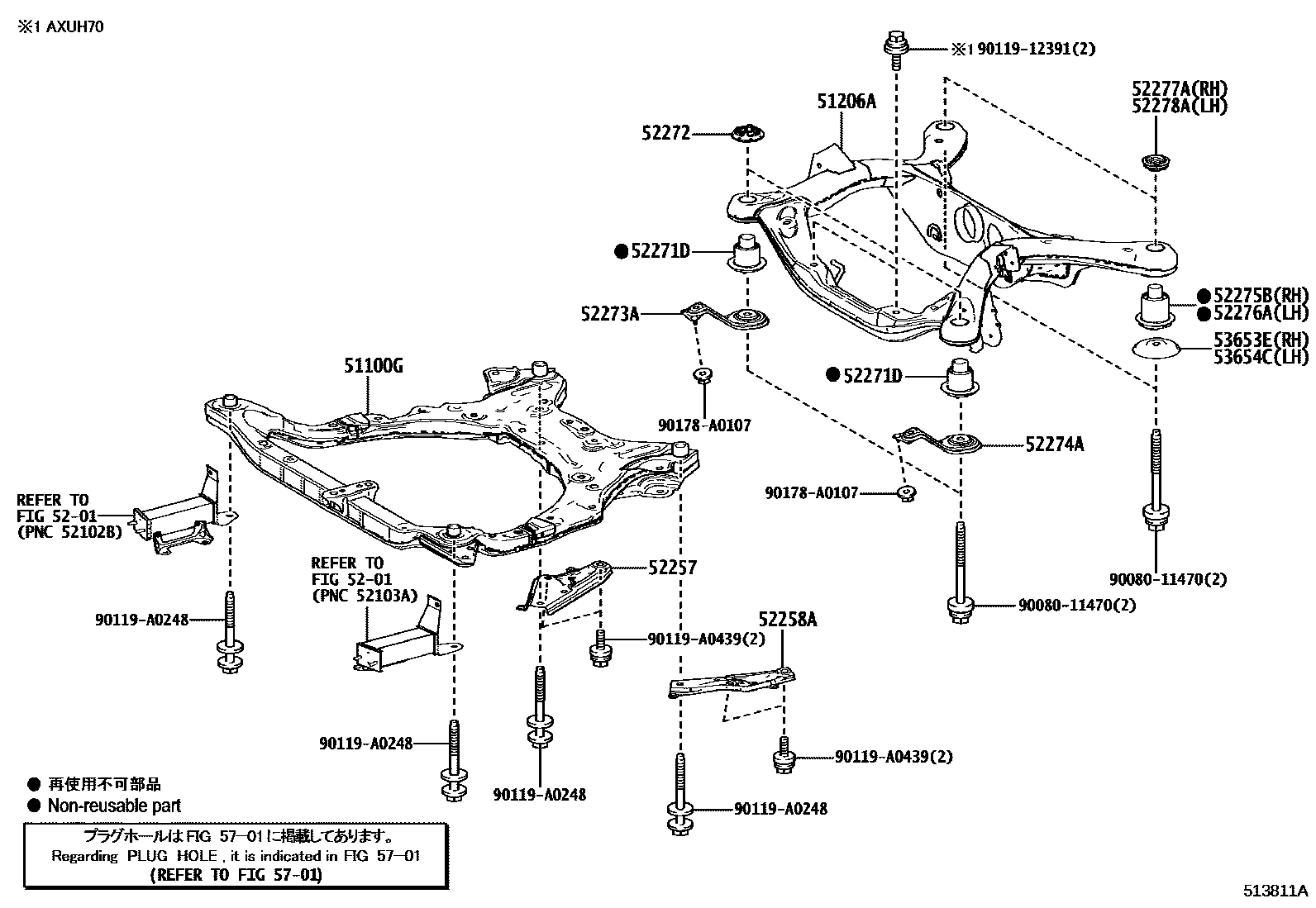

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER 0005 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-0E081iAXUH7#,GSU7#202002-202210

main51100-0E131iAXUH78,TXUA7#;AXUH70..LE,XLE202311

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0E043iTXUA75..RUS202210-202311

main51206-0E082iAXUH70..LIMD202311-202410

5201

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-0R040iAXUH7#,GSU7#202002-202210

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-0R040iAXUH7#,GSU7#202002-202210

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-0E090×2iAXUH7#,GSU7#202002-202210

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-0E090×2iAXUH7#,GSU7#202002-202210

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-0E050iAXUH7#,GSU7#202002-202210

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-0E030iAXUH7#,GSU7#202002-202210

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-0E080iAXUH7#,GSU7#202002-202210

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-0E030iAXUH7#,GSU7#202002-202210

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E080iAXUH7#,GSU7#202002-202210

52278ARETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH

main52277-0E080iAXUH78,TXUA7#..RHD202210-202312

53653EBRACE, REAR SUSPENSION, LOWER RH

main53653-0E010iAXUH70..LIMD202311-202410

53654CBRACE, REAR SUSPENSION, LOWER LH

main53653-0E010iAXUH70..LIMD202311-202410

5701

9008011470

main90080-11470

9011912391

main90119-12391

90119A0248

main90119-A0248

90119A0439

main90119-A0439

90178A0107

main90178-A0107

21 parts on this diagram · 5 diagrams in section
