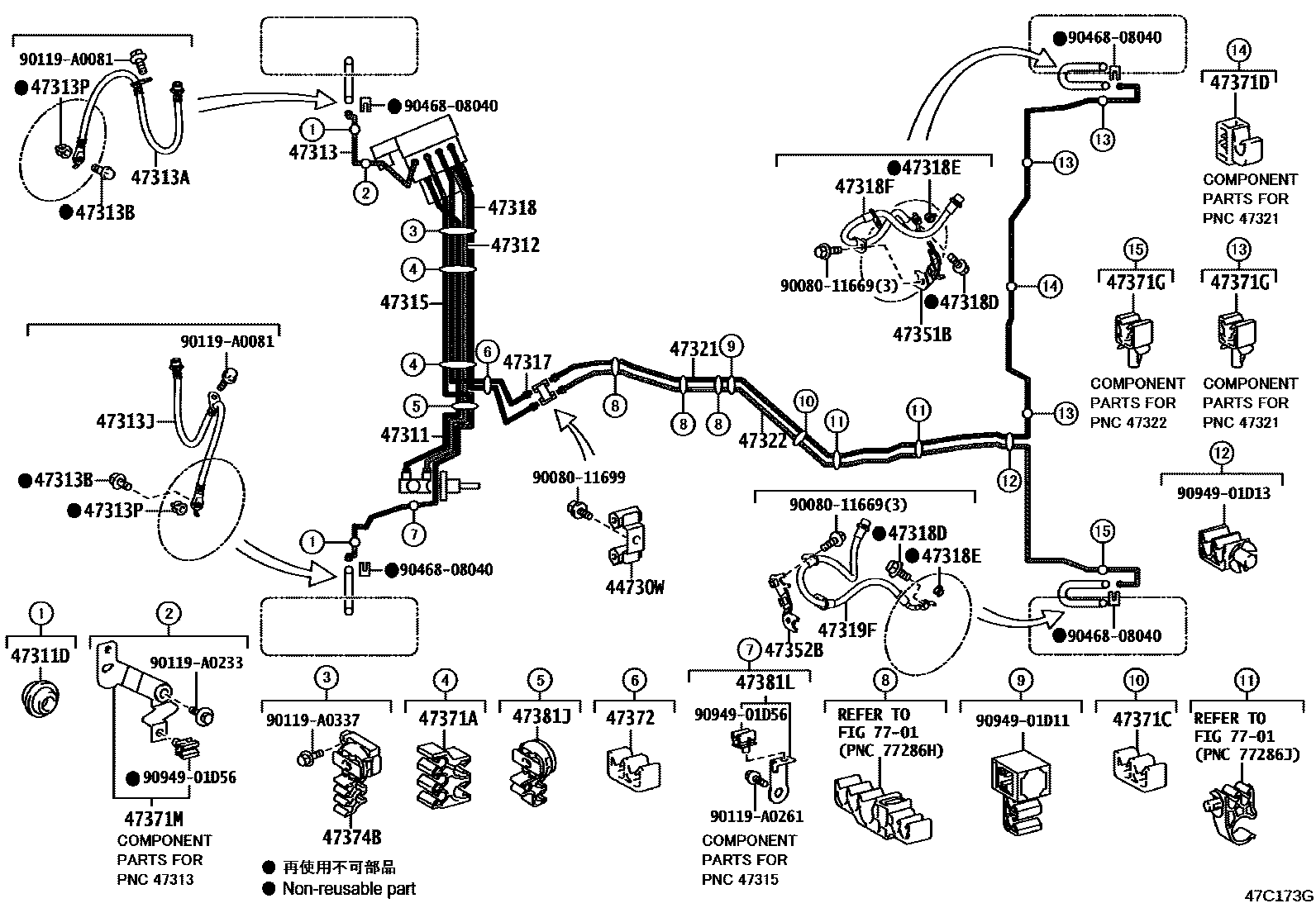

BRAKE TUBE & CLAMP
44730WWAY, 2(FOR FRONT BRAKE TUBE)
NO.1
NO.2
NO.1
47311TUBE, FRONT BRAKE, NO.1
47311DGROMMET(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
(J)
(L)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47351BBRACKET, FLEXIBLE HOSE, NO.1
47352BBRACKET, FLEXIBLE HOSE, NO.2
47371ACLAMP, BRAKE TUBE, NO.1
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371GCLAMP, BRAKE TUBE, NO.11
47371MCLAMP, BRAKE TUBE, NO.13
47372CLAMP, BRAKE TUBE, NO.2
47374BCLAMP, BRAKE TUBE, NO.4
47381BRACKET, BRAKE TUBE CLAMP NO.1
47381JBRACKET, BRAKE TUBE CLAMP, NO.2
47381LBRACKET, BRAKE TUBE CLAMP, NO.3
7701
9008011669
main90080-11669
9008011699
90119A0081
main90119-A0081
90119A0233
main90119-A0233
90119A0261
main90119-A0261
90119A0337
main90119-A0337
9046808040
9094901D11
9094901D13
9094901D56
41 parts on this diagram · 9 diagrams in section
