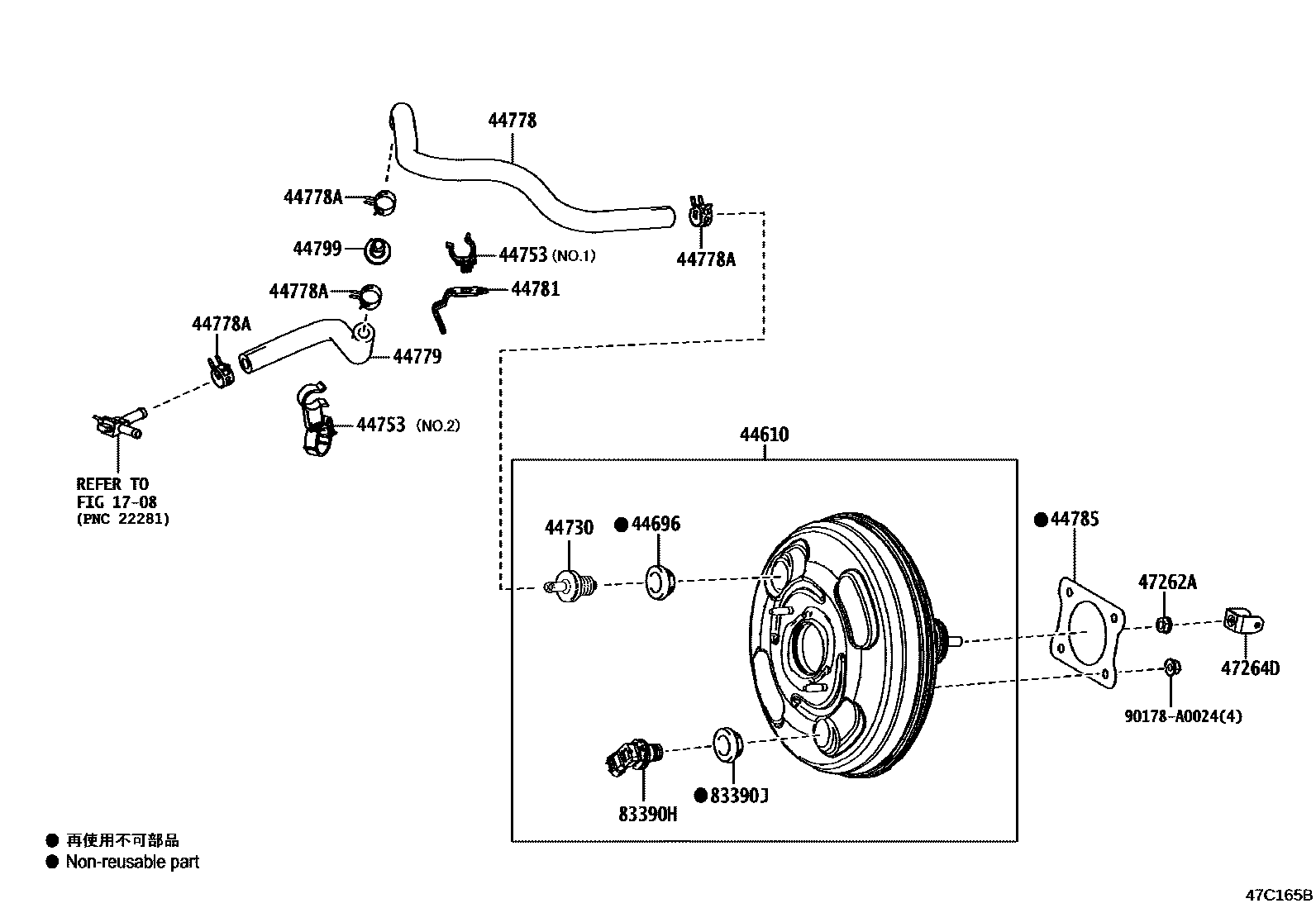

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1708

44610BOOSTER ASSY, BRAKE

main44610-0E200iTXUA75..RUS202003-202311

main44610-0E210iGSU7#..ARL202012-202210

main44610-0E211iTXUA7#..ARL202210-202312

44696GROMMET, CHECK VALVE

main90080-48071iTXUA7#..ARL202003-202312

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-30060iGSU7#202003-202311

main44730-52010iTXUA7#..ARL202210-202312

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-30320iGSU75..RUS202003-202210

NO.1

main44753-48340iGSU75..RUS202003-202210

NO.2

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-0E010iGSU75..RUS202003-202210

44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

main90467-16014iGSU75..RUS202003-202311

44779HOSE, UNION TO CONNECTOR

main44779-0E010iGSU75..RUS202003-202210

44781BRACKET, HOSE

main44781-0E010iGSU75..RUS202003-202210

44785GASKET, BRAKE BOOSTER

main44785-02060iGSU7#202003-202312

44799WAY, BRAKE VACUUM HOSE

main44799-0E010iGSU75..RUS202003-202210

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main90179-10065iGSU7#202003-202312

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0R020iGSU75202003-202004

main47264-42020iGSU7#202005-202312

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGSU75..RUS202003-202311

83390JGROMMET, VACUUM WARNING SWITCH

main90080-48071iGSU75..RUS202003-202311

90178A0024

main90178-A0024

16 parts on this diagram · 4 diagrams in section
