STEERING WHEEL

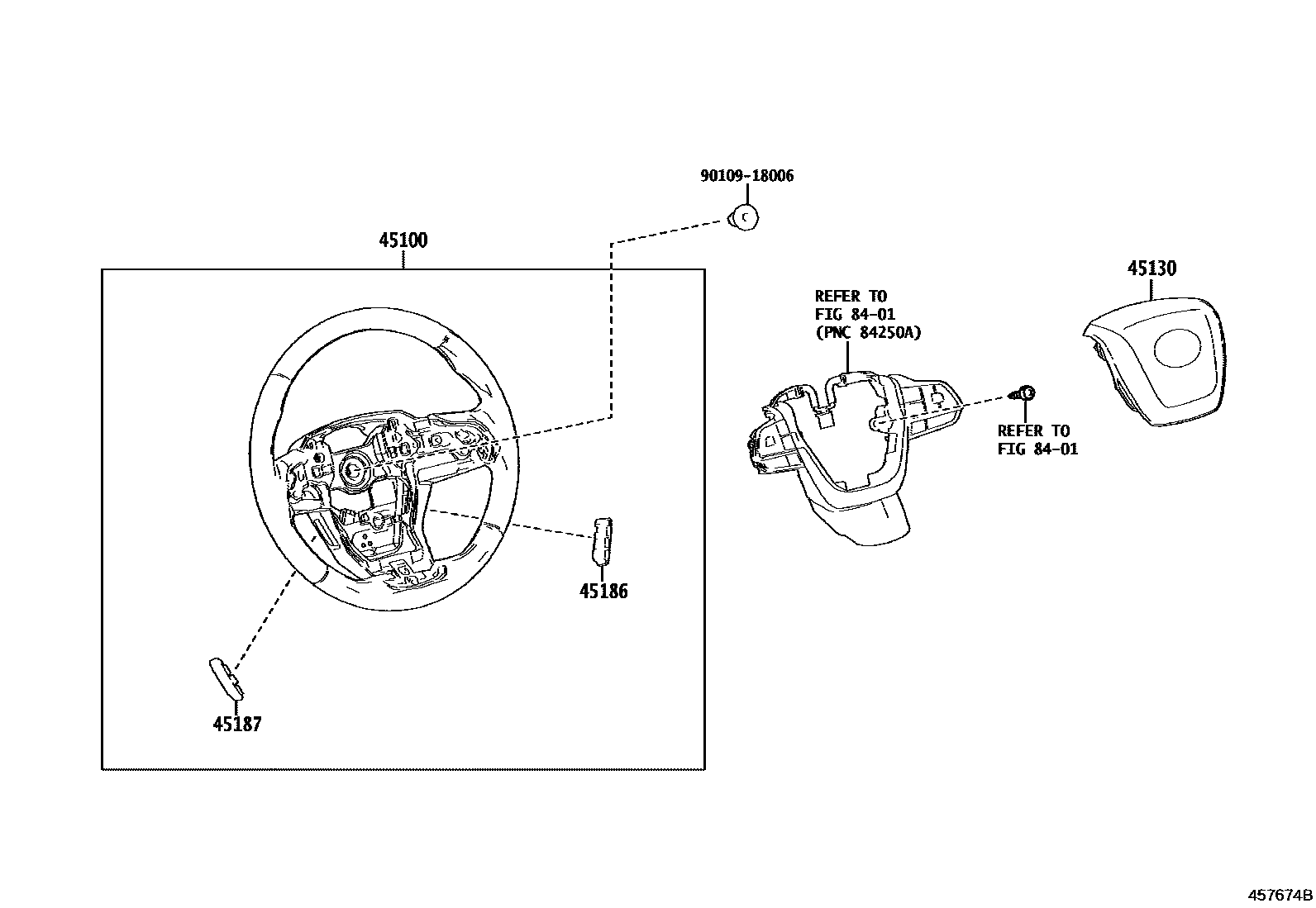

Parts diagram

45100WHEEL ASSY, STEERING

main45100-0E510-C1i202002-202311

3-SPOKE,URETHANE,BLACK,TRIM1#,2#

main45100-0E520-C1i202002-202311

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

main45100-0E520-C1i202002-202410

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

main45100-0E520-C1i202210-202311

3-SPOKE,LEATHER,BLACK,TRIM10,2#

main45100-0E520-C1i202311

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,40

main45100-0E520-C1i202311

3-SPOKE,LEATHER,BLACK,TRIM1#,20

main45100-0E520-C2i202311

3-SPOKE,LEATHER,BLACK/BLACK/BLACK,TRIM20

main45100-0E520-C2i202311

3-SPOKE,LEATHER,BLACK/BLACK/BLACK,TRIM42

main45100-0E520-C2i202210-202311

3-SPOKE,LEATHER,BLACK/BLACK/BLACK,TRIM13

main45100-0E530-C1i202210-202311

3-SPOKE,LEATHER,WINTER PACKAGE,BLACK,TRIM1#,2#,4#

main45100-0E530-C1i202003-202311

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

main45100-0E540-C1i202011-202311

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

main45100-0E550-C1i202011-202210

3-SPOKE,LEATHER,WINTER PACKAGE,BLACK,TRIM1#,2#,4#

main45100-0E550-C1i202011-202312

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

main45100-0E550-C1i202011-202210

3-SPOKE,LEATHER,PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#

45130BUTTON ASSY, HORN

main45130-0E140-C0i202002-202110

BLACK,TRIM1#,2#,4#

main45130-0E140-C0i202002-202110

BLACK,TRIM1#,2#

main45130-0E180-C0i202110-202410

BLACK,TRIM1#,2#,4#

main45130-0E180-C0i202110-202311

BLACK,TRIM1#,2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-0E050-C0i202002-202410

BLACK,TRIM1#,2#,4#

main45186-0E050-C0i202002-202311

BLACK,TRIM1#,2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-0E040-C0i202002-202311

BLACK,TRIM1#,2#

main45187-0E040-C0i202002-202410

BLACK,TRIM1#,2#,4#

8401

9010918006

main90109-18006

6 parts on this diagram · 2 diagrams in section
