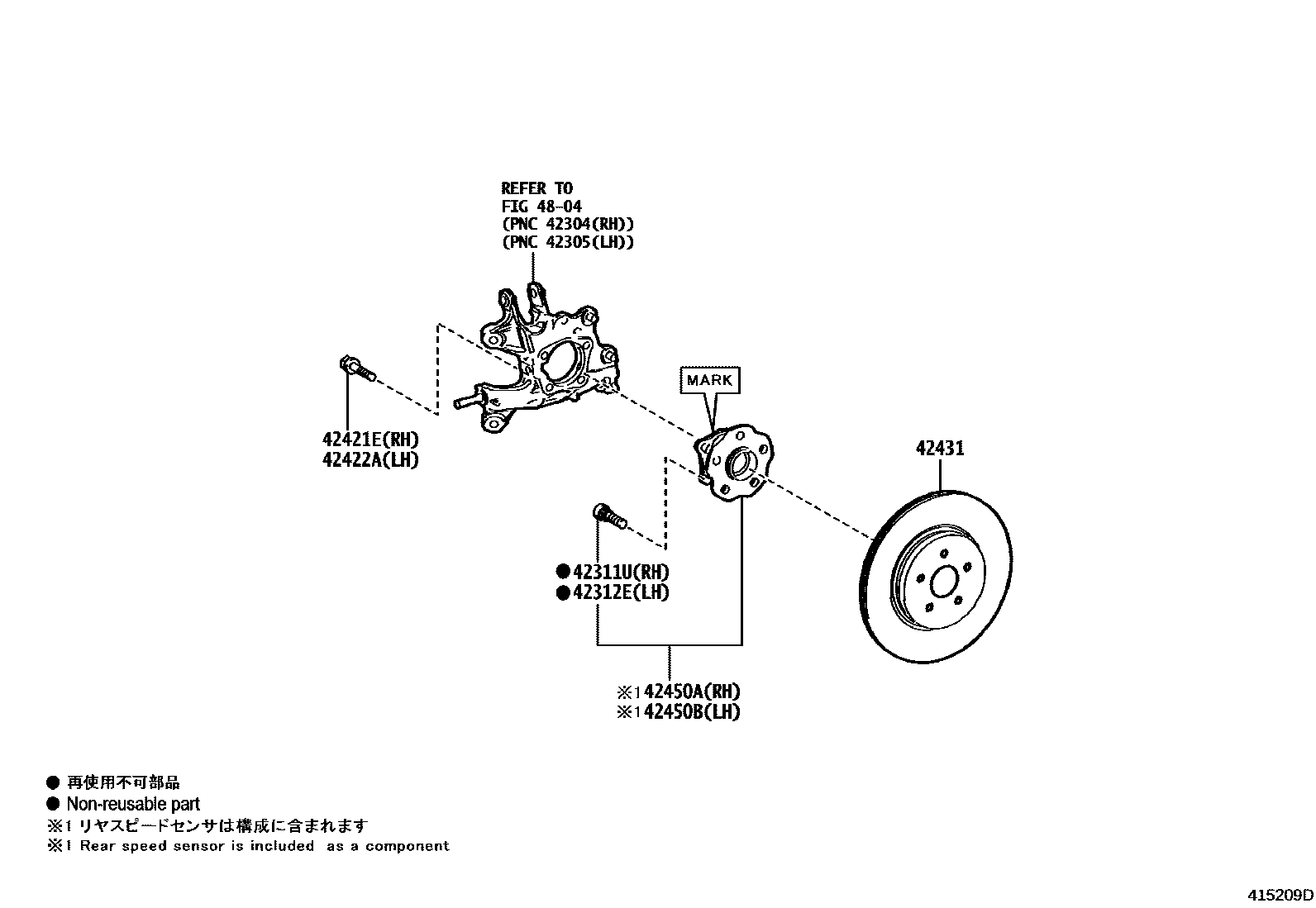

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iAXUH7#,GSU7#202002-202410

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iAXUH7#,GSU7#202002-202410

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-A0416iAXUH7#,GSU7#202002-202410

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-A0416iAXUH7#,GSU7#202002-202410

42431DISC, REAR

main42431-0E070iAXUH78,TXUA7#..RHD202002-202410

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0E031iAXUH78,TXUA75202002-202312

main42450-0E080iAXUH70202002-202012

main42450-0E090iAXUH70..LIMD202311-202410

MARK=AISIN

main42450-0E090iAXUH70,GSU70202012-202311

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0E031iAXUH78,TXUA75202002-202312

main42450-0E080iAXUH70202002-202012

main42450-0E090iAXUH70,TXUA70202012-202311

main42450-0E090iAXUH70..LIMD202311-202410

MARK=AISIN

4804

8 parts on this diagram · 3 diagrams in section
