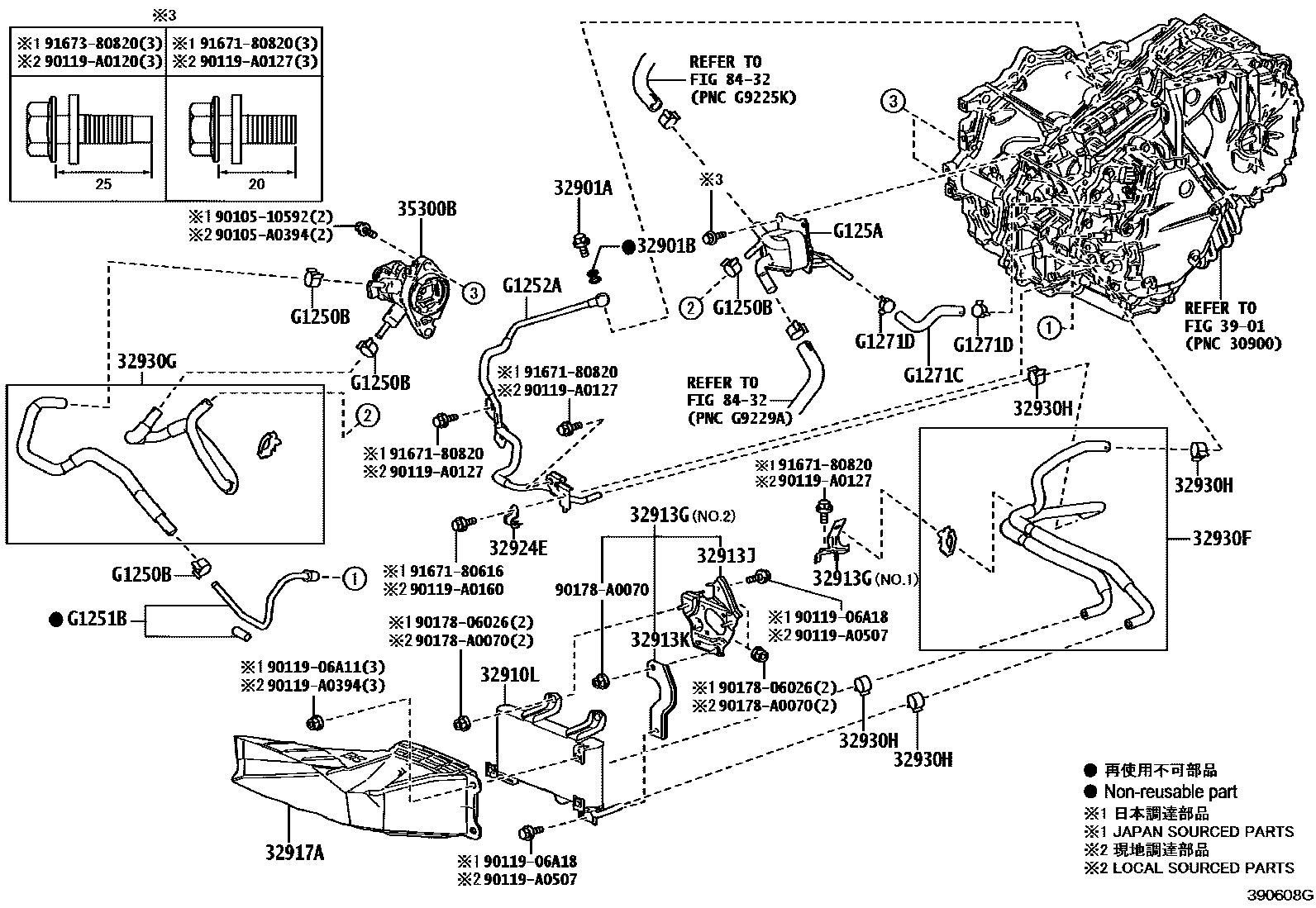

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXUH78..RHD202002-202410

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXUH78;AXUH70..LE,XLE202002-202410

32910LCOOLER ASSY, OIL

main32910-0E080iAXUH78..RHD202002-202312

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-0E030iAXUH78..RHD202002-202312

NO.1

main32913-0E060iAXUH78..RHD202002-202312

NO.2

32913JBRACKET, TRANSMISSION OIL COOLER, NO.2

main32913-0E020iAXUH78..RHD202002-202312

32913KBRACKET, TRANSMISSION OIL COOLER, NO.3

main32913-0E040iAXUH7#..LHD202002-202312

32917ADUCT, TRANSMISSION OIL COOLER AIR

main32917-0E080iAXUH7#202002-202312

32924ECLAMP, OIL COOLER TUBE, NO.2

main32924-0E010iAXUH7#202002-202312

32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1

main32930-0E160iAXUH7#..LHD202002-202312

32930GHOSE ASSY, TRANSMISSION OIL COOLER, NO.2

main32930-0E170iAXUH78..RHD202002-202312

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAXUH78..RHD202002-202312

(J)

main90466-A0014iAXUH78..RHD202002-202312

(L)

35300BPUMP ASSY, OIL W/MOTOR

main35300-48070iAXUH7#202002-202312

3901

8432

G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)

main90466-16004iAXUH78..RHD202002-202410

(J)

main90466-A0014iAXUH78..RHD202002-202410

(L)

G1251BPIPE, MOTOR COOLING, NO.1

mainG12510E010iAXUH7#202002-202312

G1252APIPE, MOTOR COOLING, NO.2

mainG12520E020iAXUH7#202002-202312

G125ACOOLER, MOTOR COOLING

mainG125A48020iAXUH7#..LHD202002-202410

G1271CHOSE, MOTOR COOLING, NO.1

mainG12710E030iAXUH7#202002-202312

mainG12810E060iAXUH70..LIMD202311-202410

G1271DCLIP, NO.1(FOR MOTOR COOLING HOSE)

main90466-16004iAXUH7#..LHD202105-202410

(J)

main90466-A0014iAXUH7#..LHD202105-202410

(L)

main90466-A0014iAXUH7#202002-202105

9010510592

main90105-10592

90105A0394

main90105-A0394

9011906A11

main90119-06A11

9011906A18

main90119-06A18

90119A0120

main90119-A0120

90119A0127

main90119-A0127

90119A0160

main90119-A0160

90119A0394

main90119-A0394

90119A0507

main90119-A0507

9017806026

main90178-06026

90178A0070

main90178-A0070

9167180616

main91671-80616

9167180820

main91671-80820

9167380820

main91673-80820

34 parts on this diagram · 2 diagrams in section
