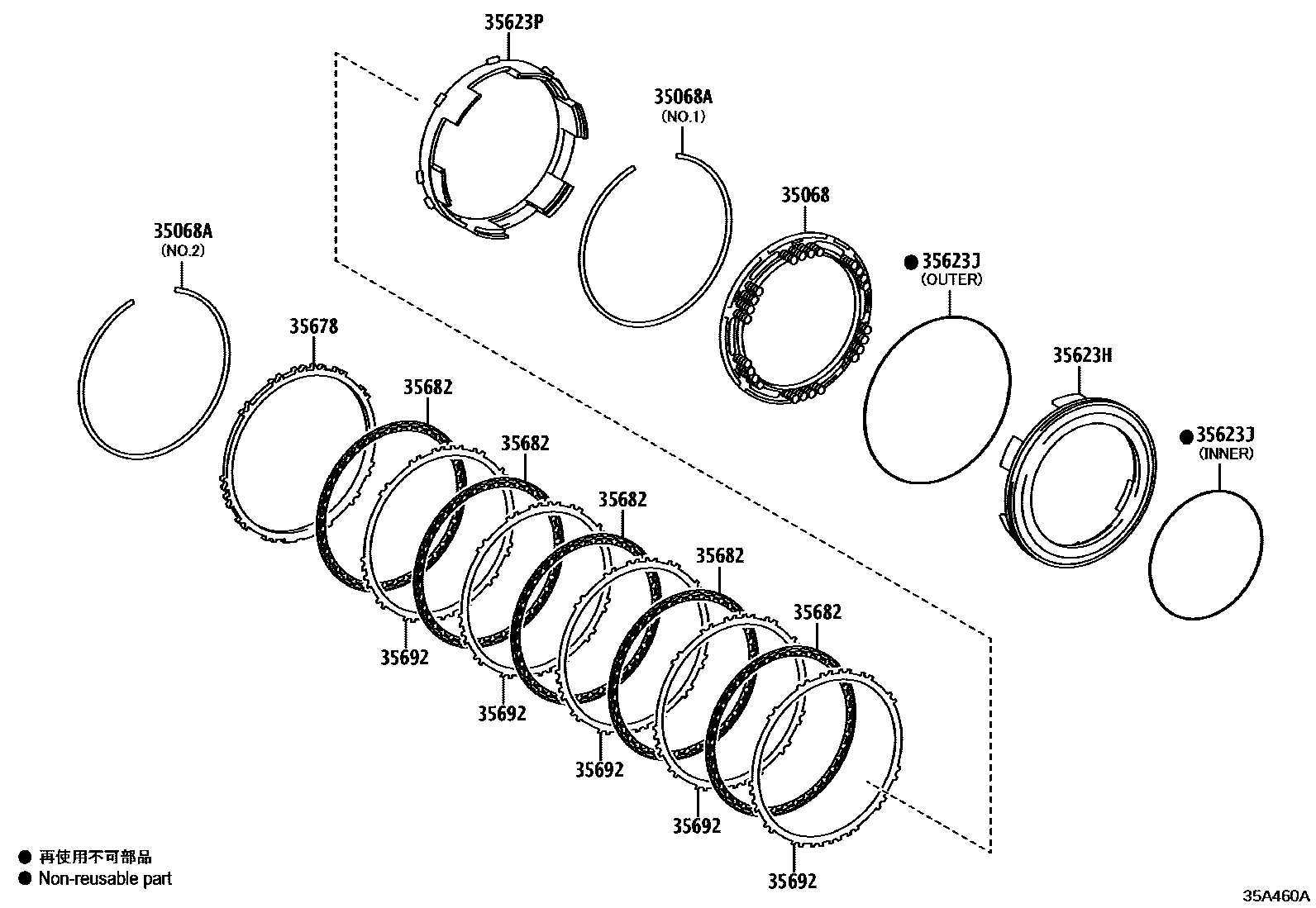

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
NO.2,AISIN:SEE 35-01
NO.1
NO.2,TMMWV:SEE 35-01,NO.2,AISIN AW:SEE
NO.2,TMMWV:SEE 35-01
NO.2,AISIN AW:SEE
NO.1,AISIN AW:SEE
(J),NO.2
NO.1,AISIN:SEE 35-01
NO.1,TMMWV:SEE 35-01
(L),NO.2
35623HPISTON, 1ST & REVERSE BRAKE
TMMWV:REFER 35-01
AISIN:REFER 35-01
AISIN AW:REFER 35-01
35623JRING, O (FOR 1ST & REVERSE BRAKE)
INNER
OUTER
OUTER
INNER
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
TMMWV:REFER 35-01
AISIN AW:REFER 35-01
AISIN:REFER 35-01
35678FLANGE, BRAKE(FOR 2ND BRAKE)
T=5.0,MARK 0,MADE IN TMMNA
T=5.1,MARK 1,MADE IN TMMNA
T=5.2,MARK 2,MADE IN TMMNA
T=5.3,MARK 3,MADE IN TMMNA
T=5.4,MARK 4,MADE IN TMMNA
T=5.5,MARK 5,MADE IN TMMNA
T=5.6,MARK 6,MADE IN TMMNA
T=5.0,MARK 0,TMMWV:REFER 35-01
T=5.1,MARK 1,TMMWV:REFER 35-01
T=5.2,MARK 2,TMMWV:REFER 35-01
T=5.3,MARK 3,TMMWV:REFER 35-01
T=5.4,MARK 4,TMMWV:REFER 35-01
T=5.5,MARK 5,TMMWV:REFER 35-01
T=5.6,MARK 6,TMMWV:REFER 35-01
T=5.0,MARK 0,AISIN AW:REFER 35-01
T=5.1,MARK 1,AISIN AW:REFER 35-01
T=5.2,MARK 2,AISIN AW:REFER 35-01
T=5.3,MARK 3,AISIN AW:REFER 35-01
T=5.4,MARK 4,AISIN AW:REFER 35-01
T=5.5,MARK 5,AISIN AW:REFER 35-01
T=5.6,MARK 6,AISIN AW:REFER 35-01
T=5.0,MARK 0,AISIN AW:REFER 35-01
T=5.0,MARK 0,AISIN:REFER 35-01
T=5.1,MARK 1,AISIN AW:REFER 35-01
T=5.1,MARK 1,AISIN:REFER 35-01
T=5.2,MARK 2,AISIN AW:REFER 35-01
T=5.2,MARK 2,AISIN:REFER 35-01
T=5.3,MARK 3,AISIN:REFER 35-01
T=5.3,MARK 3,AISIN AW:REFER 35-01
T=5.4,MARK 4,AISIN AW:REFER 35-01
T=5.4,MARK 4,AISIN:REFER 35-01
T=5.5,MARK 5,AISIN AW:REFER 35-01
T=5.5,MARK 5,AISIN:REFER 35-01
T=5.6,MARK 6,AISIN AW:REFER 35-01
T=5.6,MARK 6,AISIN:REFER 35-01
35682DISC, BRAKE(FOR 2ND BRAKE)
(L)
TMMWV:REFER 35-01
(J)
AISIN AW:REFER 35-01
AISIN:REFER 35-01
35692PLATE, BRAKE(FOR 2ND BRAKE)
(L)
TMMWV:REFER 35-01
AISIN:REFER 35-01
(J)
AISIN AW:REFER 35-01
8 parts on this diagram · 1 diagram in section
