SHORT BLOCK ASSEMBLY

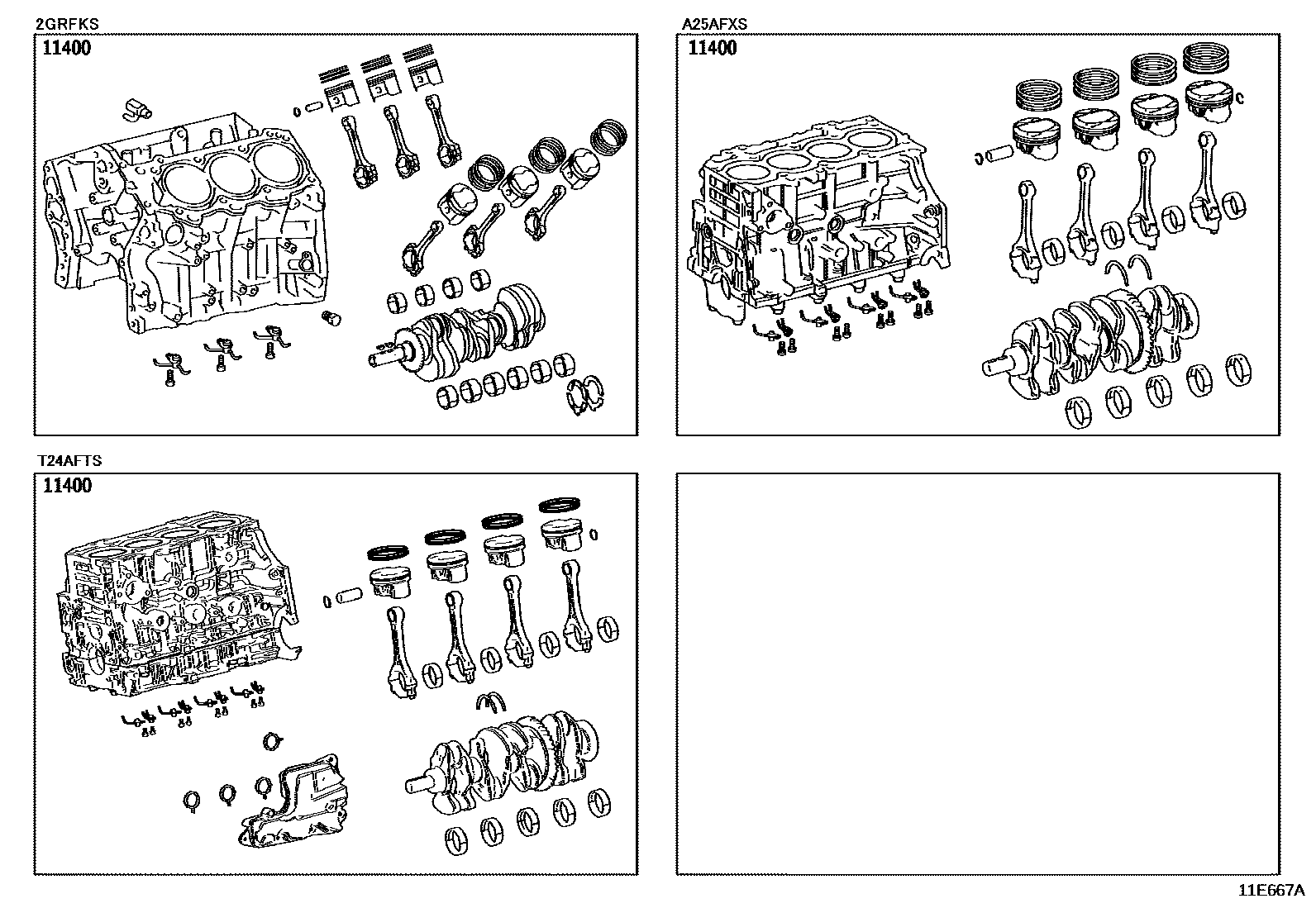

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0P110i202003-202210

main11400-F0040i202002-202208

main11400-F0110i202210-202312

main11400-F0120i202208-202410

1 parts on this diagram · 1 diagram in section
