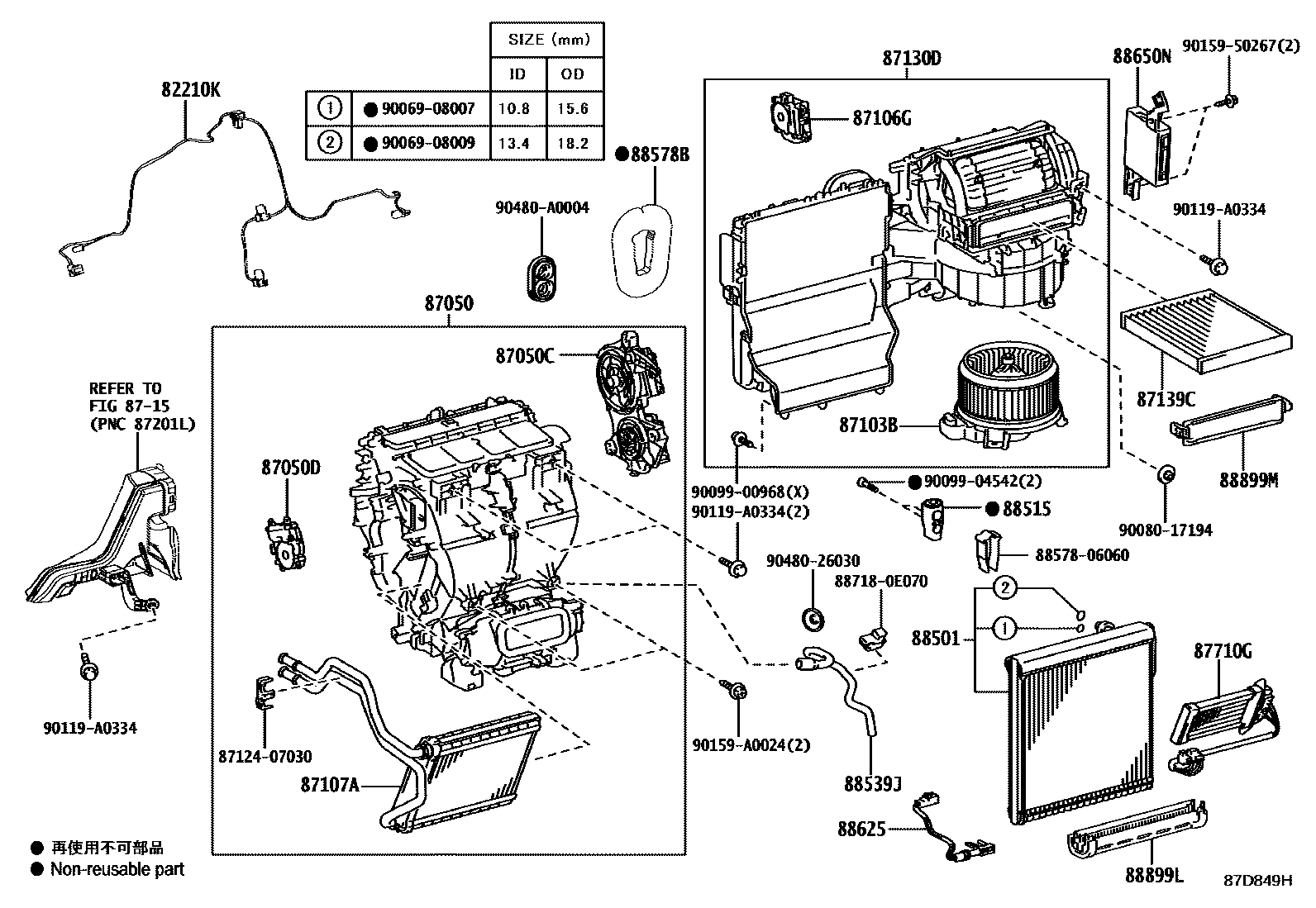

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT,AUTO AIR CONDITIONER 0002 1FRONT,MANUAL AIR CONDITIONER 0003 1FRONT,AUTO AIR CONDITIONER 0004 1REAR,AIR CONDITIONER

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06121iASU50,GSU55..RUS201611

main82212-0E040supersedes 82212-0E030iGSU5#..LE..ARL201312-201611

LEATHER PACKAGE&FRONT AIR CONDITIONER-AUTO

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0E080iASU50,GSU55..RUS201312-201611

main87050-0E150supersedes 87050-0E140iGSU5#..LE..ARL201312-201611

LEATHER PACKAGE&FRONT AIR CONDITIONER-AUTO

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-07110iASU50,GSU5#201312-201602

main87106-0E140iASU50,GSU5#201603-201611

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-07120iGSU5#..LE..ARL201312-201602

LEATHER PACKAGE&FRONT AIR CONDITIONER-AUTO

main87106-0E150iGSU5#..LE..ARL201603-201611

LEATHER PACKAGE&FRONT AIR CONDITIONER-AUTO

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E040iASU50,GSU55..RUS201312-201611

main87103-48070iGSU5#..ARL201611

87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-07140iASU50,GSU55..RUS201611

main87106-33280iGSU5#..ARL201611

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07030iASU50,GSU5#201611

87130DBLOWER ASSY

main87130-0E100iASU50,GSU55..RUS201312-201601

main87130-0E101iASU50,GSU55..RUS201611

main87130-0E110iGSU5#..ARL201312-201507

sub88578-0E120

main87130-0E111iGSU5#..ARL201507-201611

87139CFILTER, CLEAN AIR

main87139-07020iASU50,GSU5#201312-201611

POLLEN FILTER

main87139-50100iASU50,GSU5#201611

POLLEN DEODORANT

8715

87710GQUICK HEATER ASSY

main87710-0E020iASU50,GSU55..RUS201312-201611

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06230iASU50,GSU5#201312-201611

88515VALVE, COOLER EXPANSION

main88515-02530iASU50,GSU5#201312-201611

88539JHOSE, DRAIN COOLER

main88539-0E010iASU50,GSU5#201312-201611

main88539-0E090iASU50,GSU5#201611

88578BPACKING, COOLING UNIT, NO.1

main88578-0E070iASU50,GSU5#201611

88625THERMISTOR, COOLER, NO.1

main88620-06020iASU50,GSU5#201312-201611

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0E320supersedes 88650-0E290iGSU5#..LE..ARL201312-201505

LEATHER PACKAGE&FRONT AIR CONDITIONER-AUTO&REAR AIR CONDITIONER-AUTO

main88650-0E321supersedes 88650-0E291iGSU5#..LE..ARL201505-201611

LEATHER PACKAGE&FRONT AIR CONDITIONER-AUTO&REAR AIR CONDITIONER-AUTO

main88650-0E322supersedes 88650-0E292iGSU5#..LE..ARL201611

LEATHER PACKAGE

main88650-0E340iASU50,GSU55..RUS201312-201505

main88650-0E341iASU50,GSU55..RUS201505-201611

main88650-0E342iASU50,GSU55..RUS201611

88899LPARTS, COOLING UNIT

main88899-06100iASU50,GSU5#201312-201611

88899MPLATE, COVER(FOR AIR FILTER)

main88899-07010iASU50,GSU5#201312-201611

8712407030CLAMP, HEATER

main87124-07030

8857806060PAKING, COOLER AIR DUCT

main88578-06060

887180E070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0E070

9006908007

main90069-08007

9006908009

main90069-08009

9008017194

main90080-17194

9009900968

main90099-00968

9009904542

main90099-04542

90119A0334

main90119-A0334

9015950267

main90159-50267

90159A0024

main90159-A0024

9048026030

main90480-26030

90480A0004

main90480-A0004

32 parts on this diagram · 4 diagrams in section
