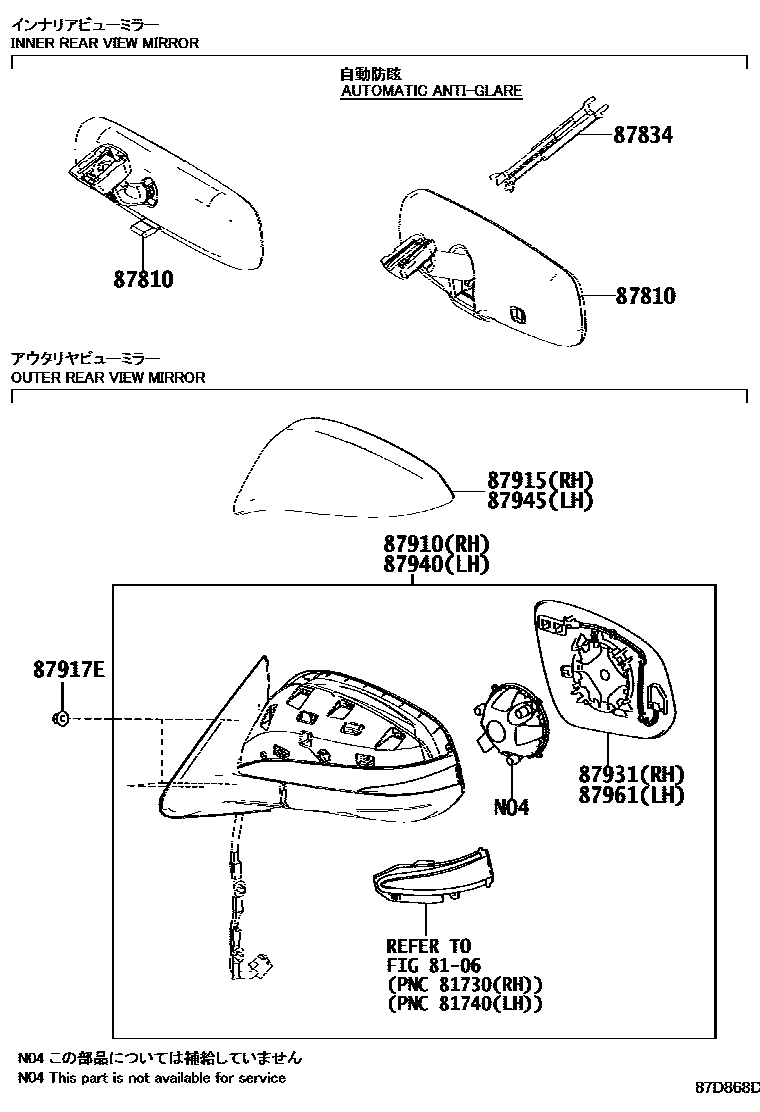

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
GSP WITH TSR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BACK MONITOR-PANORAMIC VIEW MONITOR
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
87917ENUT, OUTER MIRROR
OD=13.6
OD=14
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BACK MONITOR-PANORAMIC VIEW MONITOR
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1D6
GRAY M.M.,1H1
SILVER ME.,1J9
ATTITUDE BLACK MC.,218
DK.RED M.M.,3T0
DK. RED M.M.,3Q3
DARK SHERRY M.M.,4W4
LT.YELLOW M.M.,5B2
ALUMINA JADE ME.,6W4
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
87961MIRROR OUTER, LH
10 parts on this diagram · 2 diagrams in section
