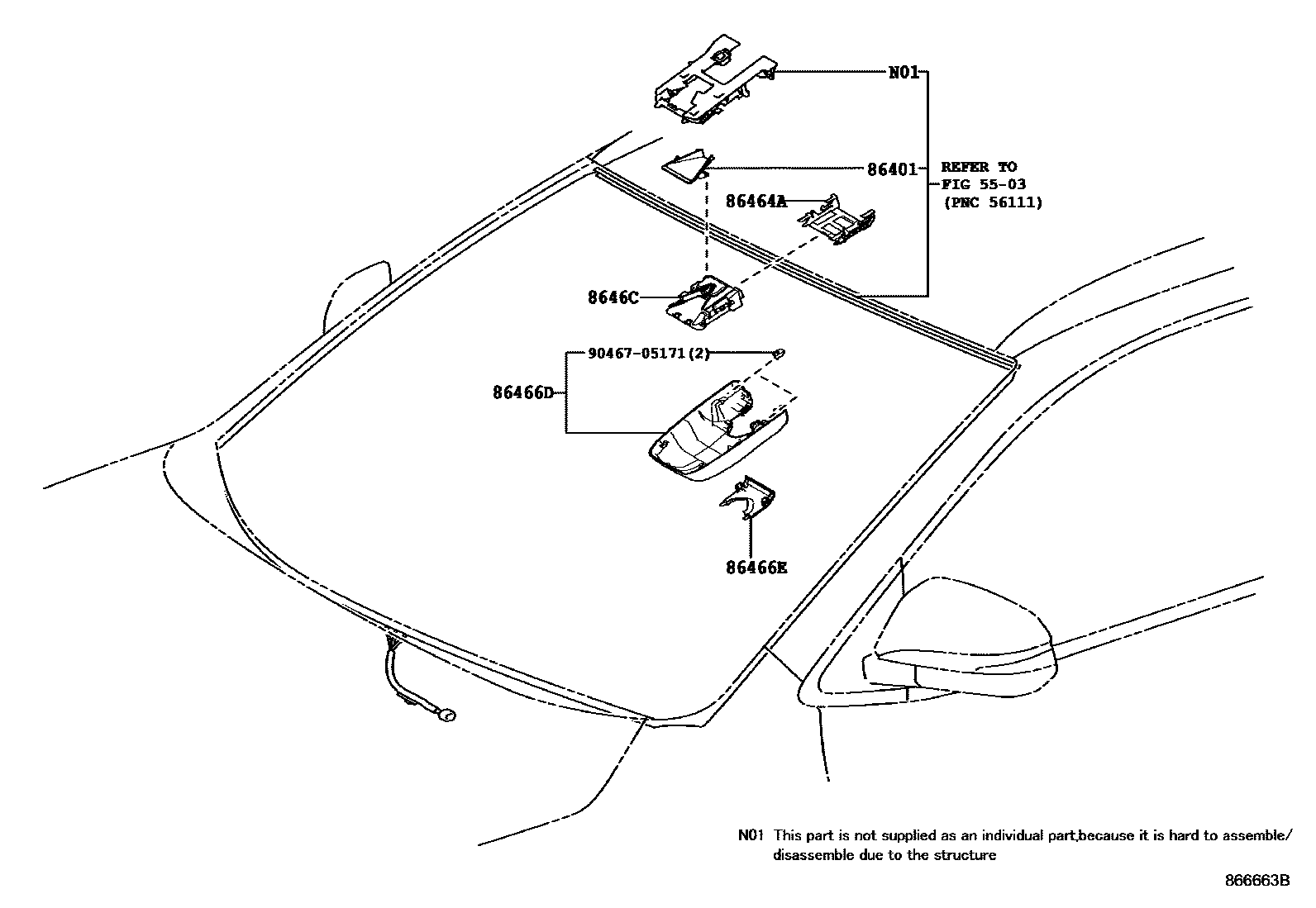

PRE-COLLISION SYSTEM

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-48020iGSU5#..LIMD..ARL201611-201911

GSP WITH TSR

main86401-48020iGSU5#..LE..ARL201710-201911

86464ALATCH, FORWARD RECOGNITION

main86464-48011iGSU5#..LIMD..ARL201611-201911

GSP WITH TSR

main86464-48011iGSU5#..LE..ARL201710-201911

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-48061iGSU5#..LIMD..ARL201611-201911

GSP WITH TSR

main86466-48061iGSU5#..LE..ARL201710-201911

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-48070iGSU5#..LIMD..ARL201611-201911

GSP WITH TSR

main86466-48070iGSU5#..LE..ARL201710-201911

8646CCAMERA, FORWARD RECOGNITION

main8646C-0E020iGSU5#..LIMD..ARL201611-201911

GSP WITH TSR

main8646C-0E020iGSU5#..LE..ARL201710-201911

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
