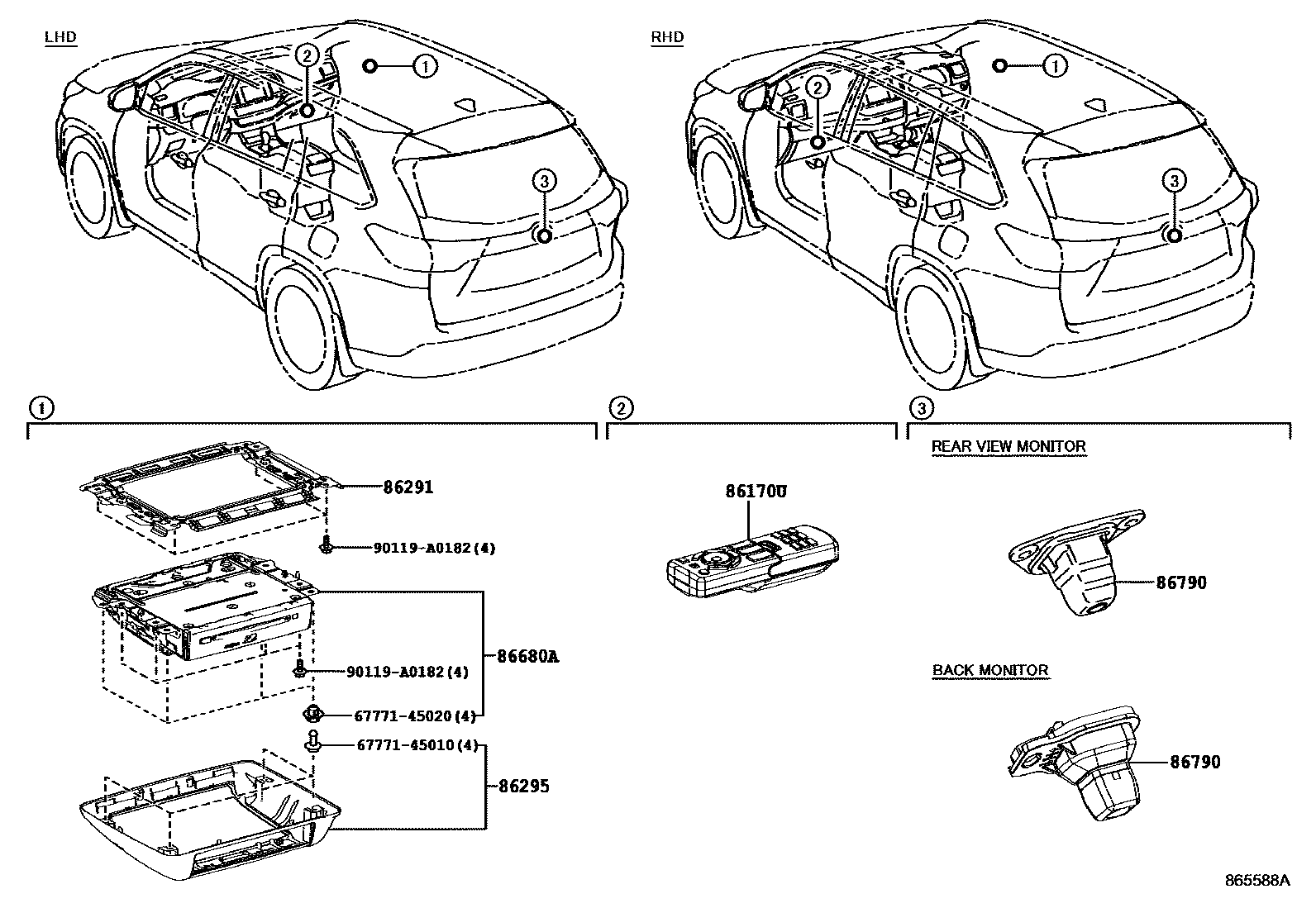

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86170USWITCH & VOLUME ASSY, REAR

86291BRACKET, TELEVISION

main86291-0E010

86295BASE, TELEVISION

main86295-0E060

86680ADISPLAY ASSY, TELEVISION

86790CAMERA ASSY, TELEVISION

main86790-0E030iASU50,GSU5#..LE201312-201406

sub86790-0E031

main86790-0E031iASU50,GSU5#..LE201407-201611

main86790-0E060iASU50,GSU5#..LE201611-201911

main86790-0E070iGSU5#..LIMD..ARL201611-201911

BACK MONITOR-PANORAMIC VIEW MONITOR

main867B0-0E010iASU50,GSU5#..LIMD201312-201511

main867B0-0E011iASU50,GSU5#..LIMD201511-201611

main867B0-0E090iASU50,GSU55..LIMD..RUS201611-201911

BACK MONITOR-PANORAMIC VIEW MONITOR

6777145010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-45010¥110

6777145020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-45020¥150

90119A0182

main90119-A0182

8 parts on this diagram · 2 diagrams in section
