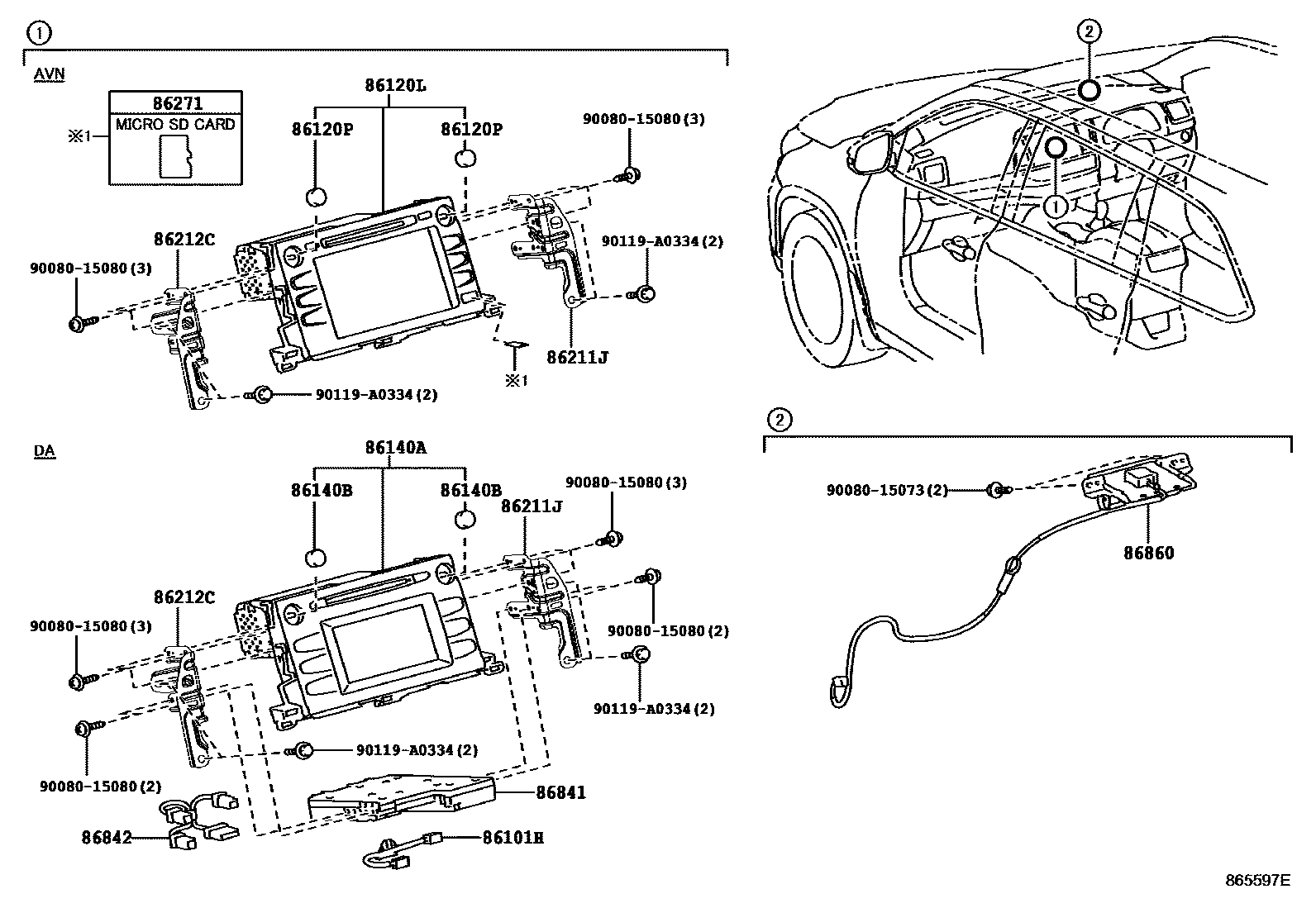

NAVIGATION & FRONT MONITOR DISPLAY
86101HCORD SUB-ASSY, ANTENNA
86120LRECEIVER ASSY, NAVIGATION
FUJITSU TEN,ID100177
FUJITSU TEN,ID100177,LEATHER PACKAGE
86120PKNOB, NAVIGATION RECEIVER SWITCH
LEATHER PACKAGE
86140ARECEIVER ASSY, RADIO & DISPLAY
FUJITSU TEN,ID100176
PANASONIC,ID=59034
PANASONIC,ID=59033
PANASONIC,ID=510175
FUJITSU TEN,ID100679
PANASONIC,ID=510178
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
86211JBRACKET, RADIO RECEIVER, NO.1
86212CBRACKET, RADIO RECEIVER, NO.2
86271DISC, DISC PLAYER
LEATHER PACKAGE&AUDIO-8INCH AVN 6SPEAKER W(NIS)
sub86271-0E174
LEATHER PACKAGE&AUDIO-8INCH AVN 6SPEAKER W(NIS)
sub86271-0E175
LEATHER PACKAGE & BLACK PACKAGE&AUDIO-8INCH AVN 6SPEAKER W(NIS)
sub86271-0E176
LEATHER PACKAGE&AUDIO-8INCH AVN 6SPEAKER W(NIS)
sub86271-0E176
86842WIRE, NAVIGATION, NO.1
86860ANTENNA ASSY, NAVIGATION
AUDIO-*DA 6SPEKAER W/O(HD-FM/AM)
9008015073
main90080-15073
9008015080
90119A0334
main90119-A0334
14 parts on this diagram · 2 diagrams in section
