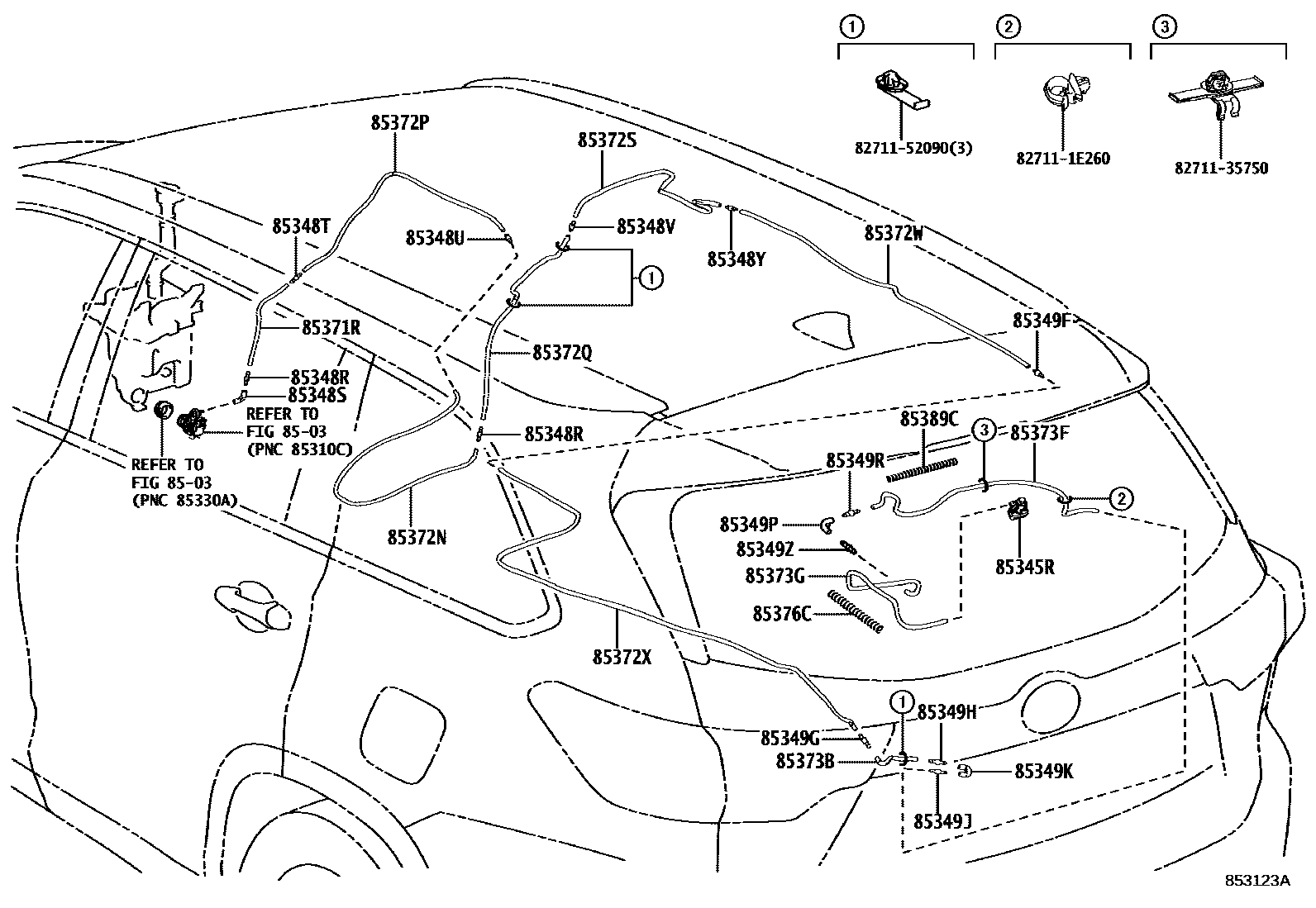

REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349JJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349RJOINT, REAR WASHER HOSE, NO.5
85349ZJOINT, REAR WASHER HOSE, NO.6
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=220
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=800
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=740
L=290
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=510
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=930
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=910
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1360
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=85
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
L=640
85373GHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9
L=460
85376CSPRING, WASHER HOSE
85389CPROTECTOR, WASHER
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
31 parts on this diagram · 1 diagram in section
