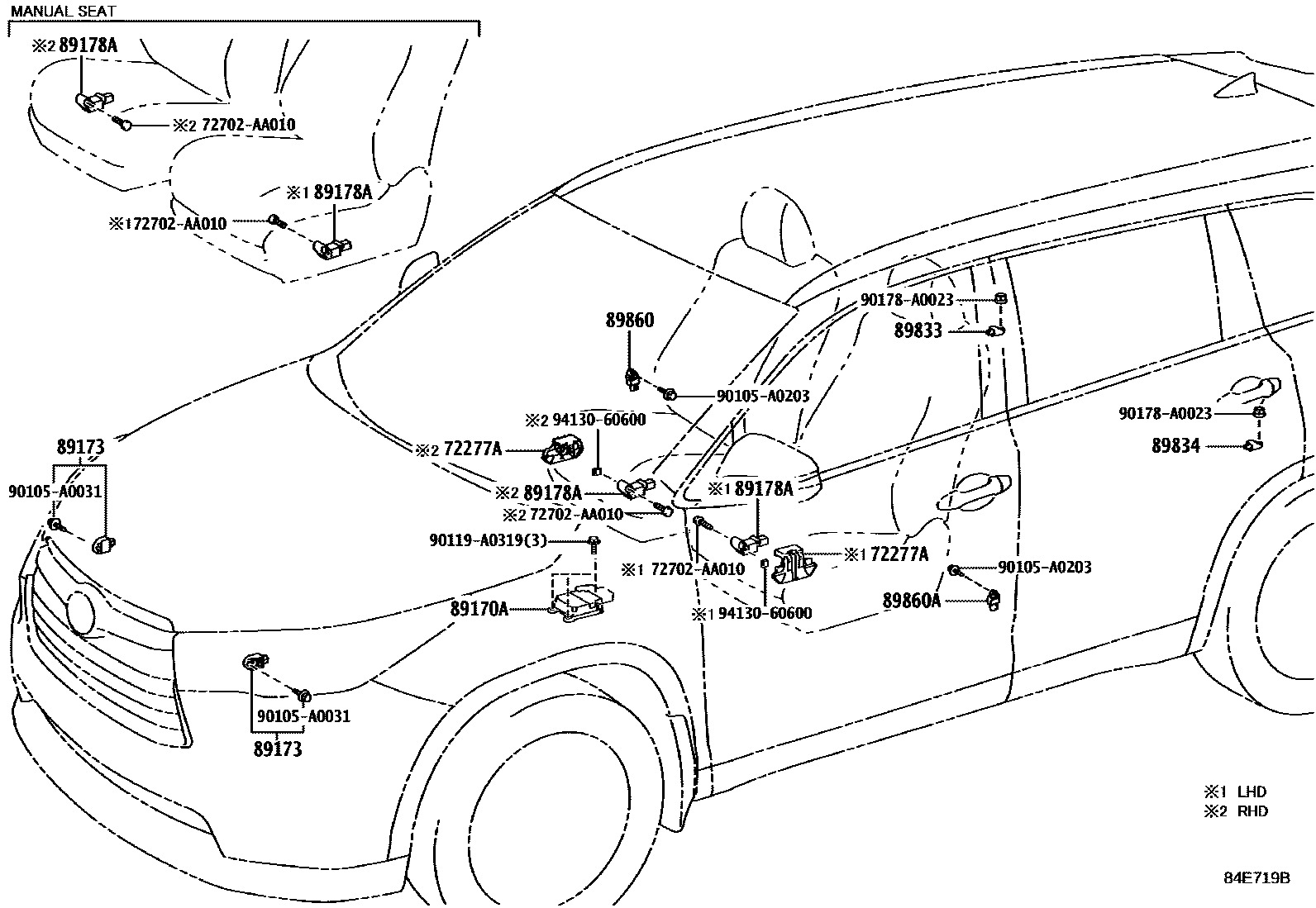

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-08010iASU50,GSU5#201312-201611

89170ACOMPUTER ASSY, AIRBAG

main89170-0E120iGSU5#..ARL201312-201911

main89170-0E130iASU50,GSU55..RUS201312-201911

89173SENSOR, AIRBAG, FRONT

main89173-09885iASU50,GSU5#201312-201611

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06040iASU50,GSU5#201312-201611

89833SENSOR, AIRBAG, REAR RH

main89831-0R100iASU50,GSU5#201312-201611

89834SENSOR, AIRBAG, REAR LH

main89831-0R100iASU50,GSU5#201312-201611

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0R070iASU50,GSU5#201312-201611

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0R070iASU50,GSU5#201312-201611

72702AA010BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-AA010

90105A0031

main90105-A0031

90105A0203

main90105-A0203

90119A0319

main90119-A0319

90178A0023

main90178-A0023

9413060600

main94130-60600

14 parts on this diagram · 1 diagram in section
