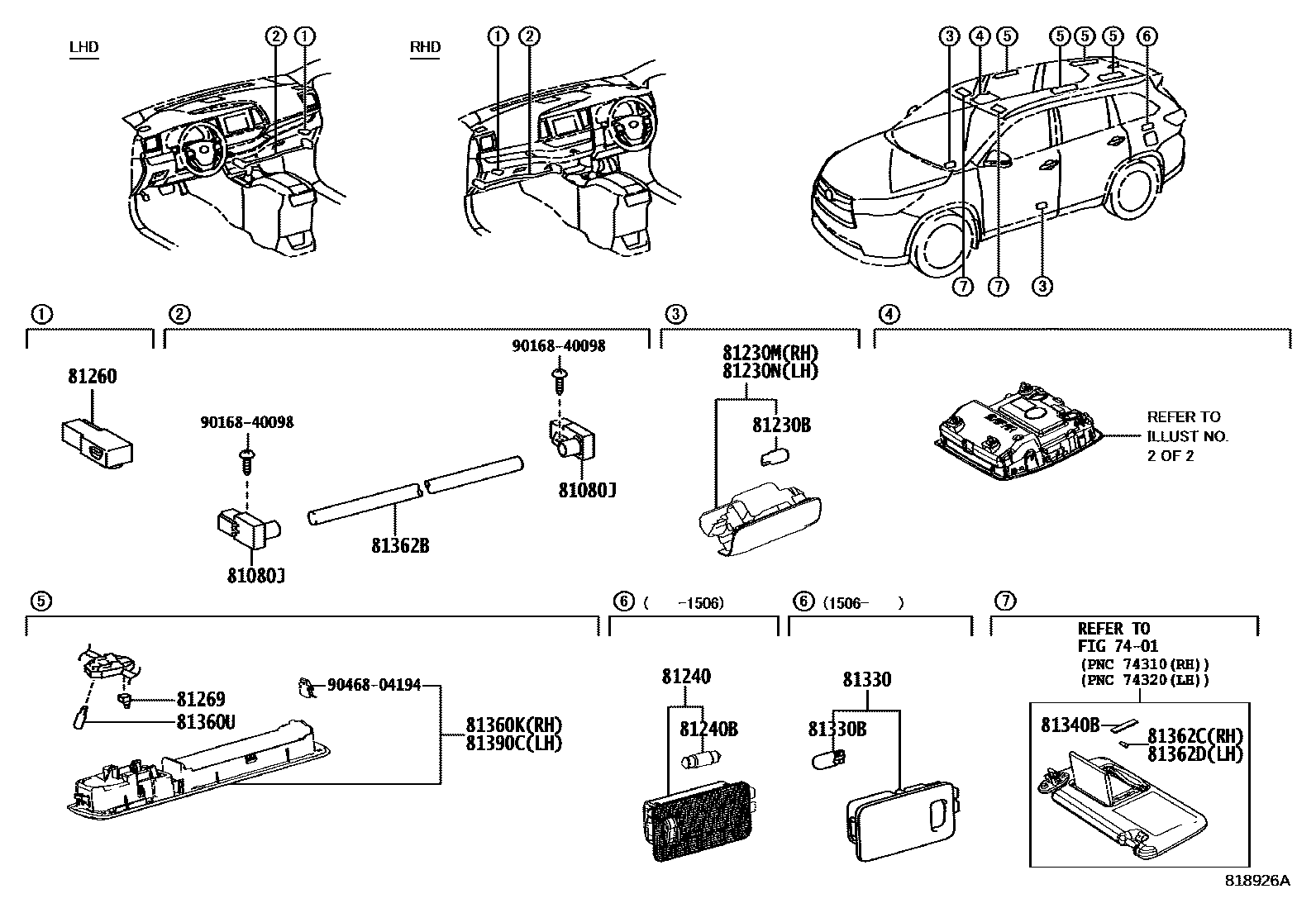

INTERIOR LAMP

0001 1 0002 1

7401

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0E020iASU50,GSU5#..LIMD201312-201611

81230BBULB(FOR COURTESY LAMP)

main90981-12010iASU50,GSU5#¥110201312-201611

12V 5W

81230MLAMP ASSY, COURTESY, RH

main81230-06040iASU50,GSU5#201312-201611

81230NLAMP ASSY, COURTESY, LH

main81230-06040iASU50,GSU5#201312-201611

81240LAMP ASSY, ROOM, NO.1

main81250-48010iASU50,GSU5#¥2,420201312-201506

81240BBULB, ROOM LAMP, NO.1

main99132-13050iASU50,GSU5#¥150201312-201506

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010iASU50,GSU5#¥860201312-201611

81269SWITCH, MAP LAMP

main84532-58010iASU50,GSU5#¥740201312-201611

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iASU50,GSU5#¥460201506-201611

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iASU50,GSU5#¥110201506-201611

12V 5W

81340BBULB (FOR VANITY LAMP)

main84999-0E010iASU50,GSU5#201805

81360KLAMP ASSY, SPOT, RH

main81360-0E020-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main81360-0E020-B0iASU50,GSU5#..LIMD201312-201611

GRAY,TRIM2#

main81360-0E020-B0iASU50,GSU5#..LE201611

GRAY,TRIM2#,4#

81360UBULB, SPOT LAMP

main90981-11062iASU50,GSU5#¥340201312-201611

81362BLENS, INTERIOR ILLUMINATION LAMP

main81362-0E010iASU50,GSU5#..LIMD201312-201611

81362CLENS, INTERIOR ILLUMINATION LAMP, RH

main81362-0E050iASU50,GSU5#201805

81362DLENS, INTERIOR ILLUMINATION LAMP, LH

main81362-0E060iASU50,GSU5#201805

81390CLAMP ASSY, SPOT, LH

main81390-0E010-A0iASU50;GSU5#..LIMD;GSU55..LE..RUS201312-201611

FLAXEN,TRIM0#

main81390-0E010-B0iASU50,GSU5#201312-201611

GRAY,TRIM2#

main81390-0E010-B0iASU50,GSU5#..LE201611

GRAY,TRIM2#,4#

9016840098

main90168-40098¥120

9046804194

main90468-04194¥180

20 parts on this diagram · 2 diagrams in section
