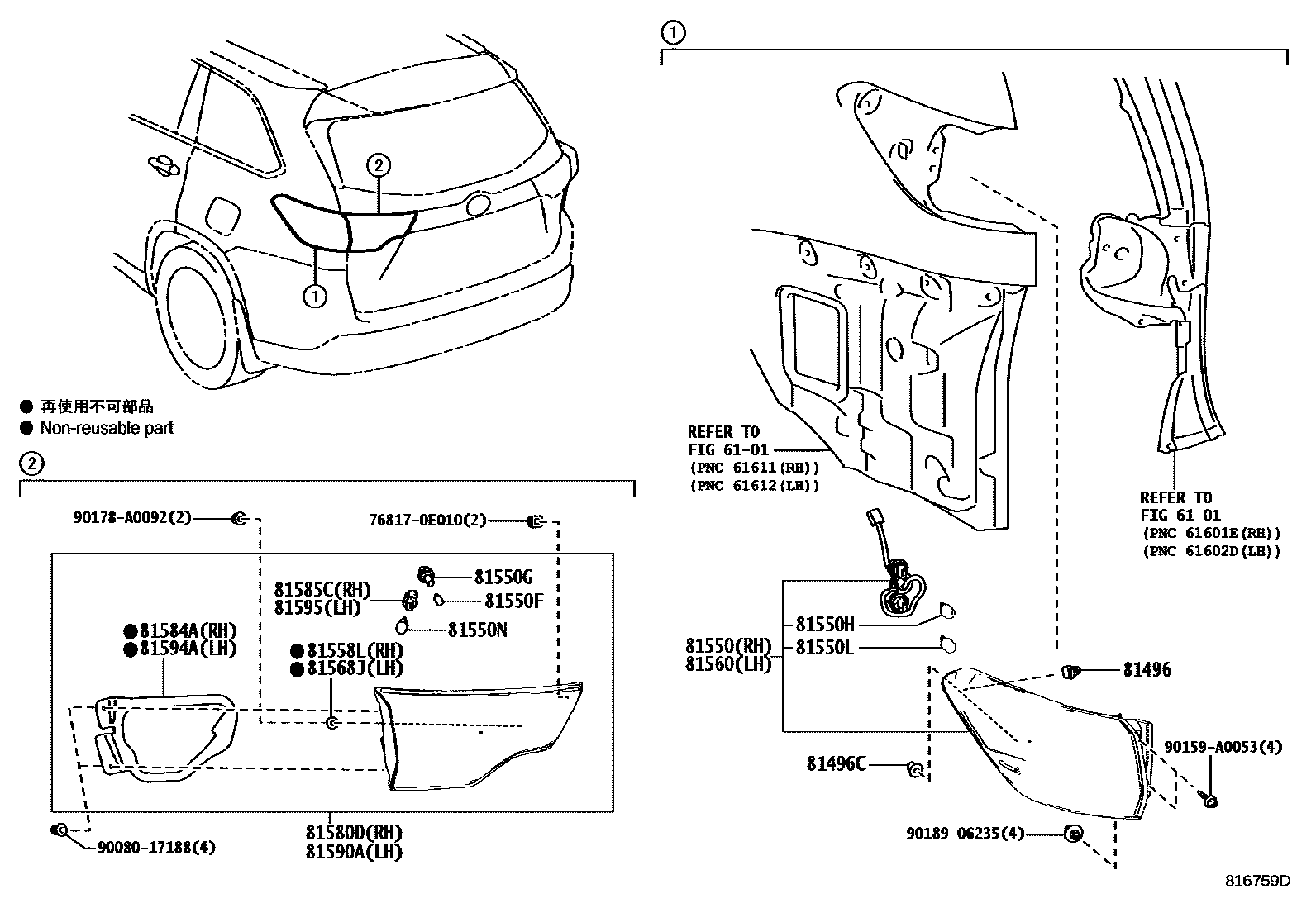

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-0E010×2iASU50,GSU5#201312-201611

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0E020×2iASU50,GSU5#201312-201611

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E110iASU50,GSU5#201312-201611

main81550-0E170iASU50,GSU5#201611

81550FBULB, TAILLAMP

main90981-11069×2iASU50,GSU5#201312-201611

12V 5W

81550GSOCKET, TAILLAMP

main90075-60077×2iASU50,GSU5#201312-201611

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iASU50,GSU5#201312-201611

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iASU50,GSU5#201312-201611

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iASU50,GSU5#201312-201611

12V 16W

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040iASU50,GSU5#201312-201611

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E110iASU50,GSU5#201312-201611

main81560-0E170iASU50,GSU5#201611

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040iASU50,GSU5#201312-201611

81580DLAMP ASSY, REAR, RH

main81580-0E050iASU50,GSU5#201312-201611

main81580-0E120iASU50,GSU5#201611

81584AGASKET, REAR LAMP RH

main81584-0E050iASU50,GSU5#201312-201611

main81584-0E120iASU50,GSU5#201611

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-0E120iASU50,GSU5#201312-201611

81590ALAMP ASSY, REAR, LH

main81590-0E060iASU50,GSU5#201312-201611

main81590-0E120iASU50,GSU5#201611

81594AGASKET, REAR LAMP LH

main81594-0E060iASU50,GSU5#201312-201611

main81594-0E120iASU50,GSU5#201611

81595SOCKET & WIRE, REAR LAMP, LH

main81585-0E120iASU50,GSU5#201312-201611

768170E010CLIP, BACK DOOR OUTSIDE GARNISH

main76817-0E010

9008017188

main90080-17188

90159A0053

main90159-A0053

90178A0092

main90178-A0092

9018906235

main90189-06235

23 parts on this diagram · 2 diagrams in section
