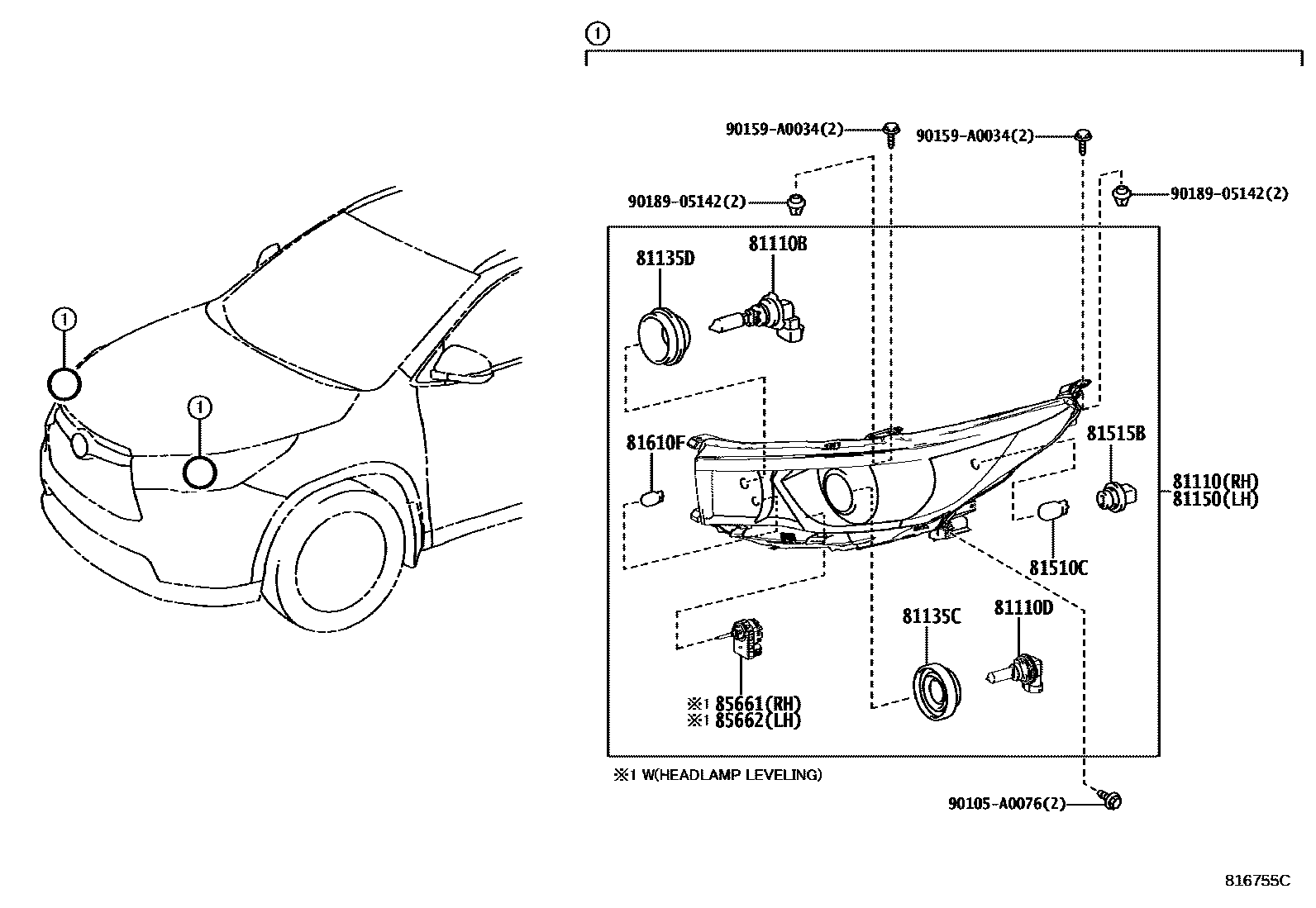

HEADLAMP
81110HEADLAMP ASSY, RH
LEATHER PACKAGE&HEADLAMP-LED
LEATHER PACKAGE & BLACK PACKAGE
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
81110DBULB(FOR HEADLAMP, NO.2)
12V 55W,HALOGEN
81135CCOVER, HEADLAMP BACK, NO.1
LEATHER PACKAGE&HEADLAMP-LED
81135DCOVER, HEADLAMP BACK, NO.2
81150HEADLAMP ASSY, LH
LEATHER PACKAGE&HEADLAMP-LED
LEATHER PACKAGE & BLACK PACKAGE
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
12V 28/8W
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
90105A0076
main90105-A0076
90159A0034
main90159-A0034
9018905142
main90189-05142
14 parts on this diagram · 3 diagrams in section
