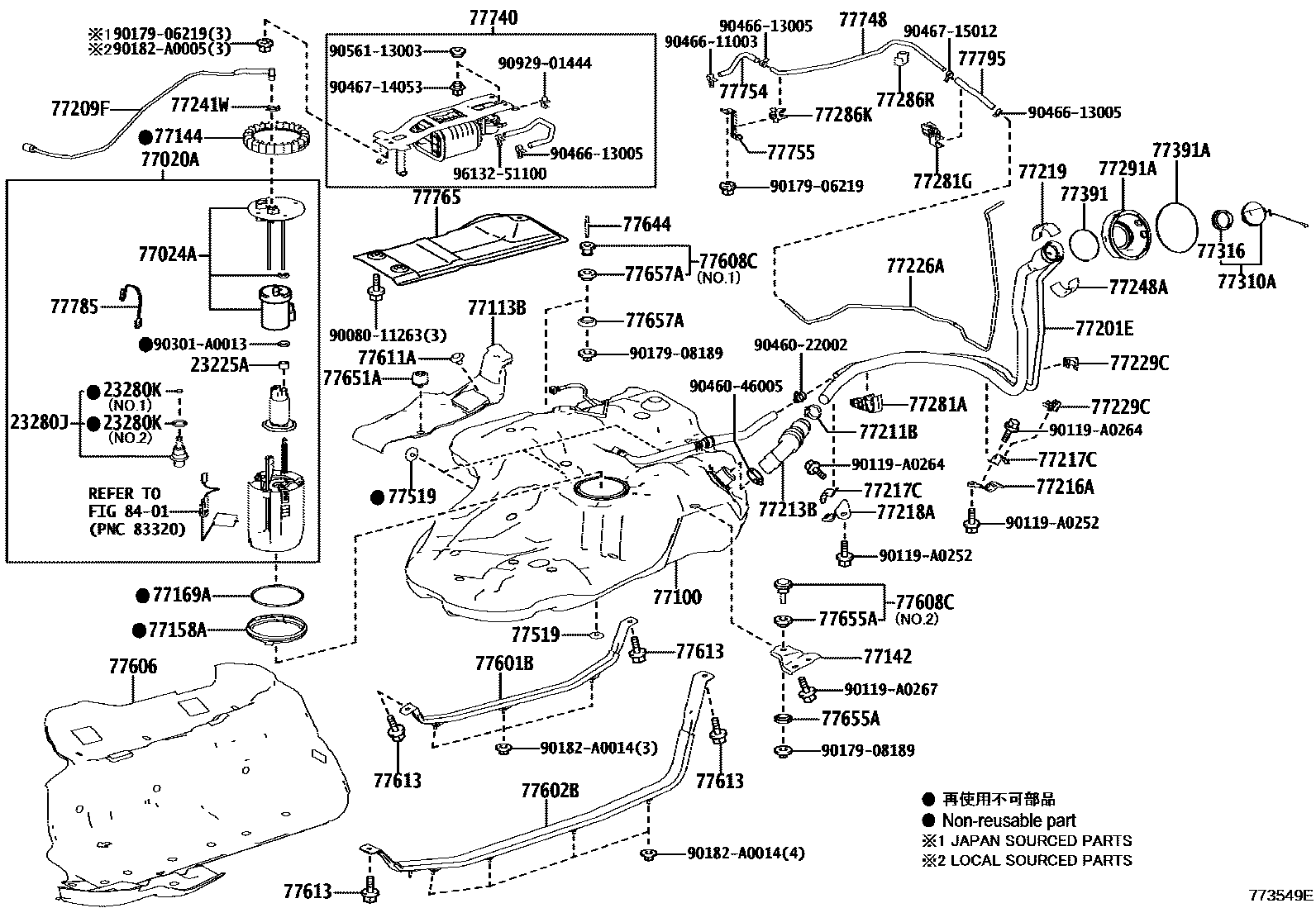

FUEL TANK & TUBE
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77113BPLATE, FUEL TANK SIDE
77142BRACKET, FUEL TANK MOUNTING, REAR
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77281ACLAMP, FUEL FILLER PIPE
77281GCLAMP, FUEL HOSE
77286KCLAMP, FUEL TUBE, NO.2
77286RCLAMP, FUEL TUBE, NO.10
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77519SPACER, FUEL TANK BRACKET
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
NO.1
NO.2
77611APIN (FOR FUEL TANK BAND)
77613BOLT, FUEL TANK BAND SET
77644BOLT, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77655ACUSHION, FUEL TANK, NO.5
77657ACUSHION, FUEL TANK, NO.5
77740CANISTER ASSY, CHARCOAL
77748PIPE, CHARCOAL CANISTER, NO.2
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77755BRACKET, CHARCOAL CANISTER OUTLET HOSE
77765PROTECTOR, CHARCOAL CANISTER
77795HOSE, CHARCOAL CANISTER OUTLET, NO.2
8401
9008011263
main90080-11263
90119A0252
main90119-A0252
90119A0264
main90119-A0264
90119A0267
main90119-A0267
9017906219
9017908189
90182A0005
main90182-A0005
90182A0014
90301A0013
main90301-A0013
9046022002
9046046005
9046611003
9046613005
9046714053
9046715012
9056113003
9092901444
9613251100
69 parts on this diagram · 8 diagrams in section
