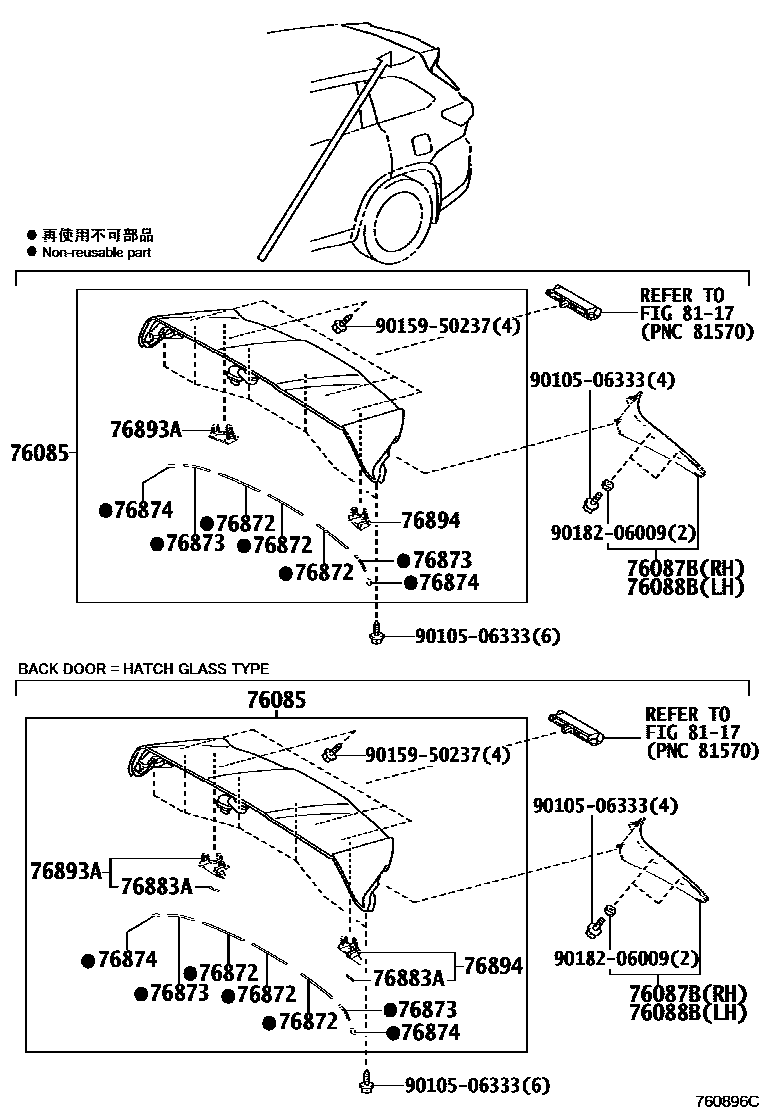

MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
PAINT REQ.,AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
sub76085-0E922
PAINT REQ.,AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
sub76085-0E925
PAINT REQ.
PAINT REQ.
PAINT REQ.,LEATHER PACKAGE
76087BSPOILER SUB-ASSY, REAR SIDE, RH
76088BSPOILER SUB-ASSY, REAR SIDE, LH
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76883APROTECTOR, REAR SOPILER, NO.7
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
76893ACOVER, REAR SPOILER, RH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
LEATHER PACKAGE
76894COVER, REAR SPOILER, LH
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
LEATHER PACKAGE
8117
9010506333
9015950237
9018206009
13 parts on this diagram · 3 diagrams in section
