REAR MOULDING

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76811-0E901iASU50,GSU5#..LE201312-201611

PAINT REQ.

main76811-0E902iASU50,GSU5#..LIMD201312-201611

PAINT REQ.,AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

main76811-0E902iASU50,GSU55..LE..RUS201312-201611

PAINT REQ.

main76811-0E902iGSU55..LE..ARL;ASU50,GSU50..LE201611

PAINT REQ.,LEATHER PACKAGE

76817CLIP, BACK DOOR OUTSIDE GARNISH

main67773-0E020iASU50,GSU5#201312-201611

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76822-0E030iASU50,GSU5#201312-201611

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-0E080iASU50,GSU5#201312-201611

76831BCOVER, BACK DOOR FINISH PANEL, RH

main76831-0E010iASU50,GSU5#201312-201611

76832BCOVER, BACK DOOR FINISH PANEL, LH

main76832-0E010iASU50,GSU5#201312-201611

9008017244

main90080-17244

90109A0018

main90109-A0018

9043005003

main90430-05003

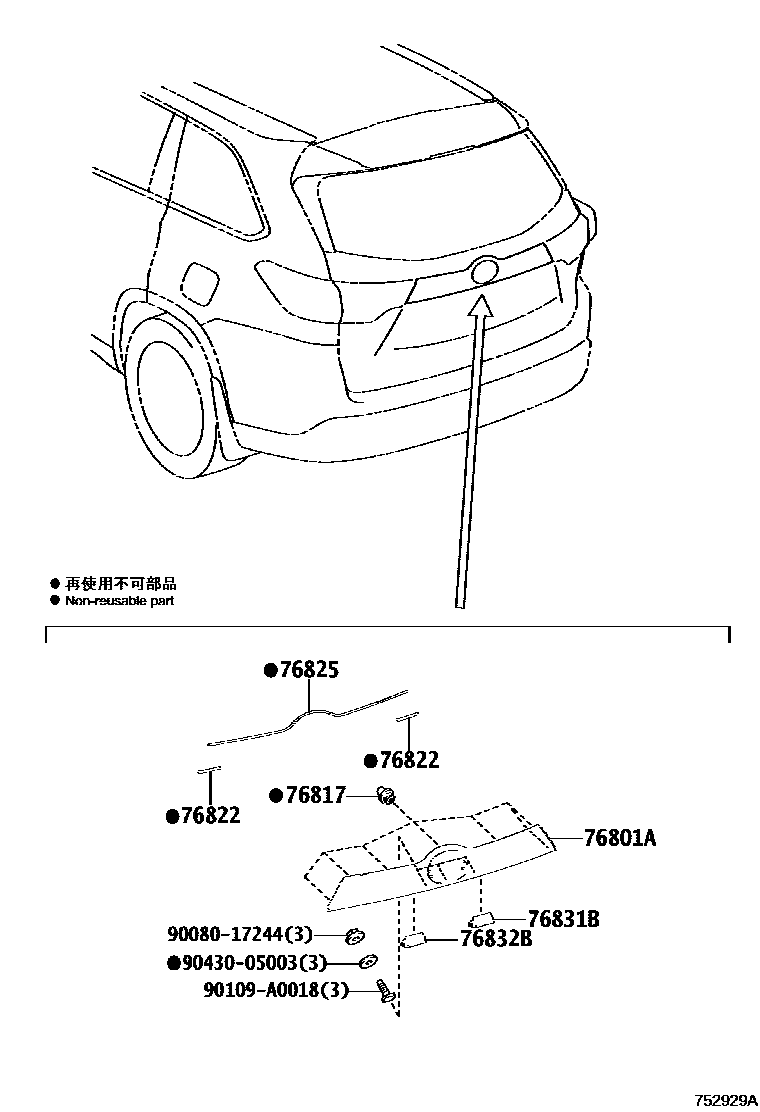

9 parts on this diagram · 1 diagram in section
