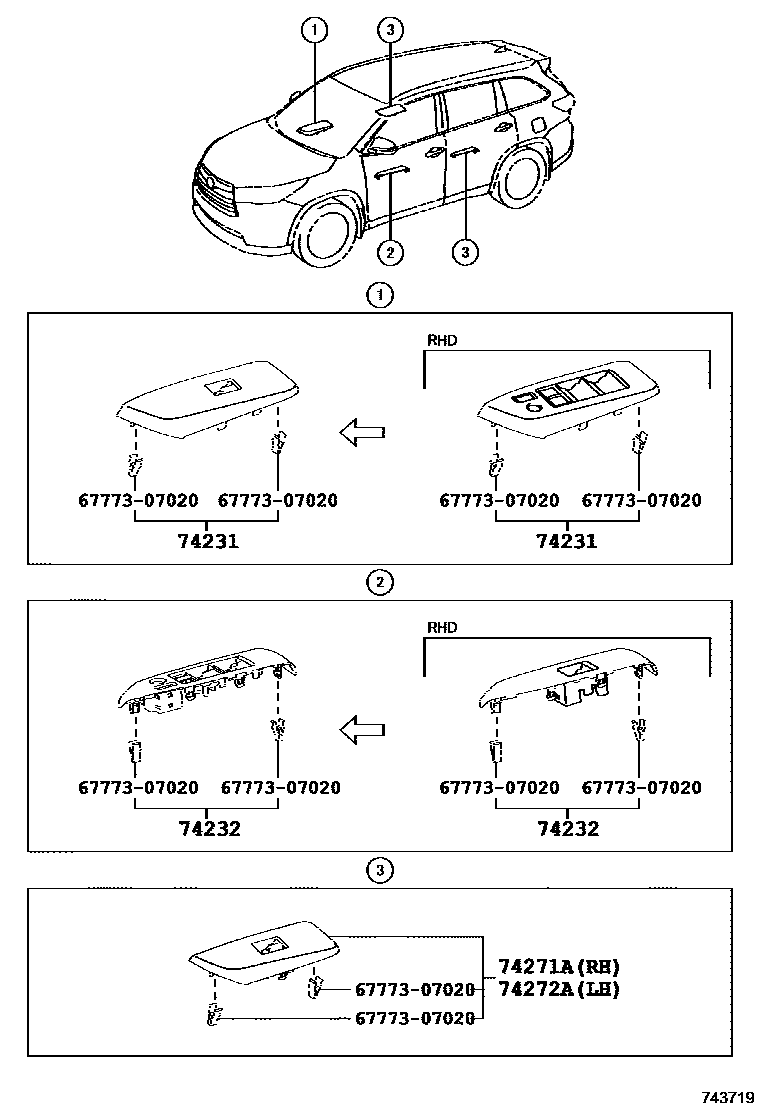

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0E060iASU50,GSU55..RUS201611

main74231-0E070iGSU5#..ARL201312-201611

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0E050iASU50,GSU55..RUS201611

main74232-0E060iGSU5#..ARL201312-201611

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0E050iASU50,GSU5#201312-201611

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0E050iASU50,GSU5#201312-201611

6777307020

main67773-07020

5 parts on this diagram · 2 diagrams in section
