FRONT SEAT & SEAT TRACK

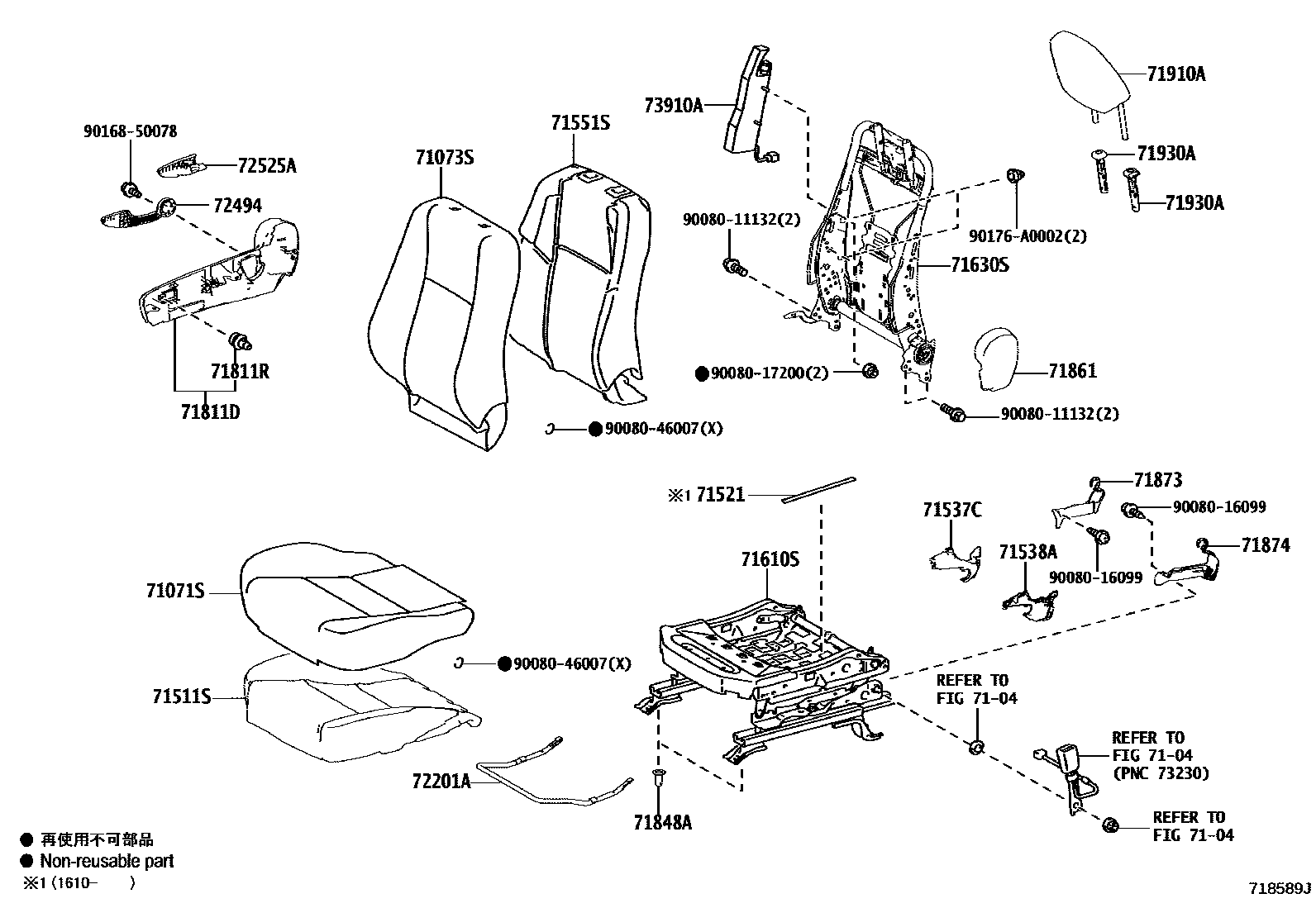

Parts diagram
7104
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-0E240-C1i201312-201910
BLACK,TRIM2#
sub71071-0E241
main71071-0E250-C1i201312-201911
BLACK,TRIM2#
main71071-0E290-A2i201312-201611
FLAXEN,TRIM0#
sub71071-0E290
sub71071-0E292
main71071-0E290-A3i201611-201910
FLAXEN,TRIM0#
sub71071-0E290
sub71071-0E292
main71071-0E290-C1i201312-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),BLACK,TRIM2#
sub71071-0E290
sub71071-0E292
main71071-0E290-C1i201312-201611
BLACK,TRIM2#
sub71071-0E290
sub71071-0E292
main71071-0E290-C2i201611-201910
BLACK,TRIM2#
sub71071-0E290
sub71071-0E292
main71071-0E290-E1i201611-201910
BROWN,TRIM4#
sub71071-0E290
sub71071-0E292
main71071-0E300-A2i201312-201910
FLAXEN,TRIM0#
sub71071-0E303
main71071-0E300-C1i201312-201910
BLACK,TRIM2#
sub71071-0E303
main71071-0E300-E0i201611-201910
BROWN,TRIM4#
sub71071-0E303
main71071-0E310-A2i201611-201910
LEATHER PACKAGE,FLAXEN,TRIM0#
sub71071-0E313
main71071-0E310-A2i201611-201910
FLAXEN,TRIM0#
sub71071-0E313
main71071-0E310-C1i201611-201910
LEATHER PACKAGE,BLACK,TRIM2#
sub71071-0E313
main71071-0E310-C1i201611-201910
BLACK,TRIM2#
sub71071-0E313
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-0E270-C1i201312-201611
BLACK,TRIM2#
main71073-0E280-C1i201312-201611
BLACK,TRIM2#
main71073-0E320-A1i201312-201611
FLAXEN,TRIM0#
main71073-0E320-C0i201312-201611
BLACK,TRIM2#
main71073-0E320-E0i201611
BROWN,TRIM4#
main71073-0E330-A1i201611
FLAXEN,TRIM0#
main71073-0E330-A1i201611
LEATHER PACKAGE,FLAXEN,TRIM0#
main71073-0E330-C0i201611
BLACK,TRIM2#
main71073-0E330-C0i201611
LEATHER PACKAGE,BLACK,TRIM2#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-0E010i201312-201612
main71501-0E011i201612
main71501-0E030i201312-201612
main71501-0E031i201612
main71501-0E040i201312-201611
main71511-0E130i201312-201611
71521PAD, FRONT SEAT CUSHION SILENCER, A
main71521-0E010i201610-201611
71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH
main71537-0E050-A0i201512-201611
FLAXEN,TRIM0#
main71537-0E050-C0i201512-201611
BLACK,TRIM2#
main71537-0E050-C0i201611
BLACK,TRIM2#,4#
main71537-0R010-A0i201312-201511
FLAXEN,TRIM0#
sub71537-0E050
main71537-0R010-C0i201312-201511
BLACK,TRIM2#
sub71537-0E050
main71537-0R020-A0i201312-201611
FLAXEN,TRIM0#
main71537-0R020-C0i201611
BLACK,TRIM2#,4#
main71537-0R020-C0i201312-201611
BLACK,TRIM2#
71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
main71538-0E030-A0i201512-201611
FLAXEN,TRIM0#
main71538-0E030-C0i201512-201611
BLACK,TRIM2#
main71538-0E030-C0i201611
BLACK,TRIM2#,4#
main71538-0R010-A0i201312-201511
FLAXEN,TRIM0#
sub71538-0E030
main71538-0R010-C0i201312-201511
BLACK,TRIM2#
sub71538-0E030
main71538-0R020-A0i201312-201611
FLAXEN,TRIM0#
main71538-0R020-C0i201312-201611
BLACK,TRIM2#
main71538-0R020-C0i201611
BLACK,TRIM2#,4#
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71505-0E010i201312-201611
main71551-0E090i201312-201611
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-0E040i201312-201611
main71610-0E070i201312-201611
main71610-0E080i201312-201611
main71610-0E110i201312-201611
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-0E030i201312-201611
main71630-0E050i201312-201611
main71630-0E060i201312-201611
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-0E120-A0i201312-201611
FLAXEN,TRIM0#
main71811-0E120-C0i201312-201611
BLACK,TRIM2#
main71811-0E130-C0i201312-201611
BLACK,TRIM2#
main71811-0E140-A0i201312-201611
FLAXEN,TRIM0#
main71811-0E140-C0i201611
BLACK,TRIM2#,4#
main71811-0E140-C0i201312-201611
BLACK,TRIM2#
main71811-0E150-A0i201312-201611
FLAXEN,TRIM0#
main71811-0E150-C0i201611
BLACK,TRIM2#,4#
main71811-0E150-C0i201312-201611
BLACK,TRIM2#
main71811-0E150-C0i201312-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),BLACK,TRIM2#
main71811-0E150-C0i201611
LEATHER PACKAGE,BLACK,TRIM2#
71811RCLIP, FRONT SEAT CUSHION SHIELD, RH
main71769-47020i201312-201611
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-33010i201312-201611
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-0E070-A0i201312-201611
FLAXEN,TRIM0#
main71861-0E070-C0i201611
BLACK,TRIM2#,4#
main71861-0E070-C0i201312-201611
BLACK,TRIM2#
main71861-0E080-A0i201312-201611
FLAXEN,TRIM0#
main71861-0E080-C0i201312-201611
BLACK,TRIM2#
main71861-0E080-C0i201611
BLACK,TRIM2#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-08010i201312-201611
main71873-0E150i201312-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
main71873-0E150i201611
LEATHER PACKAGE
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-08010i201312-201611
main71874-08020i201312-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION)
main71874-08020i201611
LEATHER PACKAGE
71910AHEADREST ASSY, FRONT SEAT
main71910-0E250-C0i201312-201611
BLACK,TRIM2#
main71910-0E260-A4i201312-201604
FLAXEN,TRIM0#
sub71910-0E261
main71910-0E260-A4i201312-201604
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
sub71910-0E261
main71910-0E260-C2i201312-201604
BLACK,TRIM2#
sub71910-0E261
main71910-0E260-C2i201312-201604
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),BLACK,TRIM2#
sub71910-0E261
main71910-0E261-A4i201604-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
sub71910-0E261
main71910-0E261-A4i201604-201611
FLAXEN,TRIM0#
sub71910-0E261
main71910-0E261-A5i201611
FLAXEN,TRIM0#
sub71910-0E261
main71910-0E261-A5i201611
LEATHER PACKAGE,FLAXEN,TRIM0#
sub71910-0E261
main71910-0E261-C2i201604-201611
LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),BLACK,TRIM2#
sub71910-0E261
main71910-0E261-C2i201604-201611
BLACK,TRIM2#
sub71910-0E261
main71910-0E261-C4i201611
BLACK,TRIM2#
sub71910-0E261
main71910-0E261-C4i201611
LEATHER PACKAGE,BLACK,TRIM2#
sub71910-0E261
main71910-0E261-E0i201611
BROWN,TRIM4#
sub71910-0E261
71930ASUPPORT ASSY, FRONT SEAT HEADREST
main71930-47020-A7i201611
W(LOCK),LEATHER PACKAGE,FLAXEN,TRIM0#
sub71930-47020
main71930-47020-A7i201312-201611
W(LOCK),FLAXEN,TRIM0#
sub71930-47020
main71930-47020-A7i201312-201611
W(LOCK),LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
sub71930-47020
main71930-47020-C0i201611-201710
W(LOCK),BLACK,TRIM2#,4#
sub71930-47020
main71930-47020-C0i201312-201710
W(LOCK),BLACK,TRIM2#
sub71930-47020
main71930-47020-C4i201710
W(LOCK),BLACK,TRIM2#,4#
sub71930-47020
main71930-47020-C4i201710
W(LOCK),BLACK,TRIM2#
sub71930-47020
main71931-47020-A7i201312-201611
W/O(LOCK),FLAXEN,TRIM0#
sub71931-47020
main71931-47020-A7i201312-201611
W/O(LOCK),LEATHER PACKAGE&SEAT COVER MATERIAL-LEATHER(PERFORATION),FLAXEN,TRIM0#
sub71931-47020
main71931-47020-A7i201611
W/O(LOCK),LEATHER PACKAGE,FLAXEN,TRIM0#
sub71931-47020
main71931-47020-C0i201312-201710
W/O(LOCK),BLACK,TRIM2#
sub71931-47020
main71931-47020-C0i201611-201710
W/O(LOCK),BLACK,TRIM2#,4#
sub71931-47020
main71931-47020-C4i201710
W/O(LOCK),BLACK,TRIM2#
sub71931-47020
main71931-47020-C4i201710
W/O(LOCK),BLACK,TRIM2#,4#
sub71931-47020
72201AHANDLE SUB-ASSY, SEAT TRACK RH
main72211-08020i201312-201611
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-0E010-C0i201312-201611
BLACK,TRIM2#
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-08010-C0i201312-201611
BLACK,TRIM2#
main72525-0R020-A0i201312-201611
FLAXEN,TRIM0#
main72525-0R020-C0i201312-201611
BLACK,TRIM2#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-0E060i201312-201611
9008011132
main90080-11132
9008016099
main90080-16099
9008017200
main90080-17200
9008046007
main90080-46007
9016850078
main90168-50078
90176A0002
main90176-A0002

28 parts on this diagram · 18 diagrams in section
