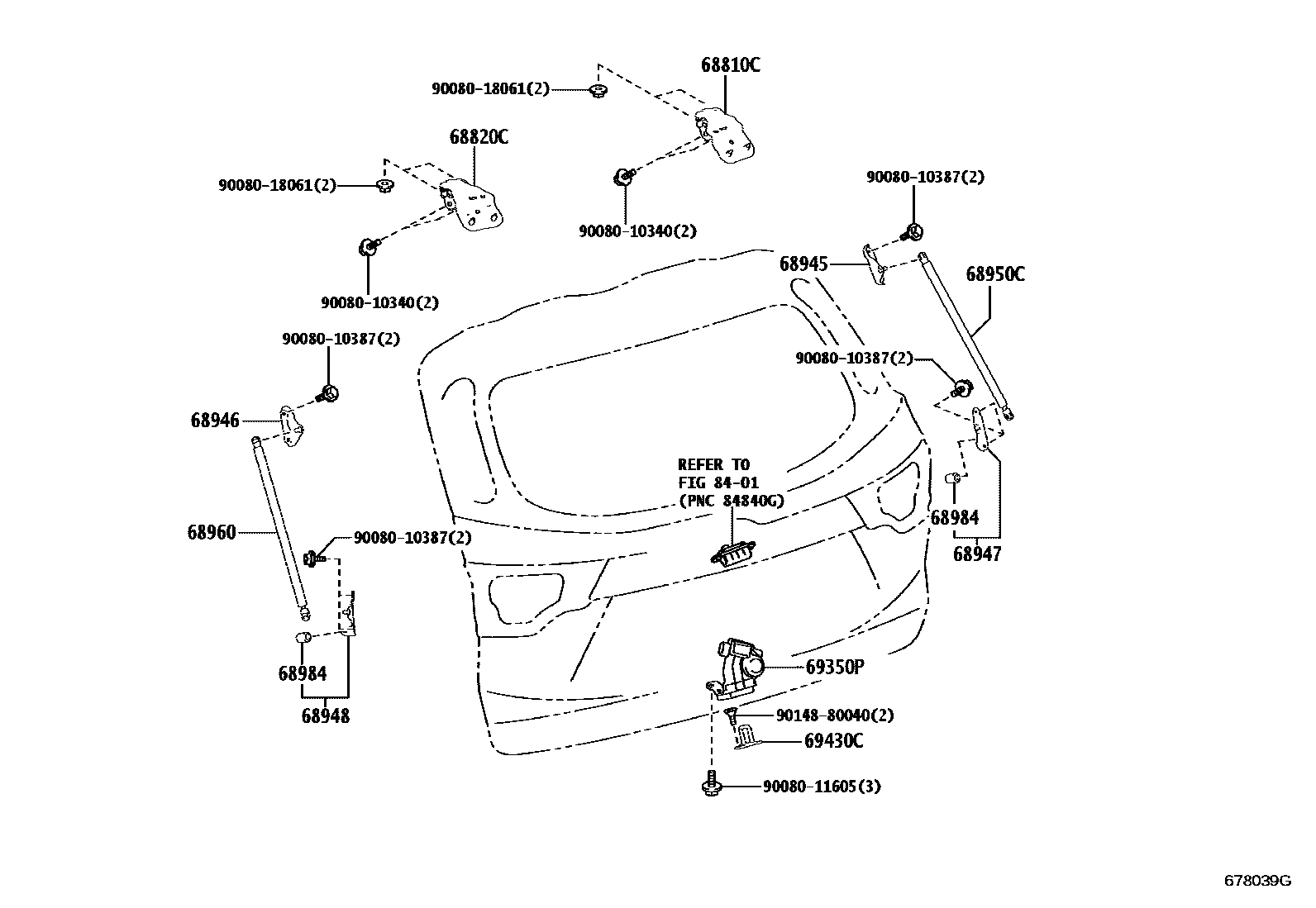

BACK DOOR LOCK & HANDLE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR) 0003 1HATCH GLASS PARTS

68810CHINGE ASSY, BACK DOOR, RH

main68810-0E160iASU50,GSU5#201312-201611

main68810-0E250iASU50,GSU5#201611

PAD T=1.5

main68810-0E260iASU50,GSU5#201611

PAD T=1.0

main68810-0E270iASU50,GSU5#201611

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68820-0E130iASU50,GSU5#201312-201611

main68820-0E190iASU50,GSU5#201611

PAD T=1.5

main68820-0E200iASU50,GSU5#201611

PAD T=1.0

main68820-0E210iASU50,GSU5#201611

PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68903-0E010iASU50,GSU5#..LIMD201312-201408

LEATHER PACKAGE

main68945-0E030supersedes 68945-0E030iASU50,GSU5#..LE201312-201611

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68904-0E010iASU50,GSU5#..LIMD201409-201611

LEATHER PACKAGE

main68946-0E010supersedes 68946-0E010iASU50,GSU5#..LE201312-201611

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68903-0E020iASU50,GSU5#..LIMD201312-201408

LEATHER PACKAGE

main68947-0E010supersedes 68947-0E010iASU50,GSU5#..LE201312-201611

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68904-0E020iASU50,GSU5#..LIMD201312-201408

LEATHER PACKAGE

main68948-0E010supersedes 68948-0E010iASU50,GSU5#..LE201312-201611

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

68950CSTAY ASSY, BACK DOOR, RH

main68950-0E100iASU50,GSU5#..LE201312-201508

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

main68950-0E101iASU50,GSU5#..LE201509-201611

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub68950-0E102

68960STAY ASSY, BACK DOOR, LH

main68960-0E100iASU50,GSU5#..LE201312-201508

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

main68960-0E101iASU50,GSU5#..LE201509-201611

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub68960-0E102

68984STOPPER, BACK DOOR STAY

main68984-0E010×2iASU50,GSU5#201611-201911

LEATHER PACKAGE&AUTO & EASY CLOSER DOOR-POWER BACK DOOR

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0E100supersedes 69350-0T020iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

LEATHER PACKAGE

main69350-0T020iASU50,GSU5#..LE201312-201611

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0E040iASU50,GSU5#201312-201409

main69430-0E070iASU50,GSU5#201410-201611

8401

9008010340

main90080-10340

9008010387

main90080-10387

9008011605

main90080-11605

9008018061

main90080-18061

9014880040

main90148-80040

17 parts on this diagram · 3 diagrams in section
