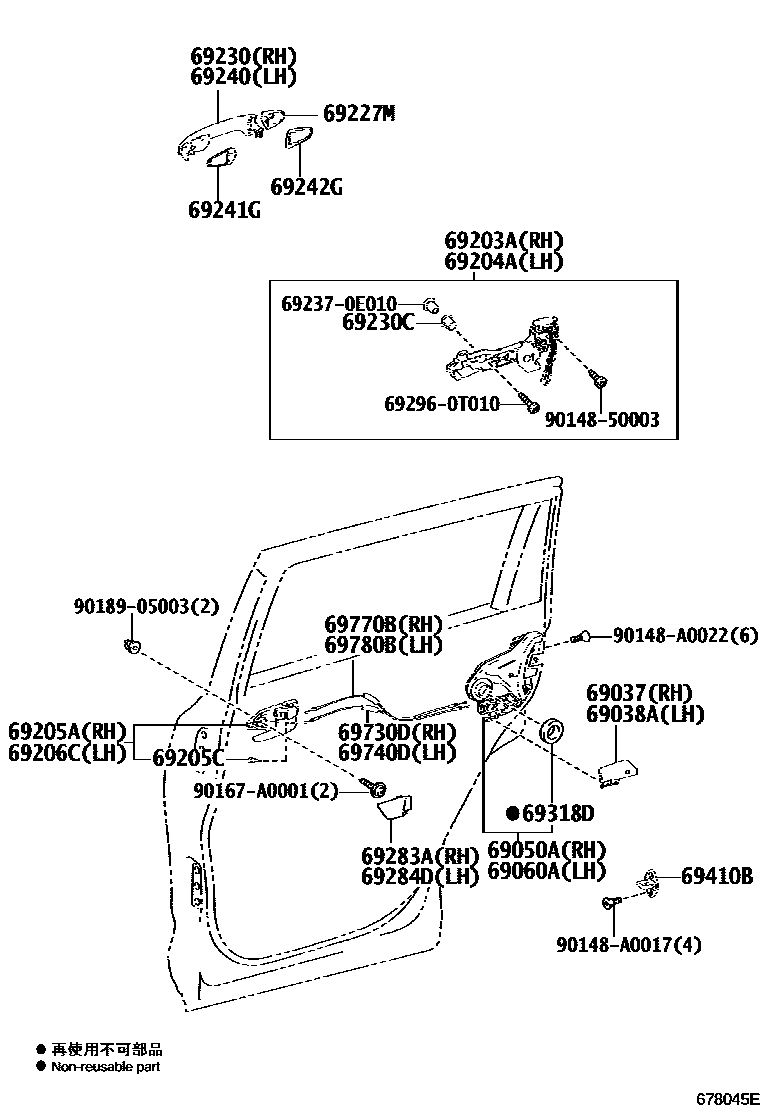

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02030iASU50,GSU5#201312-201611

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02030iASU50,GSU5#201611

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-0E030iASU50,GSU5#201611

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-0E030iASU50,GSU5#201312-201611

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0E030iASU50,GSU5#201312-201502

main69203-0E031iASU50,GSU5#201503-201611

main69203-0E100iASU50,GSU5#201809

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0E030iASU50,GSU5#201312-201502

main69204-0E031iASU50,GSU5#201611-201809

main69204-0E100iASU50,GSU5#201809

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0E030-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#

main69205-0R030-C0iASU50,GSU5#..LE201312-201611

BLACK,TRIM2#

sub69205-04030

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90080-54005×2iASU50,GSU5#201611

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0E030-C0iASU50,GSU5#..LIMD201312-201611

BLACK,TRIM0#,2#

main69206-0R030-C0iASU50,GSU5#..LE201312-201611

BLACK,TRIM2#

sub69206-04030

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69227-0E040-A0×2iASU50,GSU5#201312-201611

WHITE PEARL CS.,070

main69227-0E040-B0×2iASU50,GSU5#201312-201611

SILVER ME.,1D6

main69227-0E040-B1×2iASU50,GSU5#201611

GRAY M.M.,1H1

main69227-0E040-B3×2iASU50,GSU5#201611

SILVER ME.,1J9

main69227-0E040-C0×2iASU50,GSU5#201312-201611

ATTITUDE BLACK MC.,218

main69227-0E040-D0×2iASU50,GSU5#201312-201611

DK.RED M.M.,3T0

main69227-0E040-D3×2iASU50,GSU5#201611

DK. RED M.M.,3Q3

main69227-0E040-E3×2iASU50,GSU5#201611

DARK SHERRY M.M.,4W4

main69227-0E040-F0×2iASU50,GSU5#201312-201611

LT.YELLOW M.M.,5B2

main69227-0E040-G0×2iASU50,GSU5#201312-201611

ALUMINA JADE ME.,6W4

main69227-0E040-J0×2iASU50,GSU5#201312-201611

DK.BLUE MC.,8S6

main69227-0E040-J1×2iASU50,GSU5#201312-201611

GRAYISH BLUE M.M.,8V5

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-0E010-A0iASU50,GSU5#201611

WHITE PEARL CS.,070

main69211-0E010-B0iASU50,GSU5#201312-201611

SILVER ME.,1D6

main69211-0E010-B1iASU50,GSU5#201312-201611

GRAY M.M.,1H1

main69211-0E010-B3iASU50,GSU5#201611

SILVER ME.,1J9

main69211-0E010-C0iASU50,GSU5#201312-201611

ATTITUDE BLACK MC.,218

main69211-0E010-D0iASU50,GSU5#201312-201611

DK.RED M.M.,3T0

main69211-0E010-D3iASU50,GSU5#201611

DK. RED M.M.,3Q3

main69211-0E010-E3iASU50,GSU5#201611

DARK SHERRY M.M.,4W4

main69211-0E010-F0iASU50,GSU5#201312-201611

LT.YELLOW M.M.,5B2

main69211-0E010-G0iASU50,GSU5#201611

ALUMINA JADE ME.,6W4

main69211-0E010-J0iASU50,GSU5#201312-201611

DK.BLUE MC.,8S6

main69211-0E010-J1iASU50,GSU5#201312-201611

GRAYISH BLUE M.M.,8V5

69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)

main69239-0E030×2iASU50,GSU5#201611

main69239-0T010×2iASU50,GSU5#201312-201502

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-0E010-A0iASU50,GSU5#201611

WHITE PEARL CS.,070

main69211-0E010-B0iASU50,GSU5#201312-201611

SILVER ME.,1D6

main69211-0E010-B1iASU50,GSU5#201611

GRAY M.M.,1H1

main69211-0E010-B3iASU50,GSU5#201611

SILVER ME.,1J9

main69211-0E010-C0iASU50,GSU5#201611

ATTITUDE BLACK MC.,218

main69211-0E010-D0iASU50,GSU5#201611

DK.RED M.M.,3T0

main69211-0E010-D3iASU50,GSU5#201611

DK. RED M.M.,3Q3

main69211-0E010-E3iASU50,GSU5#201611

DARK SHERRY M.M.,4W4

main69211-0E010-F0iASU50,GSU5#201312-201611

LT.YELLOW M.M.,5B2

main69211-0E010-G0iASU50,GSU5#201312-201611

ALUMINA JADE ME.,6W4

main69211-0E010-J0iASU50,GSU5#201312-201611

DK.BLUE MC.,8S6

main69211-0E010-J1iASU50,GSU5#201312-201611

GRAYISH BLUE M.M.,8V5

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0E030×2iASU50,GSU5#201312-201502

main69241-0E090×2iASU50,GSU5#201503-201611

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0R011×2iASU50,GSU5#201312-201611

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-08010-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM2#

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-08010-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM2#

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2iASU50,GSU5#201312-201611

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02030×2iASU50,GSU5#201312-201611

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0E050iASU50,GSU5#201611

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0E050iASU50,GSU5#201312-201611

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0E050iASU50,GSU5#201611

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0E050iASU50,GSU5#201611

692370E010RETAINER, DOOR OUTSIDE HANDLE

main69237-0E010

692960T010SCREW, DOOR INSIDE HANDLE

main69296-0T010

9014850003

main90148-50003

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0001

main90167-A0001

9018905003

main90189-05003

30 parts on this diagram · 1 diagram in section
