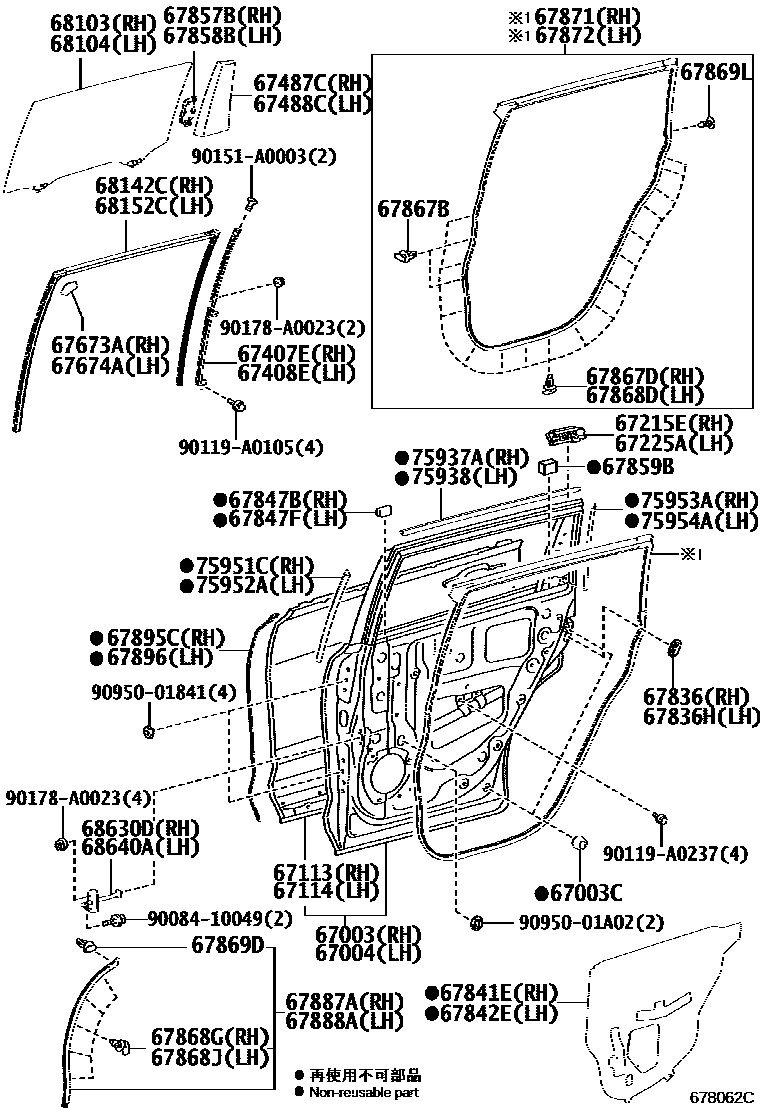

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67215ESTOP, QUARTER WINDOW, UPPER RH
67225ASTOP, QUARTER WINDOW, UPPER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67847FSEAL, REAR DOOR VENT, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67859BCOVER, REAR DOOR LOWER HOLE
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868GRETAINER, DOOR WEATHERSTRIP
67868JRETAINER, DOOR WEATHERSTRIP
67869DCLIP, DOOR WEATHERSTRIP
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=4.0,DARK GRAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=4.0,DARK GRAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75937ATAPE, BLACK OUT, INNER UPPER RH
0 OR 1PIECE,REF.ILL.
75938TAPE, BLACK OUT, INNER UPPER LH
0 OR 1PIECE,REF.ILL.
75951CTAPE, BLACK OUT, INNER FRONT RH
0 OR 1PIECE,REF.ILL.
75952ATAPE, BLACK OUT, INNER FRONT LH
0 OR 1PIECE,REF.ILL.
75953ATAPE, BLACK OUT, INNER REAR RH
0 OR 1PIECE,REF.ILL.
75954ATAPE, BLACK OUT, INNER REAR LH
0 OR 1PIECE,REF.ILL.
9008410049
main90084-10049
90119A0105
main90119-A0105
90119A0237
main90119-A0237
90151A0003
90178A0023
main90178-A0023
9095001841
9095001A02
54 parts on this diagram · 4 diagrams in section
