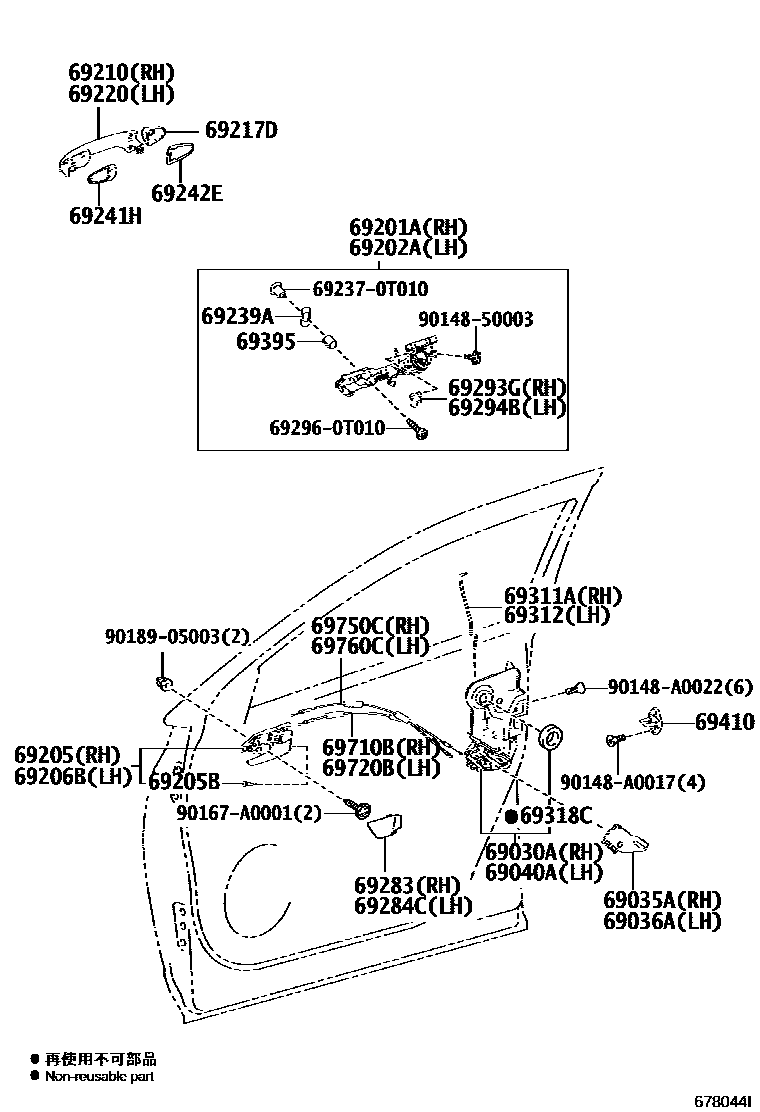

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02550iASU50,GSU55..RUS201312-201611

main69030-0E020iGSU5#..ARL201312-201611

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02030iASU50,GSU5#201611

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02030iASU50,GSU5#201611

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02520iASU50,GSU55..RUS201312-201611

main69040-0E020iGSU5#..ARL201611

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0E070iASU50,GSU5#201312-201502

main69201-0E071iASU50,GSU5#201611-201808

main69201-0E110iASU50,GSU5#201809

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0E070iASU50,GSU5#201312-201502

main69202-0E071iASU50,GSU5#201611-201808

main69202-0E100iASU50,GSU5#201809

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0E030-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#

main69205-0R030-C0iASU50,GSU5#..LE201312-201611

BLACK,TRIM2#

sub69205-04030

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005×2iASU50,GSU5#201611

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0E030-C0iASU50,GSU5#..LIMD201312-201611

BLACK,TRIM0#,2#

main69206-0R030-C0iASU50,GSU5#..LE201312-201611

BLACK,TRIM2#

sub69206-04030

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0E080-A0supersedes 69211-0E010-A0iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

LEATHER PACKAGE,WHITE PEARL CS.,070

main69210-0E080-B0supersedes 69211-0E010-B0iASU50,GSU5#..LIMD201312-201611

SILVER ME.,1D6

main69210-0E080-B1supersedes 69211-0E010-B1iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,GRAY M.M.,1H1

main69210-0E080-B3supersedes 69211-0E010-B3iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

LEATHER PACKAGE,SILVER ME.,1J9

main69210-0E080-C0supersedes 69211-0E010-C0iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

ATTITUDE BLACK MC.,218

main69210-0E080-D0supersedes 69211-0E010-D0iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,DK.RED M.M.,3T0

main69210-0E080-D3supersedes 69211-0E010-D3iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

LEATHER PACKAGE,DK. RED M.M.,3Q3

main69210-0E080-E3supersedes 69211-0E010-E3iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

DARK SHERRY M.M.,4W4

main69210-0E080-F0supersedes 69211-0E010-F0iASU50,GSU5#..LIMD201312-201611

LT.YELLOW M.M.,5B2

main69210-0E080-G0supersedes 69211-0E010-G0iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,ALUMINA JADE ME.,6W4

main69210-0E080-J0supersedes 69211-0E010-J0iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,DK.BLUE MC.,8S6

main69210-0E080-J1supersedes 69211-0E010-J1iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,GRAYISH BLUE M.M.,8V5

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0E030-A0iASU50,GSU5#201611

WHITE PEARL CS.,070,DRIVER SIDE

main69217-0E030-B0iASU50,GSU5#201312-201611

SILVER ME.,1D6,DRIVER SIDE

main69217-0E030-B1iASU50,GSU5#201611

GRAY M.M.,1H1,DRIVER SIDE

main69217-0E030-B3iASU50,GSU5#201611

SILVER ME.,1J9,DRIVER SIDE

main69217-0E030-C0iASU50,GSU5#201312-201611

ATTITUDE BLACK MC.,218,DRIVER SIDE

main69217-0E030-D0iASU50,GSU5#201611

DK.RED M.M.,3T0,DRIVER SIDE

main69217-0E030-D3iASU50,GSU5#201611

DK. RED M.M.,3Q3,DRIVER SIDE

main69217-0E030-E3iASU50,GSU5#201611

DARK SHERRY M.M.,4W4,DRIVER SIDE

main69217-0E030-F0iASU50,GSU5#201312-201611

LT.YELLOW M.M.,5B2,DRIVER SIDE

main69217-0E030-G0iASU50,GSU5#201312-201611

ALUMINA JADE ME.,6W4,DRIVER SIDE

main69217-0E030-J0iASU50,GSU5#201312-201611

DK.BLUE MC.,8S6,DRIVER SIDE

main69217-0E030-J1iASU50,GSU5#201611

GRAYISH BLUE M.M.,8V5,DRIVER SIDE

main69217-0E040-A0iASU50,GSU5#201611

WHITE PEARL CS.,070,PASSENER SIDE

main69217-0E040-B0iASU50,GSU5#201312-201611

SILVER ME.,1D6,PASSENER SIDE

main69217-0E040-B1iASU50,GSU5#201611

GRAY M.M.,1H1,PASSENER SIDE

main69217-0E040-B3iASU50,GSU5#201611

SILVER ME.,1J9,PASSENER SIDE

main69217-0E040-C0iASU50,GSU5#201611

ATTITUDE BLACK MC.,218,PASSENER SIDE

main69217-0E040-D0iASU50,GSU5#201611

DK.RED M.M.,3T0,PASSENER SIDE

main69217-0E040-D3iASU50,GSU5#201611

DK. RED M.M.,3Q3,PASSENER SIDE

main69217-0E040-E3iASU50,GSU5#201611

DARK SHERRY M.M.,4W4,PASSENER SIDE

main69217-0E040-F0iASU50,GSU5#201312-201611

LT.YELLOW M.M.,5B2,PASSENER SIDE

main69217-0E040-G0iASU50,GSU5#201312-201611

ALUMINA JADE ME.,6W4,PASSENER SIDE

main69217-0E040-J0iASU50,GSU5#201312-201611

DK.BLUE MC.,8S6,PASSENER SIDE

main69217-0E040-J1iASU50,GSU5#201611

GRAYISH BLUE M.M.,8V5,PASSENER SIDE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0E080-A0supersedes 69211-0E010-A0iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,WHITE PEARL CS.,070

main69210-0E080-B0supersedes 69211-0E010-B0iASU50,GSU5#..LIMD201312-201611

SILVER ME.,1D6

main69210-0E080-B1supersedes 69211-0E010-B1iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,GRAY M.M.,1H1

main69210-0E080-B3supersedes 69211-0E010-B3iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

LEATHER PACKAGE,SILVER ME.,1J9

main69210-0E080-C0supersedes 69211-0E010-C0iASU50,GSU5#..LIMD201312-201611

ATTITUDE BLACK MC.,218

main69210-0E080-D0supersedes 69211-0E010-D0iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,DK.RED M.M.,3T0

main69210-0E080-D3supersedes 69211-0E010-D3iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

LEATHER PACKAGE,DK. RED M.M.,3Q3

main69210-0E080-E3supersedes 69211-0E010-E3iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

DARK SHERRY M.M.,4W4

main69210-0E080-F0supersedes 69211-0E010-F0iASU50,GSU5#..LIMD201312-201611

LT.YELLOW M.M.,5B2

main69210-0E080-G0supersedes 69211-0E010-G0iGSU55..LE..RUS;ASU50,GSU5#..LIMD201611

LEATHER PACKAGE,ALUMINA JADE ME.,6W4

main69210-0E080-J0supersedes 69211-0E010-J0iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,DK.BLUE MC.,8S6

main69210-0E080-J1supersedes 69211-0E010-J1iASU50,GSU5#..LIMD201312-201611

LEATHER PACKAGE,GRAYISH BLUE M.M.,8V5

69239ASTOPPER, FRONT DOOR OUTSIDE HANDLE

main69239-0E020×2iASU50,GSU5#201312-201503

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0E030×2iASU50,GSU5#201312-201502

main69241-0E090×2iASU50,GSU5#201503-201611

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0R011×2iASU50,GSU5#201611

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-08010-C0iASU50,GSU5#..LIMD201312-201611

BLACK,TRIM0#,2#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-08010-C0iASU50,GSU5#..LIMD201611

BLACK,TRIM0#,2#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iASU50,GSU5#201312-201611

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iASU50,GSU5#201312-201611

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0E050iASU50,GSU5#201312-201611

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0E040iASU50,GSU5#201312-201611

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2iASU50,GSU5#201312-201611

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-0E010×2iASU50,GSU5#201312-201502

main69239-0E030×2iASU50,GSU5#201503-201611

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02030×2iASU50,GSU5#201312-201611

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0E050iASU50,GSU5#201611

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0E050iASU50,GSU5#201312-201611

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0E050iASU50,GSU5#201312-201611

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0E050iASU50,GSU5#201312-201611

692370T010RETAINER, DOOR OUTSIDE HANDLE

main69237-0T010

692960T010SCREW, DOOR INSIDE HANDLE

main69296-0T010

9014850003

main90148-50003

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0001

main90167-A0001

9018905003

main90189-05003
