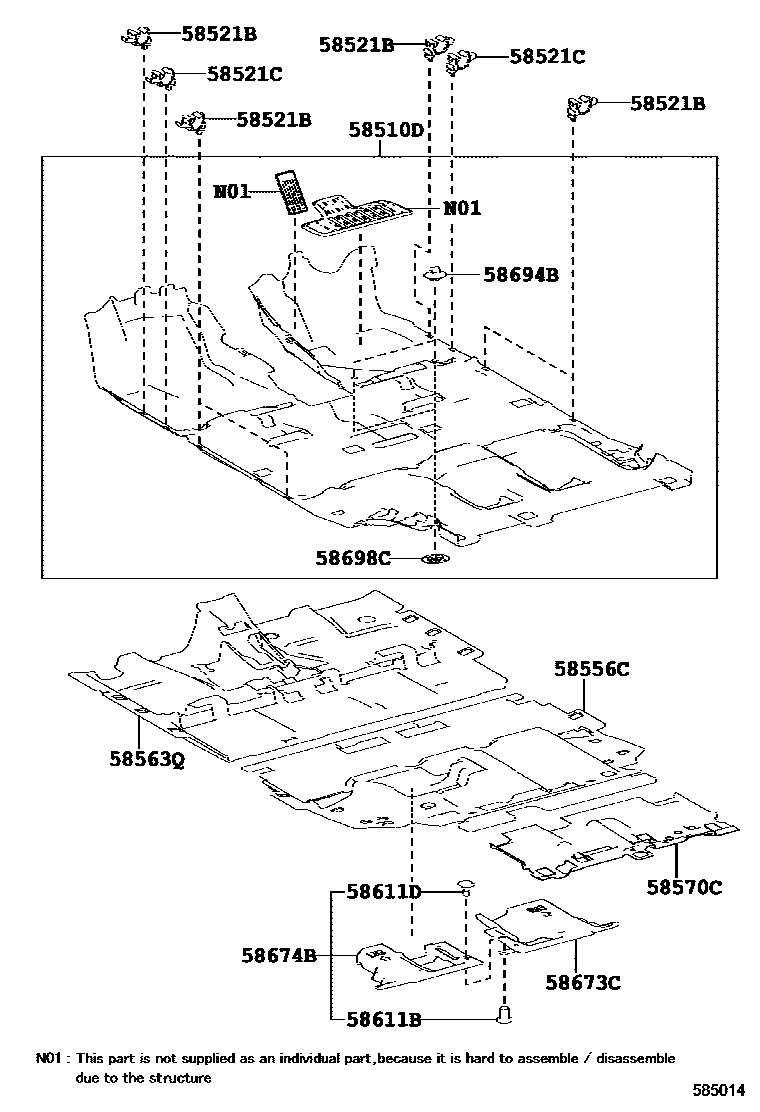

MAT & CARPET
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58521CHOOK, FLOOR CARPET NO.2
58556CSILENCER, REAR FLOOR
58563QSILENCER, FRONT FLOOR, NO.3
58570CCARPET ASSY, REAR FLOOR
58611BPLATE, MAT SET, NO.1
58611DPLATE, MAT SET, NO.1 B
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
12 parts on this diagram · 2 diagrams in section
